Запчасти Case 700 (14) - TRACKS - TRACK ADJUSTING CYLINDER - IDLERS

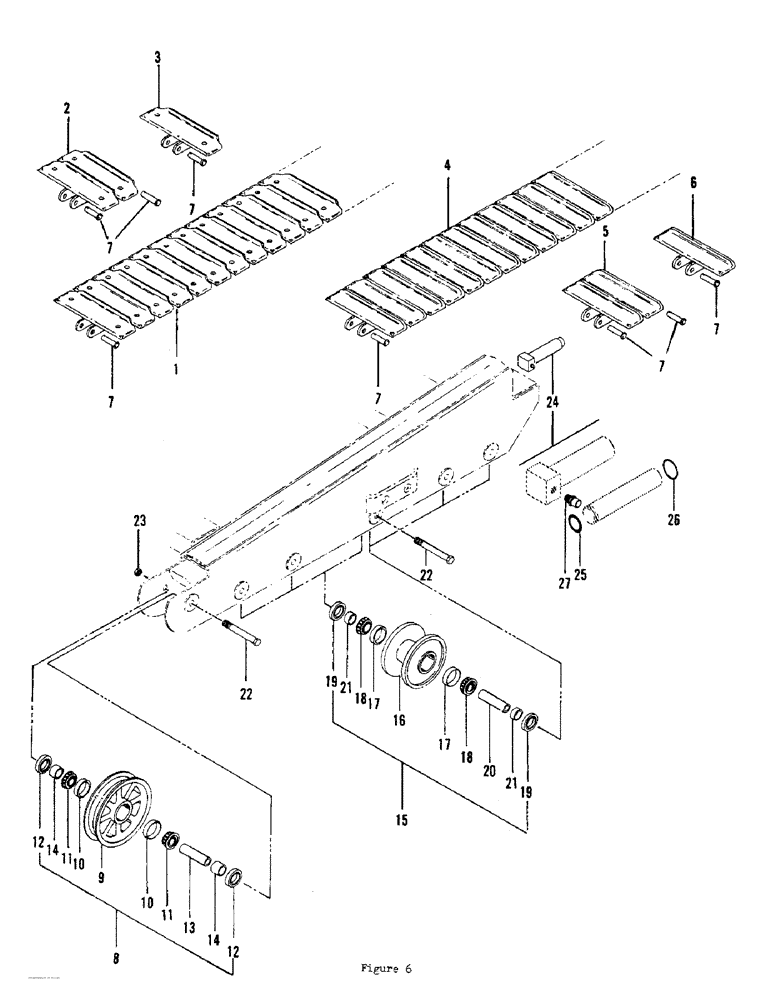

Схема запчастей Case 700 - (14) - TRACKS - TRACK ADJUSTING CYLINDER - IDLERS

Артикул

Название

Примечание

Количество

1

H545152

SHOE (ASSY)

TRACK ASM - 10" cleat (Ser. #3715 & up)

2шт.

1

H522888

ASSEMBLY

TRACK ASM - 10" cleat (Up to ser. #3715)

2шт.

2

H545186

SHOE (ASSY)

REPAIR SECTION - 10" cleat (Ser. #3715 & up)

1шт.

2

H524876

ROLLER, TRACK

REPAIR SECTION - 10" cleat (Up to ser. #3715)

1шт.

3

H551580

PACKAGE

HALF LINK - 10" cleat (Ser. #3715 & up)

1шт.

3

H543074

HALF-LINK

HALF LINK - 10" cleat (Up to ser. #3715)

1шт.

4

H545111

TRACK CHAIN

TRACK ASM - 10" street pads (Ser. #3715 & up)

2шт.

4

H522839

ASSEMBLY

TRACK ASM - 10" street pads (Up to ser. #3715)

2шт.

5

H545145

SHOE (ASSY)

REPAIR SECTION - 10" street pads (Ser. #3715 & up)

1шт.

5

H524884

ACCESSORIES

REPAIR SECTION - 10" street pads (Up to ser. #3715)

1шт.

6

H551572

ANCHOR

HALF LINK - 10" street pads (Ser. #3715 & up)

1шт.

6

H543074

HALF-LINK

HALF LINK - 10" street pads (Up to ser. #3715)

1шт.

7

H148676

LARGE PIN

CONNECTOR PIN (Ser. #3715 & up)

1шт.

7

H100677

AXLE PIN

CONNECTOR PIN (Up to ser. #3715)

1шт.

8

H522912

ROLLER

TRACK ROLLER ASM - front, Includes: Ref. 9 - 14

2шт.

9

H48363

ROLLER

TRACK ROLLER ASM - front

1шт.

10

D29266

ROLLER BEARING,1" ID x 0.58"

CONE - bearing

2шт.

11

D29267

BEARING CUP,1.98" OD x 0.42"

CUP - bearing

2шт.

12

H749077

OIL SEAL

- oil

2шт.

13

H89631

BEARING

SHAFT - bearing

1шт.

14

H89656

SLEEVE

- seal seat

2шт.

15

H550475

ROLLER

TRACK ROLLER ASM, Includes: Ref. 16 - 21

10шт.

16

H168013

ROLLER

TRACK ROLLER ASM

1шт.

17

D29266

ROLLER BEARING,1" ID x 0.58"

CONE - bearing

2шт.

18

D29267

BEARING CUP,1.98" OD x 0.42"

CUP - bearing

2шт.

19

H749077

OIL SEAL

- oil

2шт.

20

H89631

BEARING

SHAFT - bearing

1шт.

21

H89664

SLEEVE CYLINDER

SLEEVE - seal seat

2шт.

22

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

HHCS (5/8 x 5 NC)

12шт.

23

131-1130

LOCK NUT,5/8"-11, GA

NUT (5/8 NC hex - lock)

12шт.

24

H563254

ADJUSTER

TRACK ADJUSTING CYL. ASM, Includes: Ref. 25 - 27

2шт.

25

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

26

R15365

O-RING,0.989" ID x 1.129" OD x 0.07"

1шт.

27

219-66

LUBE NIPPLE,1/8"-27 NPT, Dustproof

GREASE FITTING

1шт.

Выбрано товаров: 34
