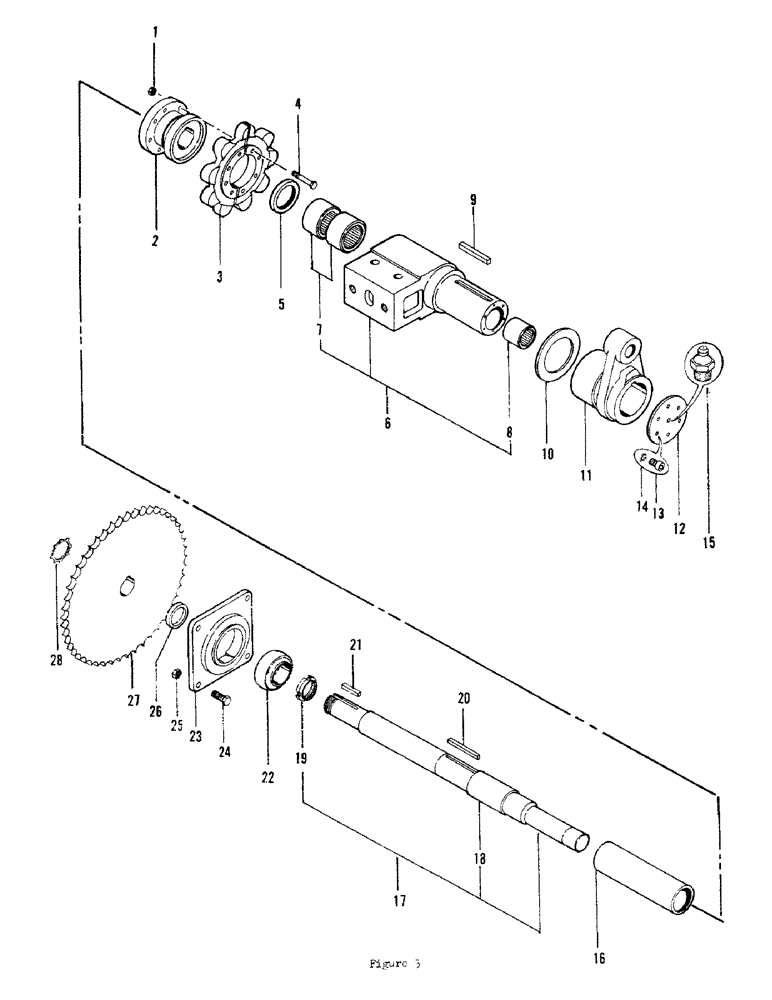

Запчасти Case 700 (08) - DIGGING CHAIN DRIVE - BOOM MOUNTING CASTING

1

131-1133

NUT,3/8"-24, GC

NUT (3/8 NF hex - grade C)

8шт.

2

H114025

HUB CAP

HUB - sprocket

1шт.

3

H148569

DRIVE SPROCKET

SPLIT SPROCKET (Set only)

1шт.

4

114-255

BOLT,Hex, 3/8" - 24 x 2-1/4", Gr 8

Hex, 3/8"-24 x 2 1/4", G8

8шт.

5

A39273

OIL SEAL

GREASE SEAL

1шт.

6

H531343

PIVOT

BOOM MOUNTING ASM, Includes: Ref. 7 and 8

1шт.

7

S101541

BEARING

2шт.

8

H748194

BEARING

(Replaces A13019)

1шт.

9

H115808

KEY

(1/2 sq x 4-1/4)

1шт.

10

H114090

HARDWARE

WASHER - thrust

1шт.

11

H114009

BOOM

CASTING - boom crank

1шт.

12

H114124

CYLINDER END CAP

PLATE - cap

1шт.

13

61-410

HEX SOC SCREW,1/4"-20 x 5/8"

SCREW (1/4 x 5/8 NC - Allen hd)

6шт.

14

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING

1шт.

16

H114082

SPACER

1шт.

17

H530568

SHAFT

ASM, Includes: Ref. 18 and 19

1шт.

18

H114066

SLEEVE CYLINDER

SLEEVE

1шт.

19

131-1036

BEARING LOCK NUT,Bearing, 1.7717" Bore

NUT - spkt retainer

1шт.

20

H115816

KEY

(1/2 sq x 3-1/4)

1шт.

21

H90829

KEY

(1/2 sq x 2-1/16)

1шт.

22

H747410

BEARING,45 mm ID x 85 mm OD x 30 mm

1шт.

23

H114157

CYLINDER END CAP

BLOCK - bearing

1шт.

24

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

25

131-1182

LOCK NUT,1/2"-13, GA

NUT (1/2 NC hex - lock)

4шт.

26

H114074

SPACER

1шт.

27

H114132

DRIVE SPROCKET

SPROCKET

1шт.

28

192-309

BEARING WASHER,Type W-09

WASHER - lock

1шт.
