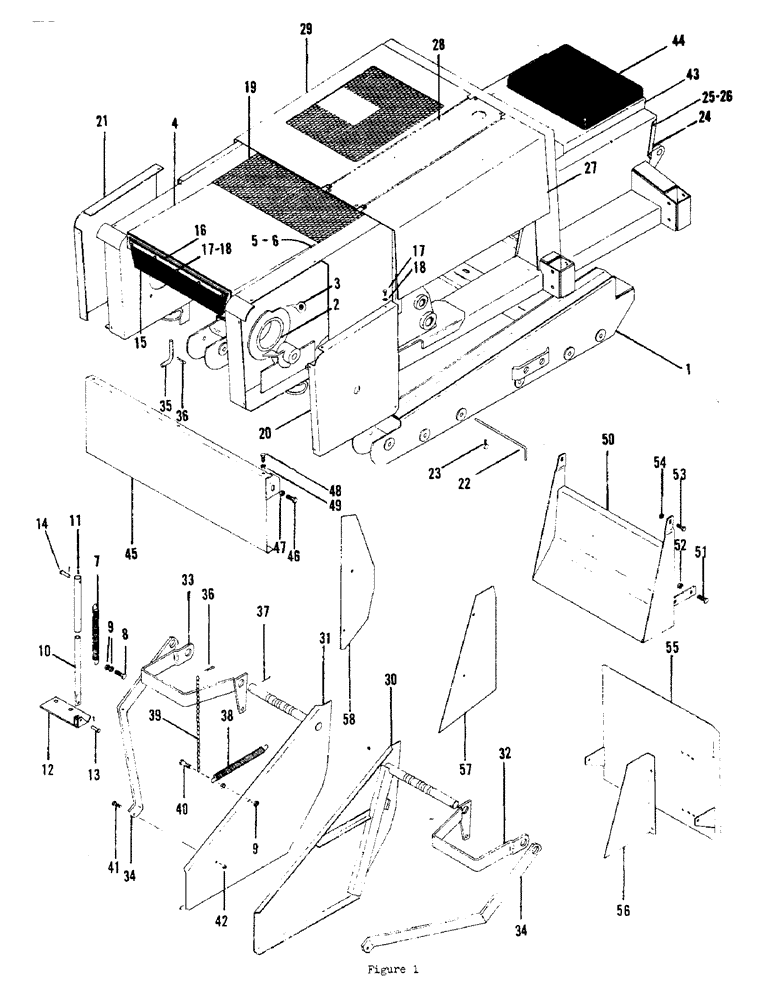

Запчасти Case 700 (04) - MAIN FRAME - DIRT CHUTES

1

H564179

MAIN FRAME ASM - Wisc VH4D engine, Includes: Ref. 2 and 3

1шт.

1

H561423

MAIN FRAME ASM - Deutz F2L-912 engine, Includes: Ref. 2 and 3

1шт.

1

H551168

MAIN FRAME ASM - Slanzi 13 engine, Includes: Ref. 2 and 3

1шт.

1

H537415

MAIN FRAME ASM - Lister HB2 engine, Includes: Ref. 2 and 3

1шт.

1

H604678

MAIN FRAME ASM - Diter D325-2 engine, Includes: Ref. 2 and 3

1шт.

2

H36905

BUSHING

- boom casting

1шт.

3

83-88

SET SCREW,Hex Soc, 1/2"-13 x 1/2"

SCREW (1/2 x 1/2 NC - cup point) (Bushing retainer)

1шт.

4

H530923

DEFLECTOR

DIRT DEFLECTOR

1шт.

5

H51946

SHAFT

- dirt deflector

1шт.

6

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

4шт.

7

H32946

VALVE SPRING

SPRING - deflector return

1шт.

8

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

9

129-145

JAM NUT,Jam, 1/2"-13, G5

6шт.

10

H115139

TUBE,0.312" OD x 12.375" L

- lift

1шт.

11

H68577

TUBE,10" L

GUIDE TUBE - def. lift

1шт.

12

H530915

BRACKET

MOUNTING BRACKET - lift tube

1шт.

13

H25957

CLEVIS COUPLING

PIN (3/8 x 1-3/32 - clevis)

1шт.

14

H32284

AXLE PIN

PIN (3/8 x 1-19/32 - clevis)

1шт.

15

H68825

FLAP

- dirt deflector

1шт.

16

H62539

ROD

DOUBLER STRAP

1шт.

17

187-1069

SELF-TAP SCREW,5/16" - 18 x 3/4"

SCREW (5/16 x 3/4 self tap)

1шт.

18

195-521

WASHER,5/16", SAE

(3/8 - flat)

1шт.

19

H247130

GRILL - front cover

1шт.

20

H114793

COVER PANEL - left

1шт.

21

H114801

COVER PANEL - right

1шт.

22

H32755

LINE GUIDE INDICATOR

1шт.

23

H65847

THUMB SCREW,5/16" - 18 x 3/4"

THUMB SCREW

1шт.

24

H98863

BACK COVER PANEL (w/o backhoe)

1шт.

25

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

26

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT (5/16 NC hex - lock)

4шт.

27

H531590

HOOD ASM - left - Slanzi 13 & Wisc VH4D engines

1шт.

27

H562751

HOOD ASM - left - Deutz F2L-912 engine

1шт.

27

H537662

HOOD ASM - left - Lister HB2 engine

1шт.

27

H562751

HOOD ASM - left - Diter D325-2 engine

1шт.

28

H532200

HOOD - center section - Slanzi 13 & Wisc VH4D engine

1шт.

28

H617936

HOOD - center section - Lister HB2 & Deutz F2L-912 engines

1шт.

28

H551853

HOOD

- center section - Diter HB2 engine

1шт.

29

H531582

HOOD ASM - right - Slanzi 13 & Wisc VH4D engines

1шт.

29

H562744

HOOD ASM - right - Deutz F2L-912 engine

1шт.

29

H132050

HOOD ASM - right - Lister HB2 engine

1шт.

29

H604660

HOOD ASM - right - Diter 325-2 engine

1шт.

30

H562819

GUARD ASSY.

DIRT CHUTE SIDE - left

1шт.

31

H562827

SIDE ASSY.

DIRT CHUTE SIDE - right

1шт.

32

H511279

LEVER

SPRING LEVER ASM - left

1шт.

33

H511287

VALVE SPRING

SPRING LEVER ASM - right

1шт.

34

H72280

BRACE

- dirt chute

2шт.

35

H50906

AXLE PIN

PIN - dirt chute retainer

2шт.

36

A70250

PIN

HAIR PIN

4шт.

37

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

2шт.

38

H54338

VALVE SPRING

SPRING - dirt chute left

2шт.

39

H54403

CHAIN (AG)

CHAIN - dirt chute left

2шт.

40

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

41

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

42

230-4216

LOCK NUT,3/8"-16, GA

NUT (3/8 NC hex - lock)

2шт.

43

H521732

SEAT

MOUNTING BRACKET

1шт.

44

H501288

SEAT

CUSHION

1шт.

45

LOWER AUGER BACK PLATE (Order from equipment price list), Includes: Ref. 46 - 49

1шт.

46

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

47

131-1182

LOCK NUT,1/2"-13, GA

NUT (1/2 NC hex - lock)

4шт.

48

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

49

230-4216

LOCK NUT,3/8"-16, GA

NUT (3/8 NC hex - lock)

3шт.

50

CONVEYOR DIRT BACKUP PLATE (Order from equipment price list), Includes: Ref. 51 - 54

1шт.

51

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

52

131-1182

LOCK NUT,1/2"-13, GA

NUT (1/2 NC hex - lock)

4шт.

53

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

54

230-4216

LOCK NUT,3/8"-16, GA

NUT (3/8 NC hex - lock)

2шт.

55

H523837

UPPER BACK PLATE (Used with augers)

1шт.

56

H69237

AUXILIARY CHUTE SIDE (Used with augers)

1шт.

57

H68601

DIRT CHUTE EXT (Used without backfill blade)

1шт.

58

H68593

DIRT CHUTE EXT (Used with backfill blade)

1шт.
