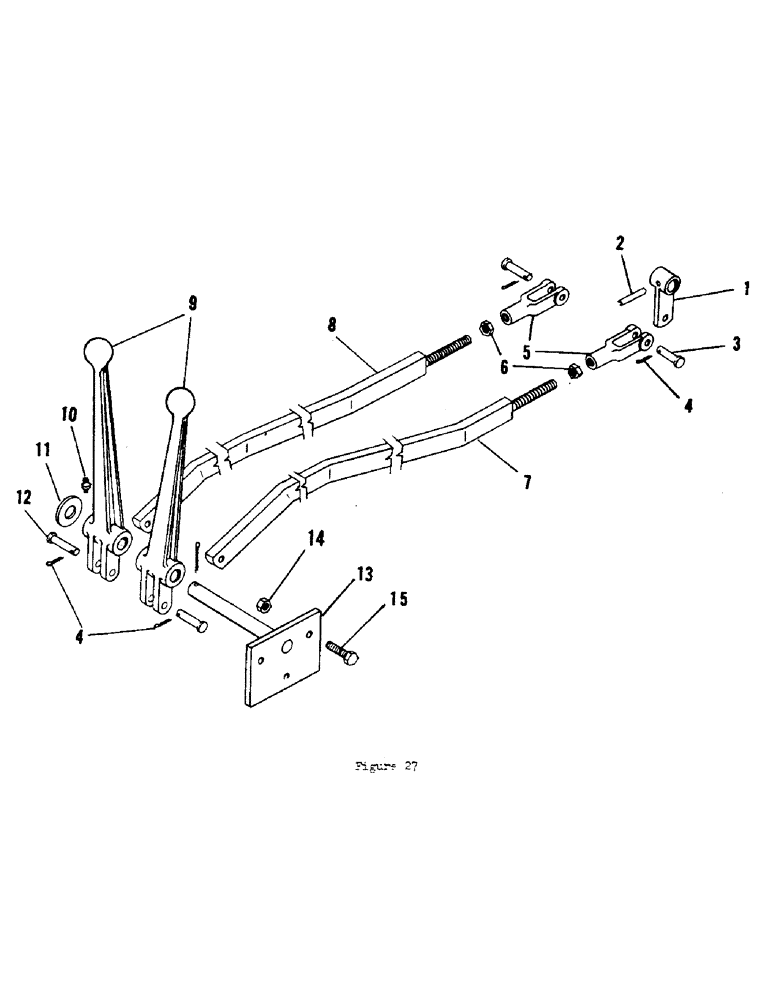

Запчасти Case 700 (56) - DUAL UP - FRONT CONTROLS

1

H526137

LEVER

LINK - shaft lever

1шт.

2

138-132

LOCK PIN,1/4" x 7/8", Slotted

PIN, 1/4" x 7/8", Slotted

1шт.

3

H44206

CLEVIS COUPLING,7.94mm OD x 27.78mm L

CLEVIS PIN (5/16" x 1")

2шт.

4

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

4шт.

5

H44198

YOKE

CLEVIS END (5/16")

2шт.

6

129-122

NUT,5/16"-24, G5

2шт.

7

H533133

LINK ASSY.

LEVER LINK - outside

1шт.

8

H533141

LINK ASSY.

LEVER LINK - inside

1шт.

9

H44503

LEVER

CONTROL LEVER

2шт.

10

219-410

LUBE NIPPLE,3/16" NPTF

2шт.

11

195-541

WASHER,5/8", SAE

(5/8" flat)

1шт.

12

H44289

CLEVIS COUPLING

CLEVIS PIN (5/16" x 1-1/8)

1шт.

13

H533125

SHAFT

PIVOT SHAFT

1шт.

14

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT (5/16" NC - lock)

1шт.

15

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.
