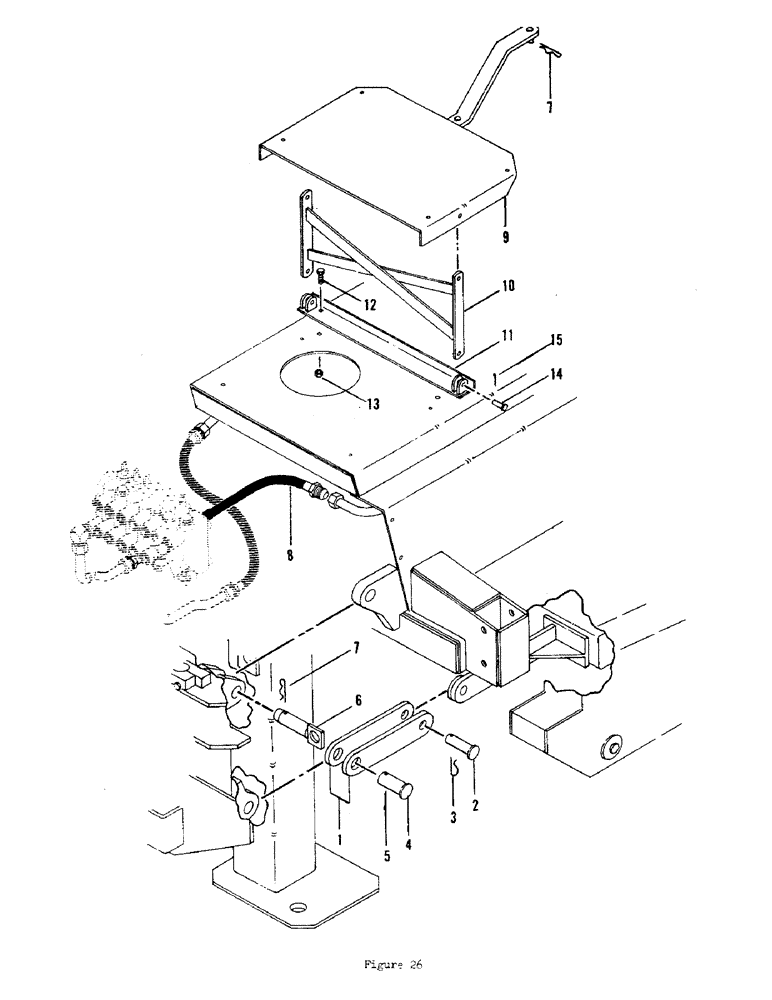

Запчасти Case 700 (54) - D-100 BACKHOE ATTACHING KIT

1

H93294

DRAG LINK

LINK - backhoe attaching

4шт.

2

H30262

AXLE PIN

PIN (3/4 x 2-3/16 - clevis)

2шт.

3

H60624

AXLE PIN

HAIRPIN

2шт.

4

H65003

AXLE PIN

PIN (1" x 2" - clevis)

2шт.

5

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

2шт.

6

H513622

AXLE PIN

PIN - upper mounting

2шт.

7

A70250

PIN

HAIRPIN

3шт.

8

H263285

HOSE ASSY.

HOSE (1/2 x 17 - 7/8 JIC M)

1шт.

9

H524090

SWING SEAT BRACKET

1шт.

10

H524108

SWING GATE

1шт.

11

H524116

GATE BRACKET

1шт.

12

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

13

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT (5/16 NC hex - lock)

2шт.

14

H44206

CLEVIS COUPLING,7.94mm OD x 27.78mm L

PIN (5/16 x 1 - clevis)

4шт.

15

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

4шт.
