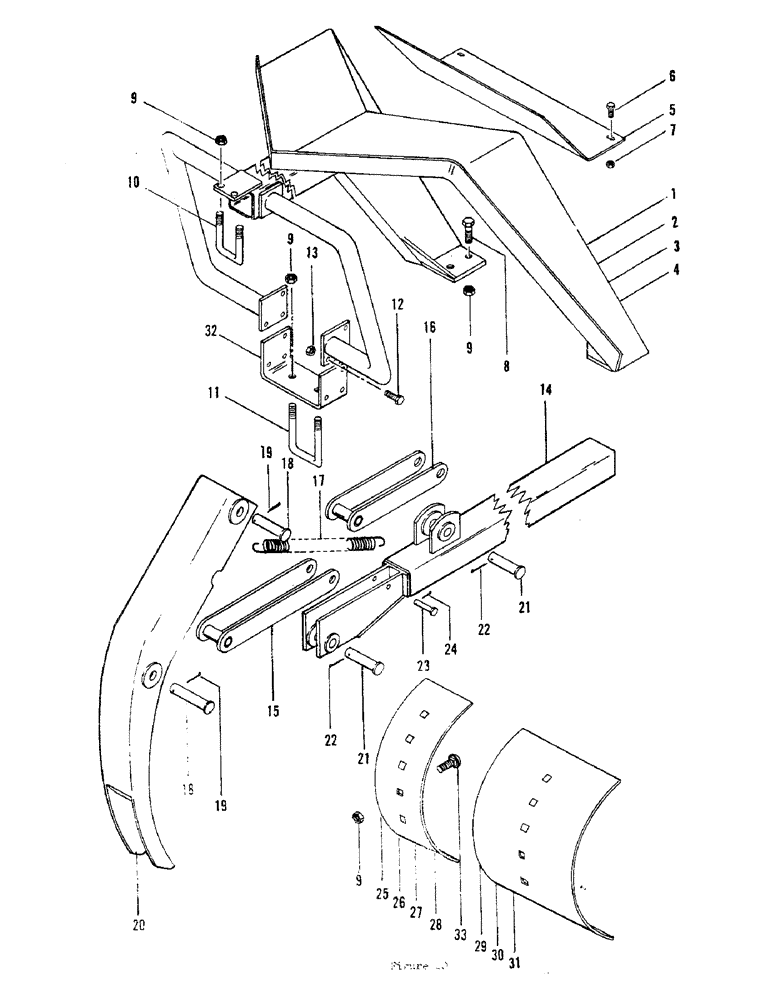

Запчасти Case 700 (42) - CRUMBER ATTACHMENT

1

H538538

BOOM

UPPER CRUMBER BOOM (3 ft. & 4 ft. sprocket boom)

1шт.

2

H532382

BOOM

UPPER CRUMBER BOOM (5 ft. & 6 ft. sprocket boom)

1шт.

3

H615047

UPPER CRUMBER BOOM (3 ft. & 4 ft. channel boom)

1шт.

4

H615039

UPPER CRUMBER BOOM (5 ft. & 6 ft. channel boom)

1шт.

5

H120501

DEFLECTOR

PLATE - deflector

1шт.

6

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

7

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT (5/16 NC hex - lock)

2шт.

8

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

9

131-1182

LOCK NUT,1/2"-13, GA

NUT (1/2 NC hex - lock)

10шт.

10

H54312

BOLT

U BOLT

1шт.

11

H117614

HARDWARE

U BOLT

1шт.

12

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

6шт.

13

230-4216

LOCK NUT,3/8"-16, GA

NUT (3/8 NC - hex - lock)

6шт.

14

H538553

BOOM

OUTER CRUMBER BOOM

1шт.

15

H536664

DRAG LINK

LINK - long

1шт.

16

H532440

DRAG LINK

LINK - short

1шт.

17

H128280

VALVE SPRING

SPRING

1шт.

18

H118109

AXLE PIN,19.05mm OD x 92.08mm L

PIN (3/4 x 3-5/8 - clevis)

2шт.

19

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

2шт.

20

H536656

BRACKET

- crumber blade

1шт.

21

H54320

AXLE PIN,19.05mm OD x 79.38mm L

PIN (3/4 x 2-7/8 - clevis)

2шт.

22

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

2шт.

23

H54395

AXLE PIN,9.47mm OD x 60.33mm L

PIN (3/8 x 2-1/4 - clevis)

1шт.

24

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

25

H127480

BLADE

(5" for 6" trench)

1шт.

26

H60087

BLADE

(7" for 8" trench)

1шт.

27

H60103

BLADE

(9" for 10" trench)

1шт.

28

H60129

BLADE

(11" for 12" trench)

1шт.

29

H60145

BLADE

(13" for 14" trench)

1шт.

30

H60160

BLADE

(15" for 16" trench)

1шт.

31

H60186

BLADE

(17" for 18" trench)

1шт.

32

H117887

CHANNEL

- crumber support

1шт.

33

111-520

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G2

BOLT (1/2 x 1-1/4 carr)

2шт.
