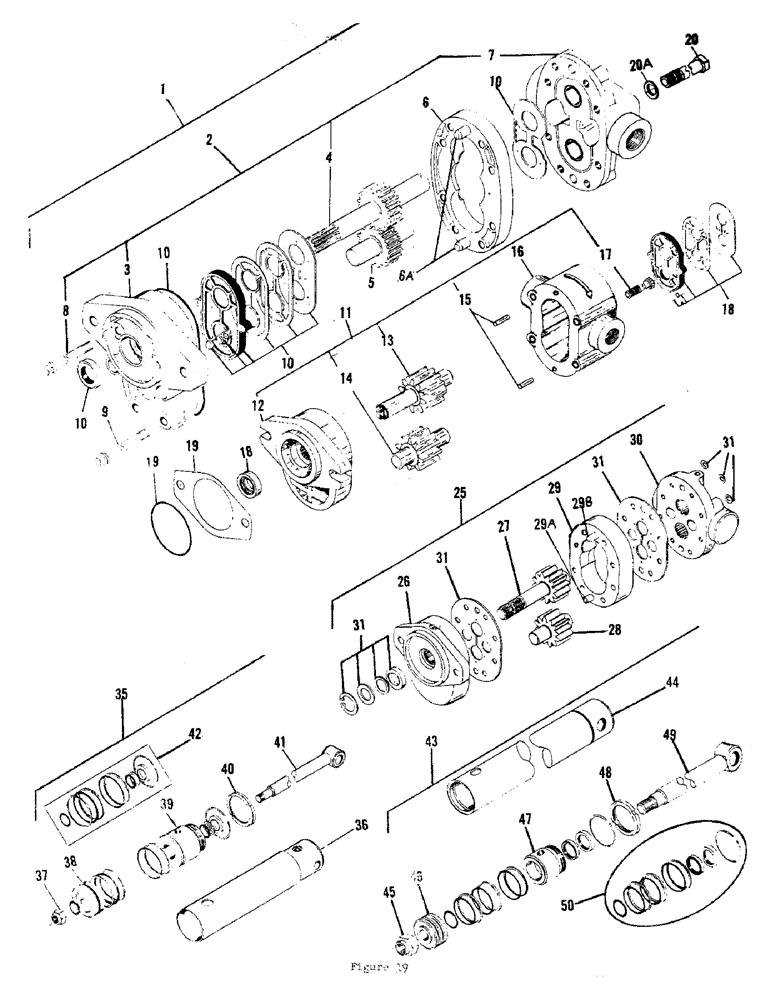

Запчасти Case 700 (40) - HYDRAULIC PUMP - BOOM AND BLADE CYLINDER - PROPULSION MOTOR ASSEBLY

1

H567776

PUMP

TANDEM PUMP ASM (Serial #6001 & up), Includes: Ref. 2 - 20A

1шт.

2

H565572

PUMP

LARGE PUMP ASM, Includes: Ref. 3 - 10

1шт.

3

D48879

COVER

FRONT PLATE ASM

1шт.

4

H565846

SHAFT

DRIVE SHAFT ASM

1шт.

5

H565853

GEAR WHEEL

IDLER SHAFT ASM

1шт.

6

H210724

BODY

1шт.

6a

H754325

DOWEL

2шт.

7

H582627

PLATE ASSY.

BACK PLATE ASM

1шт.

8

166-52

12 PT SCREW,Flg, 3/8" - 16 x 2 3/4", Gr 8

CAP SCREW (3/8" x 2-3/8" - 12 point)

4шт.

9

H162768

SCREW

CAP SCREW (3/8" x 2-1/2" - 12 point)

4шт.

10

D59656

GASKET KIT

SEAL REPAIR KIT

1шт.

11

H567784

PUMP

SMALL PUMP ASM, Includes: Ref. 12 - 18

1шт.

12

H218339

PLATE ASSY.

FRONT PLATE ASM

1шт.

13

H162776

GEAR

DRIVE GEAR ASM

1шт.

14

H162784

DRIVE SPROCKET

IDLER GEAR ASM

1шт.

15

FH730804

DOWEL

2шт.

16

H218370

PLATE ASSY.

BACK PLATE ASM

1шт.

17

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

4шт.

18

H218388

SEAL ASSY.

SEAL REPAIR KIT

1шт.

19

H162818

GASKET

(Replaced by H7449790 ring on some pumps)

1шт.

20

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

CAP SCREW (3/8" x 1" NC)

2шт.

20a

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

25

H523720

MOTOR HOUSING

PROPULSION MOTOR ASM, Includes: Ref. 26 - 31

1шт.

26

H103002

PLATE ASSY.

FRONT PLATE ASM

1шт.

27

H97873

GEAR WHEEL

DRIVE GEAR ASM

1шт.

28

H97881

GEAR WHEEL

IDLER GEAR ASM

1шт.

29

H215616

BODY

1шт.

29a

H754671

DOWEL

PIN (5/16" x 1-7/8")

1шт.

29b

H219576

DOWEL

DRAIN DOWEL

1шт.

30

H501494

PLATE ASSY.

BACK PLATE ASM

1шт.

31

H97899

SEAL

REPAIR KIT

1шт.

35

H505628

CYLINDER BLOCK

DOZER CYLINDER ASM, Includes: Ref. 36 - 42

1шт.

36

H150953

CYLINDER

BARREL ASM

1шт.

37

131-172

LOCK NUT,3/4"-16, GA

NUT - piston bearing

1шт.

38

A35897

PISTON ASSY.

PISTON

1шт.

39

H70078

BEARING

1шт.

40

T22283

NUT

- bearing

1шт.

41

H57901

SHAFT

ROD - piston

1шт.

42

H507350

GASKET KIT

SEAL REPAIR KIT

1шт.

43

H530519

CYLINDER BLOCK

BOOM CYLINDER ASM, Includes: Ref. 44 - 50

1шт.

44

H122218

SLEEVE CYLINDER

BARREL ASM

1шт.

45

131-1141

LOCK NUT,1 1/8" - 12, Gr A

NUT - piston retaining

1шт.

46

H120147

PISTON ASSY.

PISTON

1шт.

47

H120360

BEARING

1шт.

48

H745794

BEARING LOCK NUT

BEARING NUT

1шт.

49

H122226

ROD

PISTON ROD

1шт.

50

H122234

SEAL ASSY.

SEAL REPAIR KIT

1шт.
