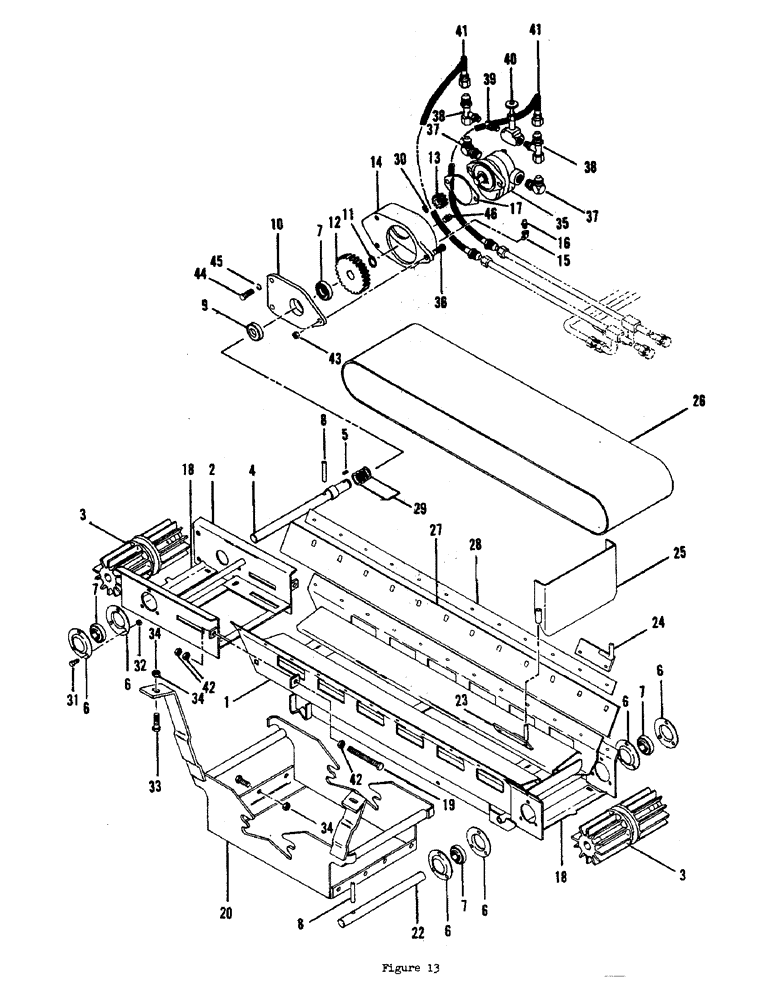

Запчасти Case 700 (28) - CONVEYOR ASSEMBLY

1

H515338

CONVEYOR FRAME ASM

1шт.

2

H510503

FUNNEL

CONVEYOR END ASM

1шт.

3

H53868

ROLLER

- conveyor

2шт.

4

H48439

SHAFT

- roller drive

1шт.

5

H98301

SHIM

KEY (1/4 sq x 11/16)

1шт.

6

B18282

FLANGE

RETAINER - bearing

6шт.

7

H757708

BEARING

4шт.

8

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, 3/8" x 2 1/2", Slotted

2шт.

9

H749077

OIL SEAL

OIL SEAL

1шт.

10

H591388

WASHER

PLATE - bearing

1шт.

11

B18208

SNAP RING,#100, Ext

1шт.

12

H48579

GEAR WHEEL

GEAR - driven

1шт.

13

H48561

GEAR WHEEL

GEAR - driven

1шт.

14

H48413

CASE

- gear reduction

1шт.

15

H62232

ELBOW UNION

ST ELL - air vent

1шт.

16

H58826

BREATHER

VENT - air

1шт.

17

H32375

GASKET

- conv motor

1шт.

18

H67439

PLATE ASSY.

CLEANER - roller

2шт.

19

H41046

SCREW,1/2" x 4 1/2", Grade 5

ADJ SCREW - conv belt

2шт.

20

H522987

BRACKET

CONV MTG BRKT

1шт.

22

H48454

SHAFT

- idler

1шт.

23

H510529

BAFFLE LUG - left

1шт.

24

H510537

BAFFLE LUG - right

1шт.

25

H510545

BAFFLE

- dirt

1шт.

26

H67447

CONVEYOR BELT,10.00" W x 111.00" L

BELT, CONVEYOR 10.00" W x 111.00" L

1шт.

27

H67488

FLAP

RUBBER SIDE FLAP

2шт.

28

H67629

BOOT

STRAP - doubler

2шт.

29

195-453

WASHER,1 1/64" x 1 3/4" x .033"

(1" flat aircraft) (2 used on each shaft) 1 1/64" x 1 3/4" x .033"

4шт.

30

A27521

SNAP RING,#68, Ext

Ring, Snap, #68, Ext

2шт.

31

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

9шт.

32

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT (5/16 NC hex - lock)

9шт.

33

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

34

131-1182

LOCK NUT,1/2"-13, GA

NUT (1/2 NC hex - lock)

6шт.

35

H529305

GEAR WHEEL

MOTOR - conveyor (See Figure 34)

1шт.

36

113-211

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5, Full Thd

HHCS (7/16 x 1-1/2 NC)

1шт.

37

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

(7/8 JIC M x 7/8 ORB) 90º, 7/8"-14, 37º x 7/8"-14, O-Ring

2шт.

38

H510602

TUBE,0.625" OD x 1.812, 2.125" L

- variable speed

2шт.

39

218-902

HYD CONNECTOR,3/8" NPT x 3/8" - 18 ORFS

CONNECTOR (3/8 - pipe)

1шт.

40

H510925

LOCK VALVE

VARIABLE SPEED VALVE

1шт.

41

H200733

HOSE ASSY.

HOSE (1/2 x 58 - 7/8 JIC Fe Sw x 7/8 JIC M)

2шт.

42

129-145

JAM NUT,Jam, 1/2"-13, G5

6шт.

43

131-1129

LOCK NUT,7/16"-14, GA

NUT (7/16 NC hex - lock)

1шт.

44

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

2шт.

45

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

46

221-13

PLUG,Sq Hd, 3/8"-18

(3/8 pipe - sq hd)

1шт.
