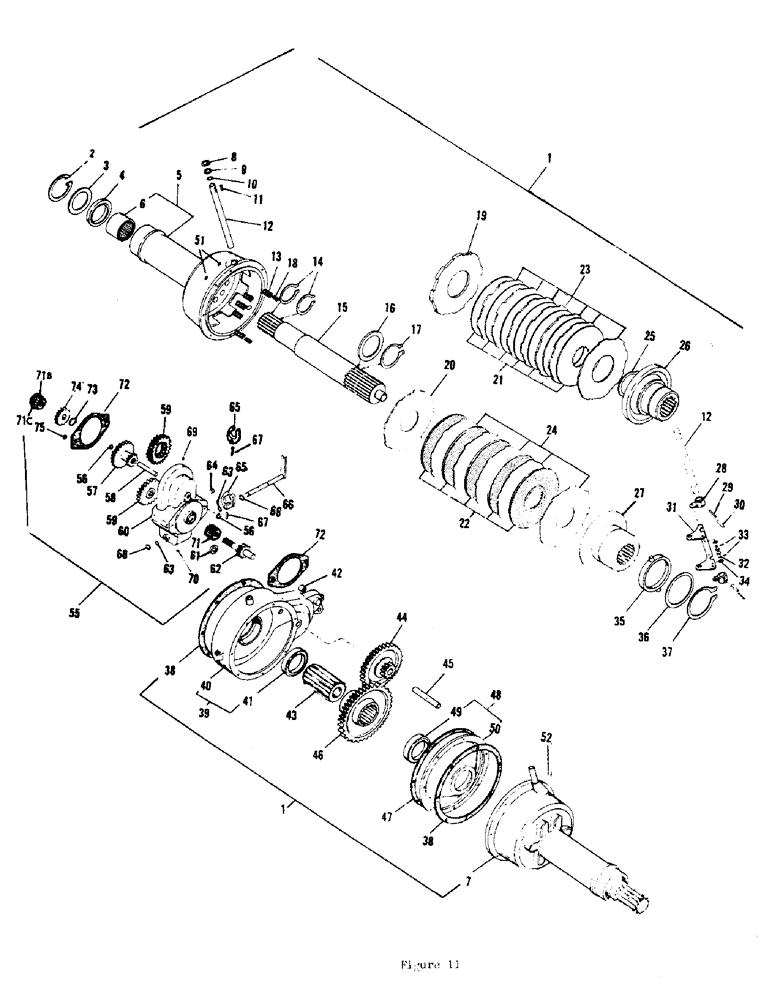

Запчасти Case 700 (24) - TRANSMISSION AND GEAR - REDUCTION DRIVE

1

H547273

TRANSMISSION

ASM2 - 75, Serial Range: -6400

1шт.

H547273 transmission includes one each of H547281, H523720 and H571679 gear reduction case. Order H581017 for replacement of asm.

1шт.

1

H581009

TRANSMISSION

ASM, Includes: Ref. 2 - 75, Start Serial: 6400

1шт.

H581009 transmission includes one each of H547281, H523720 and H581017.

1шт.

2

70742

WASHER

2.50", Int, #250

2шт.

3

H100362

WASHER

SPECIAL WASHER

2шт.

4

H749218

OIL SEAL,44.45mm ID x 63.65mm OD x 7.95mm Thk

SHAFT SEAL

2шт.

Included in H177154 seal repair kit.

1шт.

5

H123588

CENTER AXLE

AXLE & BRAKE HOUSING - left, Includes: Ref. 6

1шт.

The bearing, Ref. 6, is no longer included in the housing. See H123588 Rev. F.

1шт.

6

A50606

NEEDLE BEARING,Needle, 44.45mm ID x 53.98mm OD x 38.1mm W

AXLE BEARING

1шт.

7

H123596

CENTER AXLE

AXLE & BRAKE HOUSING - right (Includes one each Ref. 6)

1шт.

8

H100214

WASHER

SPECIAL WASHER, part not required

2шт.

10

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

O RING

2шт.

Included in H177154 seal repair kit.

1шт.

11

H58016

KEY

(1/4" sq. x 3/4")

2шт.

12

H100289

KEY

TOGGLE SHAFT

2шт.

13

H100297

SPRING

BRAKE ADJUSTING SPRING

2шт.

14

A17903

SNAP RING,#156, Ext

Ring, Snap, #156, Ext

4шт.

15

H100230

SHAFT

AXLE SHAFT

2шт.

16

H100271

WASHER

SPECIAL WASHER

2шт.

17

D23191

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

2шт.

18

H123612

VALVE SPRING

NESTING SPRING

12шт.

19

H176982

PLATE ASSY.

BACK PLATE, Serial Range: -4400

2шт.

20

H176982

PLATE ASSY.

BACK PLATE, Start Serial: 4400

2шт.

21

H176990

DISC

ROTATING BRAKE DISC, Serial Range: -4400

14шт.

22

H176990

DISC

ROTATING BRAKE DISC, Start Serial: 4400

10шт.

23

H177006

DISC

STATIONARY BRAKE DISC, Serial Range: -4400

14шт.

24

H177006

DISC

STATIONARY BRAKE DISC, Start Serial: 4400

10шт.

25

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

SNAP RING, Serial Range: -4400

2шт.

26

H177147

CLUTCH ASSEMBLY

CLUTCH & BRAKE SLEEVE, Serial Range: -4400

2шт.

27

H177147

CLUTCH ASSEMBLY

CLUTCH & BRAKE SLEEVE, Start Serial: 4400

2шт.

28

H100065

KEY

BRAKE TOGGLE ARM

4шт.

29

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1 1/8", Slotted

4шт.

30

138-135

LOCK PIN,1/4" x 1 1/8", Slotted

PIN, LOCK, 1/4" x 1 1/8", Slotted

2шт.

31

H100073

KEY

BRAKE LOCK TOGGLE ARM

2шт.

32

H100354

CLEVIS COUPLING

CLEVIS PIN (3/8" x 5/8")

4шт.

33

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.

34

H100222

WASHER

SPECIAL WASHER

8шт.

35

H100131

RING, SNAP

TOGGLE RING

2шт.

36

H144527

WASHER,63.55mm ID x 82.3mm OD x 3.2mm Thk

THRUST WASHER

2шт.

37

A60216

SNAP RING,#250, Ext

Ring, Snap, #250, Ext

2шт.

38

H100255

GASKET

, Start Serial: 6400

2шт.

H581009 transmission includes one each of H547281, H523720 and H581017.

1шт.

39

H100123

HOUSING

GEAR HOUSING ASM, Includes: Ref. 40 - 42

1шт.

40

H100115

HOUSING

GEAR HOUSING

1шт.

41

H747402

BEARING

BALL BEARING

1шт.

42

H747949

NEEDLE BEARING

1шт.

43

H100180

SHAFT

DRIVE SHAFT ASM (Includes bearings)

1шт.

Bearing is available. Order P/N H747972.

1шт.

44

H176974

REDUCER

REDUCTION GEAR (Includes bearings)

1шт.

Bearing is available. Order P/N H747964.

1шт.

45

H100263

REDUCER

REDUCTION GEAR SHAFT

1шт.

46

H126797

GEAR WHEEL

DRIVE GEAR

1шт.

47

H100248

GASKET

1шт.

Included in H177154 seal repair kit.

1шт.

48

H100032

BEARING

& PLATE ASM, Includes: Ref. 49 and 50

1шт.

49

H747402

BEARING

BALL BEARING

1шт.

50

H100057

PLATE ASSY.

BEARING PLATE

1шт.

51

H100339

WASHER

COPPER WASHER

5шт.

52

H746230

PLUG

FILTER PLUG

1шт.

55

H523738

BOX

GEAR REDUCTION CASE (For replacement order part #H581017), Includes: Ref. 56 - 71C, Serial Range: -6400

1шт.

H547273 transmission includes one each of H547281, H523720 and H571679 gear reduction case. Order H581017 for replacement of asm.

1шт.

55

H581017

GEAR

REDUCTION CASE, Start Serial: 6400

1шт.

H581009 transmission includes one each of H547281, H523720 and H581017.

1шт.

56

L31750

CIRCLIP,0.562", Int, #56

Ring, Snap, 0.562", Int, #56

2шт.

57

H97915

REDUCER

REDUCTION GEAR ASM (Includes two each H176933)

1шт.

58

H97931

SHAFT

REDUCTION GEAR SHAFT

1шт.

59

H581835

GEAR WHEEL

SHIFTING GEAR NOT AVAILABLE: gear replacement kit includes one each H351809 input gear, H244749 output gear, H244756 sliding gear, 141-705 groove pin, H755645 snap ring, H244764 shifting toggle and F62020 snap ring

1шт.

59

H244756

GEAR WHEEL

SHIFTING GEAR, Start Serial: 6400

1шт.

H581009 transmission includes one each of H547281, H523720 and H581017.

1шт.

60

H135293

HOUSING

GEAR HOUSING ASM (Includes one H747949 bearing), Serial Range: -6400

1шт.

H547273 transmission includes one each of H547281, H523720 and H571679 gear reduction case. Order H581017 for replacement of asm.

1шт.

60

H176966

HOUSING

GEAR HOUSING (Does not include bearing, order part #H135293 for asm), Start Serial: 6400

1шт.

H581009 transmission includes one each of H547281, H523720 and H581017.

1шт.

61

H746313

SEAL ASSY.

SHAFT SEAL

1шт.

62

H176941

GEAR WHEEL

DRIVE GEAR ASM

1шт.

63

A8613

O-RING,0.426" ID x 0.566" OD

O RING

2шт.

64

H749572

PLUG

FILL PLUG

1шт.

65

H97949

TOGGLE

SHIFTING TOGGLE, Serial Range: -6400

1шт.

H547273 transmission includes one each of H547281, H523720 and H571679 gear reduction case. Order H581017 for replacement of asm.

1шт.

65

H244764

FORK

SHIFTING TOGGLE, Start Serial: 6400

1шт.

H581009 transmission includes one each of H547281, H523720 and H581017.

1шт.

66

H97956

LEVER

SHIFTING LEVER & SHAFT

1шт.

67

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, 5/32" x 7/8", Slotted, Serial Range: -6400

1шт.

H547273 transmission includes one each of H547281, H523720 and H571679 gear reduction case. Order H581017 for replacement of asm.

1шт.

67

141-705

GROOVED PIN,5/32" x 7/8", Type A

Pin, Grooved, 5/32" x 7/8", Type A, Start Serial: 6400

1шт.

H581009 transmission includes one each of H547281, H523720 and H581017.

1шт.

68

A39489

SNAP RING,#43, Ext

Ring, Snap, #43, Ext

2шт.

69

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

FILTER PLUG

1шт.

70

221-849

PLUG,Hex Soc, 1/8"-27

PIPE PLUG

1шт.

71

H244749

GEAR WHEEL

OUTPUT SHAFT GEAR, Start Serial: 6400

1шт.

H581009 transmission includes one each of H547281, H523720 and H581017.

1шт.

71b

H351809

GEAR WHEEL

MOTOR GEAR, Start Serial: 6400

1шт.

H581009 transmission includes one each of H547281, H523720 and H581017.

1шт.

71c

H755645

SNAP RING,#168, Ext

Ring, Snap, , output shaft gear (not shown) #168, Ext, Start Serial: 6400

1шт.

H581009 transmission includes one each of H547281, H523720 and H581017.

1шт.

72

H32375

GASKET

1шт.

Included in H177154 seal repair kit.

1шт.

73

A27521

SNAP RING,#68, Ext

Ring, Snap, , motor gear #68, Ext

1шт.

74

H97972

GEAR

MOTOR GEAR, Serial Range: -6400

1шт.

H547273 transmission includes one each of H547281, H523720 and H571679 gear reduction case. Order H581017 for replacement of asm.

1шт.

75

H57943

SEALING WASHER

WASHER

1шт.
