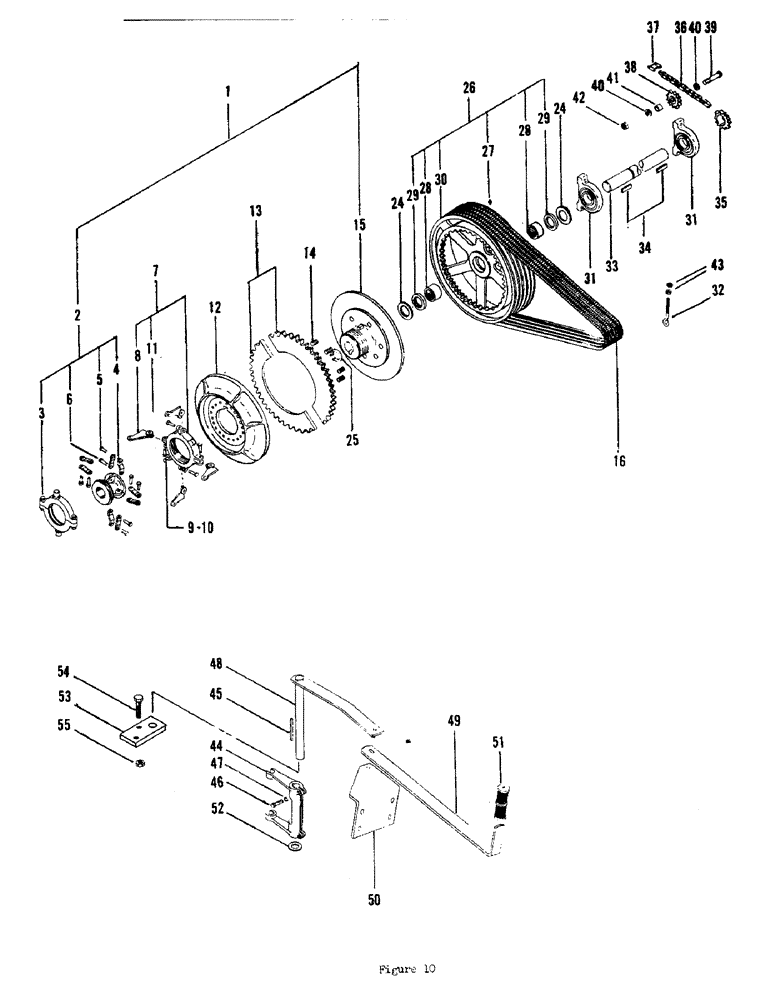

Запчасти Case 700 (22) - FRICTION CLUTCH ASSEMBLY

1

H546812

CLUTCH

FRICTION CLUTCH ASM, Includes: Ref. 2 - 11

1шт.

2

H547315

SLEEVE CYLINDER

SLIDING SLEEVE ASM, Includes: Ref. 3 - 6

1шт.

3

H529388

COLLAR

SHIFTING COLLAR

1шт.

4

F11937

DRAG LINK

LEVER LINK

8шт.

5

F11938

AXLE PIN

LEVER LINK PIN

4шт.

6

H111229

AXLE PIN

LEVER LINK PIN

4шт.

7

H529362

YOKE

ADJUSTING YOKE ASM, Includes: Ref. 8 - 11

1шт.

8

H111179

LEVER

FINGER

4шт.

9

H111195

AXLE PIN

ADJUSTING LOCK PIN

1шт.

10

A26944

VALVE SPRING

LOCK PIN SPRING

1шт.

11

H111187

AXLE PIN

FINGER PIN

4шт.

12

H111252

PLATE ASSY.

FLOATING PLATE, Includes: Ref. 13 - 15

1шт.

13

H111245

PLATE

DRIVING PLATE - set only

1шт.

14

H111260

VALVE SPRING

RELEASE SPRING

6шт.

15

H549824

LARGE PLATE

HUB & BACKPLATE ASM

1шт.

16

H203067

SET OF BELTS

SET OF 2 BELTS

1шт.

The set of five belts on very early machines is P/N H115782. The big pulley is P/N H115212 and the small pulley is P/N H115170.

1шт.

24

H115550

WASHER

THRUST WASHER

3шт.

25

A7409

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

1шт.

26

H558346

SHEAVE

LARGE SHEAVE ASM, Includes: Ref. 27 - 30

1шт.

Up to spec. number M30WS17, M30SL18, M30DZ19 and M30LS20.

1шт.

26

H595819

SHEAVE

LARGE SHEAVE ASM, Includes: Ref. 27 - 30

1шт.

Spec. number M30WS17, M30SL18, M30DZ19, M30LS20 and up.

1шт.

27

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING

1шт.

28

A24621

NEEDLE BEARING,34.92mm ID x 44.45mm OD x 25.4mm W

BEARING

2шт.

Up to spec. number M30WS17, M30SL18, M30DZ19 and M30LS20.

1шт.

28

H756684

ROLLER BEARING

BEARING

2шт.

Spec. number M30WS17, M30SL18, M30DZ19, M30LS20 and up.

1шт.

29

H749259

SEAL ASSY.

GREASE SEAL

2шт.

Up to spec. number M30WS17, M30SL18, M30DZ19 and M30LS20.

1шт.

30

H183277

SHEAVE

LARGE SHEAVE

1шт.

Up to spec. number M30WS17, M30SL18, M30DZ19 and M30LS20.

1шт.

30

H273334

SHEAVE

LARGE SHEAVE

1шт.

Spec. number M30WS17, M30SL18, M30DZ19, M30LS20 and up.

1шт.

31

H747428

BEARING,34.93 mm ID x 55.58 mm OD x 47.63 mm

PILLOW BLOCK & BEAR. ASM

2шт.

32

H49627

BOLT

EYE BOLT

2шт.

33

H115360

JACKSHAFT

JACK SHAFT - Wisc, Lister & Slanzi engines

1шт.

Up to spec. number M30WS17, M30SL18, M30DZ19 and M30LS20.

1шт.

33

H602946

SHAFT

JACK SHAFT ASM - Wisc, Lister & Slanzi engines. Includes two H756692 bearing - inner race

1шт.

Spec. number M30WS17, M30SL18, M30DZ19, M30LS20 and up.

1шт.

33

H200519

SHAFT

JACK SHAFT - Deutz engine

1шт.

Up to spec. number M30WS17, M30SL18, M30DZ19 and M30LS20.

1шт.

33

H595827

SHAFT

JACK SHAFT - Deutz engine - includes two H756692 bearing inner race

1шт.

Spec. number M30WS17, M30SL18, M30DZ19, M30LS20 and up.

1шт.

34

H115790

KEY

(1/4 x 5/16 x 1-7/8)

2шт.

35

H114256

DRIVE SPROCKET

SPROCKET - drive

1шт.

36

H748590

CHAIN (AG)

CHAIN (#80 - 82 pitches) the 1/2 link part number is B12510, Includes: Ref. 37

1шт.

37

60961

DRAG LINK

CONNECTOR LINK (#80)

1шт.

38

H747436

DRIVE SPROCKET

IDLER SPKT & BEAR ASM

1шт.

39

113-718

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

1шт.

40

195-545

WASHER,3/4", SAE

(3/4 SAE - flat)

2шт.

41

H115535

SPACER

1шт.

42

131-1131

LOCK NUT,3/4"-10, GA

NUT (3/4 NC hex - lock)

1шт.

43

129-165

JAM NUT,Jam, 1/2"-20, G5

4шт.

44

H215608

CONTROL BLOCK

CLUTCH FORK

1шт.

45

H112292

KEY

(1/4 sq x 4-7/8)

1шт.

46

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

47

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

48

H548404

SHAFT

CLUTCH ENGAGEMENT SHAFT

1шт.

48

H565531

SHAFT

CLUTCH ENGAGEMENT SHAFT - Deutz engine

1шт.

49

H162594

HANDLE

CLUTCH HANDLE

1шт.

50

H162602

HANDLE PIVOT

1шт.

51

H33332

GRIP

HANDLE GRIP

1шт.

52

195-553

WASHER,1", SAE

(1 - flat)

1шт.

53

H236000

BEARING LUG

1шт.

54

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

55

230-4216

LOCK NUT,3/8"-16, GA

NUT (3/8 NC hex - lock)

2шт.
