Запчасти Case 700 (20) - HYDRAULIC SYSTEM - BOOM AND CONVEYOR CIRCUITS

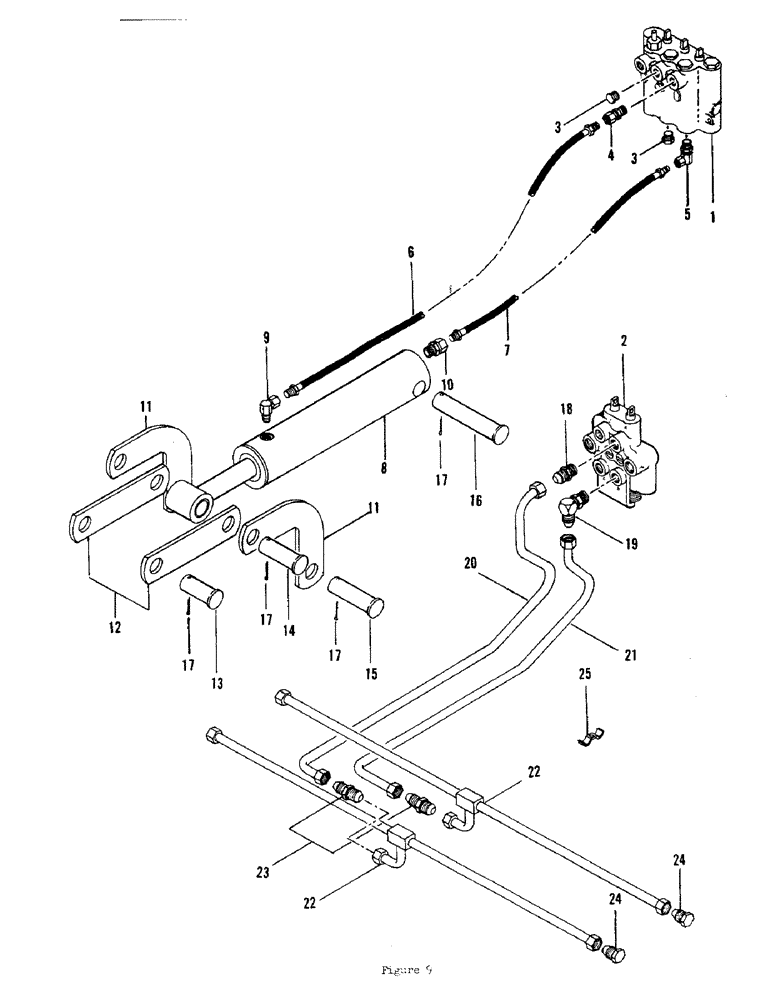

Схема запчастей Case 700 - (20) - HYDRAULIC SYSTEM - BOOM AND CONVEYOR CIRCUITS

Артикул

Название

Примечание

Количество

1

H594457

CONTROL BLOCK

BOOM, BLADE, LOW SPEED VALVE ASM (See Figure 36)

1шт.

2

H567586

LOCK VALVE

CONVEYOR, HIGH SPEED VALVE ASM (See Figure 34)

1шт.

3

76349

PLUG,9/16" - 18 ORB

(Used only w/o backfill blade) Hex Hd, 9/16"-18 ORB

2шт.

4

218-5253

HYD CONNECTOR,9/16" - 18 ORB x 3/8" - 18 NPT

CONNECTOR (9/16 ORB x 3/8 Fe pipe)

1шт.

5

218-5204

90 ELBOW,90 Degree, 9/16"-18 O-Ring x 1/4" NPSM Fem

- 90 degrees (9/16 ORB x 3/8 Fe pipe)

1шт.

6

H35162

HOSE,0.25" ID x 44.00"

1шт.

7

H91405

HOSE ASSY.

HOSE (1/4 x 35 - 3/8 M pipe x 1/4 M pipe)

1шт.

8

H530519

CYLINDER BLOCK

BOOM CYLINDER ASM (See Figure)

1шт.

9

218-926

90 ELBOW,90 Degree, 3/8" NPTF Male x 3/8" NPSM Fem Sw

- 90 degrees (3/8 M pipe x 3/8 Fe pipe)

1шт.

10

218-5252

HYD CONNECTOR,3/4" - 16 ORB x 3/8" NPT

CONNECTOR (3/4 ORB x 3/8 M pipe)

1шт.

11

H114108

DRAG LINK

LINK - curved

2шт.

12

H114116

DRAG LINK

LINK - straight

2шт.

13

H114959

AXLE PIN

PIN - link to crank casting

1шт.

14

H114975

AXLE PIN

PIN - link to cyl rod end

1шт.

15

H114967

AXLE PIN

PIN - link to lower attach point

1шт.

16

H114983

AXLE PIN,31.72mm OD x 163.51mm L

PIN - hd end of cyl

1шт.

17

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

4шт.

18

H35386

ROD, CONNECTING

CONNECTOR (7/8 JIC M x 7/8 ORB)

1шт.

19

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

(7/8 JIC M x 7/8 ORB) 90º, 7/8"-14, 37º x 7/8"-14, O-Ring

1шт.

20

H560789

TUBE,0.625" OD

ASM - conveyor

1шт.

21

H560771

TUBE,0.625" OD

ASM - conveyor

1шт.

22

H560763

TUBE,0.625" OD x 34.25" L

ASM - conveyor

2шт.

23

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR (7/8 JIC M)

2шт.

24

218-776

PLUG,7/8"-14, 37 Degree

- conn tube

2шт.

25

H97816

CLAMP

- tube

1шт.

Выбрано товаров: 25
