Запчасти Case 700 (18) - HYDRAULIC SYSTEM - BACKHOE AND PROPULSION CIRCUITS

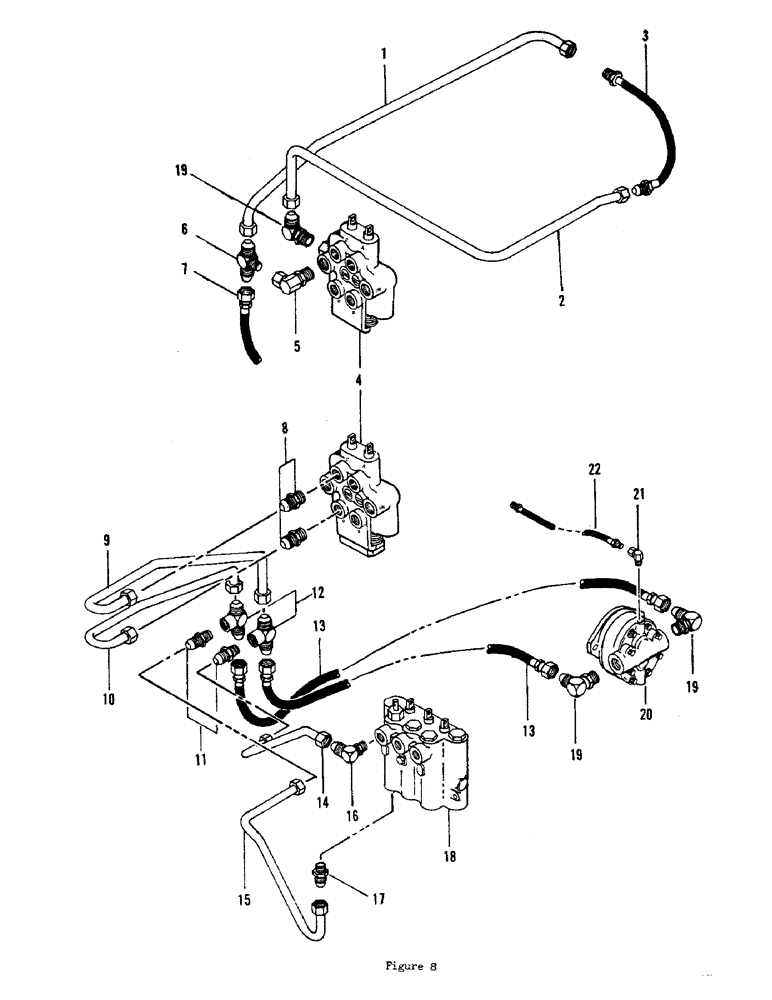

Схема запчастей Case 700 - (18) - HYDRAULIC SYSTEM - BACKHOE AND PROPULSION CIRCUITS

Артикул

Название

Примечание

Количество

1

H560847

TUBE,0.625" OD x 6.437, 21.375" L

ASM - backhoe return

1шт.

2

H560839

TUBE,0.625" OD x 19.437, 4.5" L

ASM - backhoe pressure

1шт.

3

H213124

HOSE ASSY.

HOSE (1/2 x 32 - 7/8 JIC M)

1шт.

4

H567856

CONVEYOR - high speed valve asm (See Figure 34)

1шт.

5

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

ADAPTER - 90 degrees (7/8 JIC x 1/2 pipe)

1шт.

6

218-555

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Br

ADAPTER TEE (7/8 ORB x 1/2 MP)

1шт.

7

H197517

HOSE ASSY.

HOSE (1/2 x 21 - 1/2 MP x 7/8 JIC Fe Swv)

1шт.

8

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR (7/8 JIC M x 7/8 ORB)

2шт.

9

H560805

TUBE,0.625" OD x 8.75, 3.125" L

ASM - high speed

1шт.

10

H560797

TUBE,0.625" OD x 8.75, 3.437" L

ASM - high speed

1шт.

11

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR (7/8 JIC M x 1/2 MP)

2шт.

REF. 11 AND 12 SHOULD READ 218-595

1шт.

12

218-575

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Fem Br

(7/8 JIC M x 1/2 Fe P)

2шт.

13

H175612

HYDRAULIC HOSE,12.70 mm ID x 609.60 mm, SAE 100R1

12.70 mm ID x 609.60 mm, SAE 100R1

2шт.

14

H560821

TUBE,0.5" OD x 5.375, 4.062" L

ASM - low speed

1шт.

15

H560813

TUBE,0.5" OD

ASM - low speed

1шт.

16

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degrees (9/16 ORB x 3/4 JIC M)

1шт.

17

218-5253

HYD CONNECTOR,9/16" - 18 ORB x 3/8" - 18 NPT

CONNECTOR (9/16 ORB x 3/4 JIC M)

1шт.

18

H594457

CONTROL BLOCK

BOOM, BLADE, LOW SPEED VALVE (See Figure 36)

1шт.

19

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

(7/8 ORB x 7/8 JIC M) 90º, 7/8"-14, 37º x 7/8"-14, O-Ring

3шт.

20

H523720

MOTOR HOUSING

PROPULSION MTR ASM

1шт.

21

218-933

ELBOW,90 Degree, 1/8" NPTF Male x 1/8" NPSM Fem Sw

- 90 degrees (1/8 MP x 1/8 Fe Swv)

1шт.

22

H103606

HOSE,0.25" ID x 17.00", SAE 100R3

Motor bleed 0.25" ID x 17.00", SAE 100R3

1шт.

Выбрано товаров: 23
