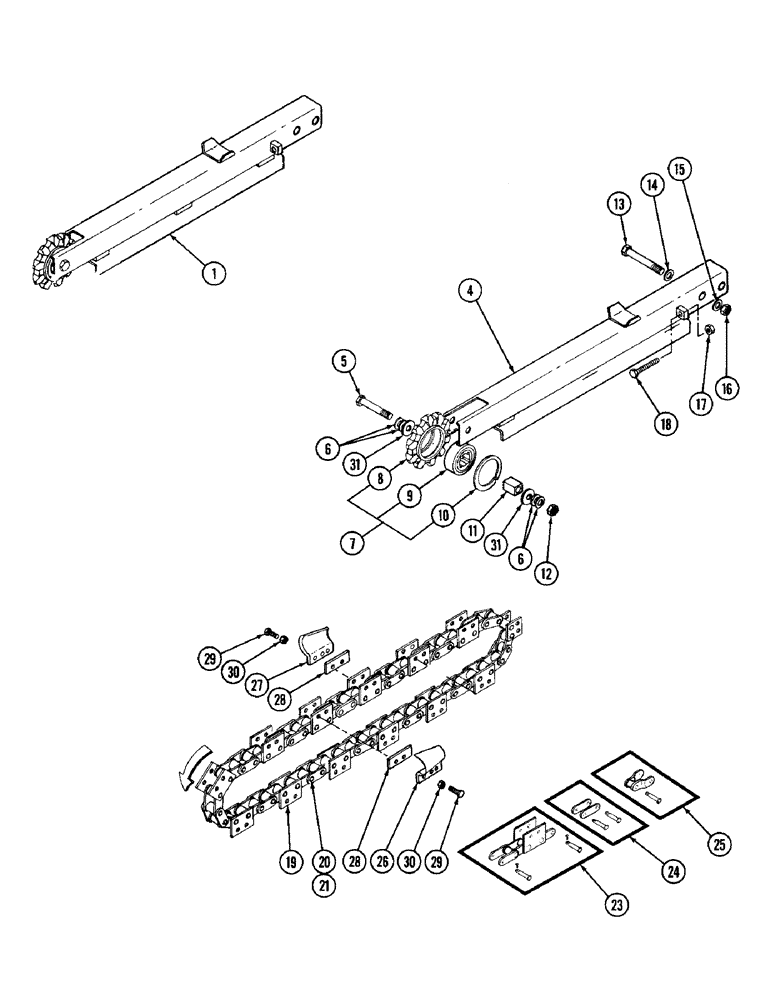

Запчасти Case 70 (16) - DIGGING BOOM, CHAIN, DIGGING TEETH

1

H612150

BOOM

& SPROCKET ASSY - 24"

1шт.

4

H612143

BOOM

WELD ASSY - 24"

1шт.

5

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

6

195-541

WASHER,5/8", SAE

(5/8 flat)

2шт.

7

H503664

SPROCKET ASSY.

SPROCKET & BEARING ASSY

1шт.

8

HO33563

SPROCKET - idler

1шт.

9

H747139

BALL BEARING

BEARING

1шт.

10

H33837

RING

RETAINER RING

1шт.

11

H232645

BUSHING

SQUARE BUSHING

1шт.

12

131-1130

LOCK NUT,5/8"-11, GA

NUT (5/8 NC hex lock)

1шт.

13

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

HHCS (5/8 x 4 NC)

2шт.

14

195-541

WASHER,5/8", SAE

(5/8 flat)

2шт.

15

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER (5/8 flat - HT)

2шт.

16

131-1130

LOCK NUT,5/8"-11, GA

NUT (5/8 NC hex - lock)

2шт.

17

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

18

H334375

BOLT

- boom adjusting

1шт.

19

H615369

CHAIN (AG)

CHAIN ASSY - 52 Pitches - 24" boom (Includes item 20 & 21)

1шт.

20

H30072

CONNECTOR, ELEC

CONNECTOR PIN

1шт.

REF: #20 - H30072 - PIN IS A D-SHAPED PIN FOR A REX CHAIN. IF YOU ARE LOOKING FOR THE ROUND PIN FOR THE BALLANTINE CHAIN, YOU CAN ORDER 253215A1 PIN.

1шт.

21

H85274

SPLIT PIN/SAFETY PIN

KEEPER PIN (Use H739920 - 1/8 x 3/4 cotter pin as alternate)

1шт.

23

H502054

CHAIN (CE)

REPAIR SECTION (Includes 2 ea item 20 & 21)

1шт.

24

H504068

DRAG LINK

CONNECTOR LINK (Includes 2 ea item 20 & 21)

1шт.

25

H59360

HALF-LINK

HALF LINK (Includes 1 ea item 20 & 21)

1шт.

26

H208363

TOOTH

DIGGING TOOTH - L/H

6шт.

27

H208371

TOOTH

DIGGING TOOTH - R/H

6шт.

28

H208355

SPACER

TOOTH SPACER

12шт.

29

114-252

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 8, Full Thd

HHCS (3/8 NF x 1-1/4) - grade 8)

26шт.

30

131-1133

NUT,3/8"-24, GC

NUT (3/8 NF hex - lock)

26шт.

31

H350785

WASHER

- special

2шт.
