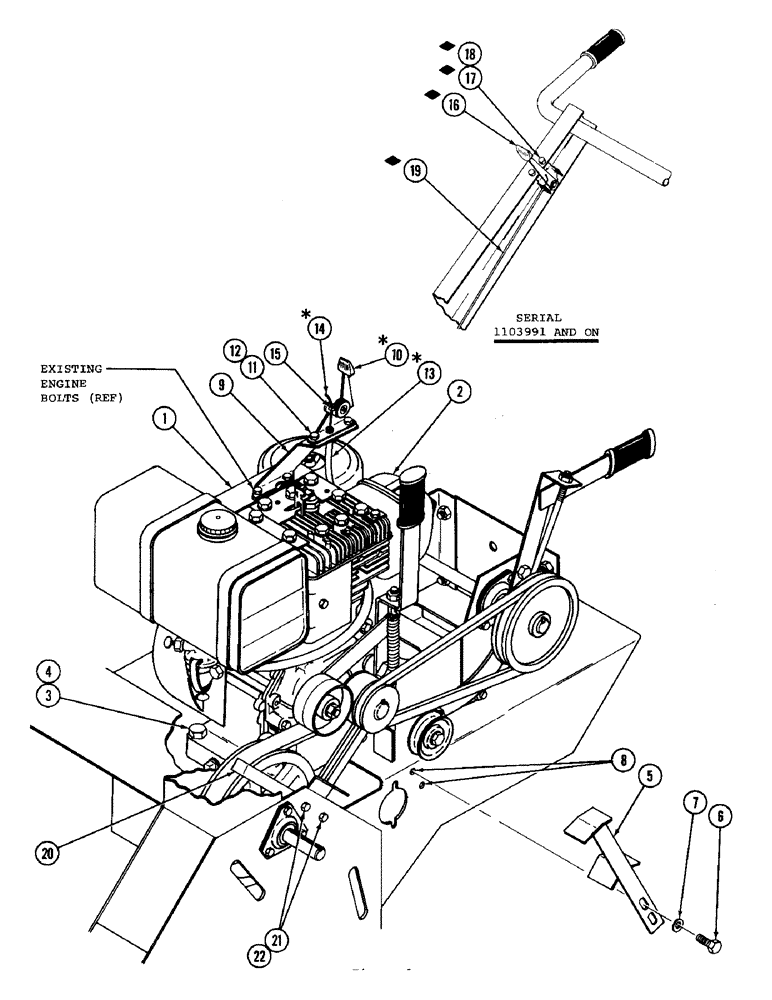

Запчасти Case 70 (14) - ENGINE, THROTTLE CONTROL

1

ENGINE - Briggs and Stratton - 7 HP (Spec #170402)

1шт.

2

H291419

MUFFLER

1шт.

3

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4шт.

4

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC hex C/L (5/16)

4шт.

5

H613760

RETAINER ASSY - belt, Serial Range: 1100203-1117224

1шт.

H633008

RETAINER ASSY - belt, Start Serial: 1117225

1шт.

6

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- NC HH (3/8 x 1)

2шт.

7

195-525

WASHER,3/8", SAE

- flat (3/8)

2шт.

8

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC hex C/L (3/8)

2шт.

9

H43448

BRACKET - throttle control, Serial Range: 1100203-1103990

1шт.

10

H501924

CONTROL BLOCK

CONTROL ASSY - throttle, Serial Range: 1100203-1103990

1шт.

When replacing these parts, order Ref. 16 - 19. Discard all Ref. 9 - 15.

1шт.

11

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

, Serial Range: 1100203-1103990

2шт.

12

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA, Serial Range: 1100203-1103990

2шт.

13

H43463

PIPE CLAMP

CONDUIT - throttle control, Serial Range: 1100203-1103990

1шт.

When replacing these parts, order Ref. 16 - 19. Discard all Ref. 9 - 15.

1шт.

14

H43471

CABLE - throttle control, Serial Range: 1100203-1103990

1шт.

When replacing these parts, order Ref. 16 - 19. Discard all Ref. 9 - 15.

1шт.

15

H43034

JOINT TURNING

KEEPER ASSY - throttle cable, Start Serial: 1103991

1шт.

16

H322529

CONTROL

- throttle, Start Serial: 1103991

2шт.

17

H708933

BOLT - NC HH (#10 - 24 x 1/2), Start Serial: 1103991

2шт.

18

H755512

NUT

- NC hex C/L (#10 - 24), Start Serial: 1103991

2шт.

19

H323675

CABLE PULLING GRIP

CABLE ASSY - throttle, Start Serial: 1103991

1шт.

20

H327312

RETAINER - belt

1шт.

21

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

22

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC hex C/L (5/16)

2шт.
