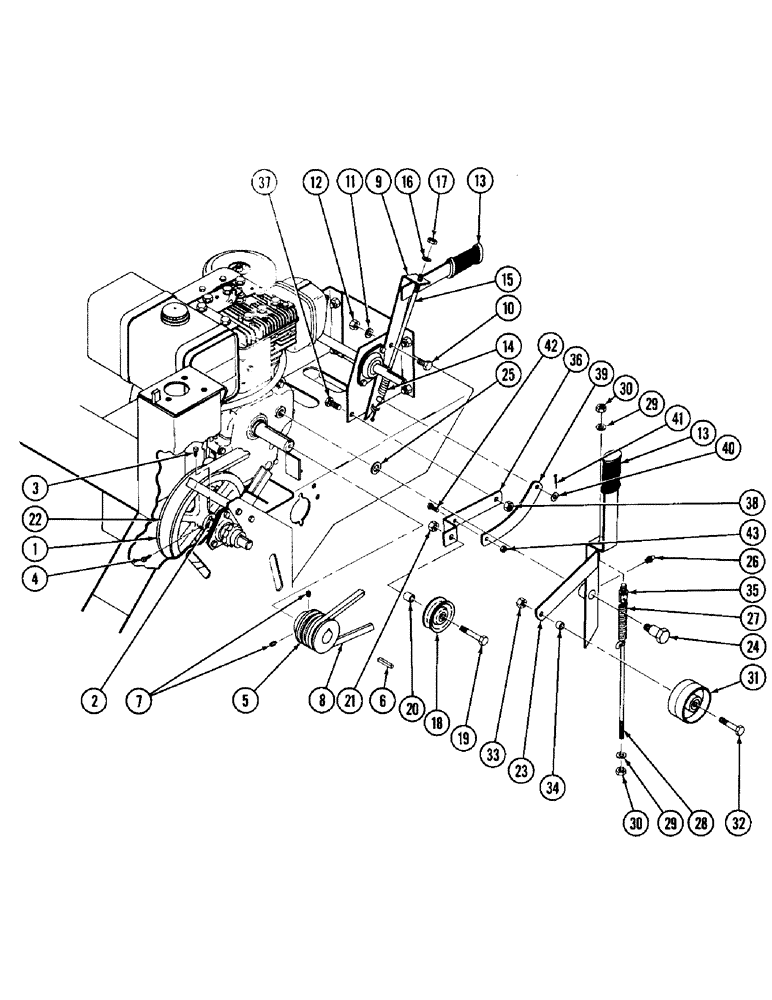

Запчасти Case 70 (12) - BELTS, CLUTCHES, SHEAVES

1

H43422

SHEAVE

- jack shaft

1шт.

TL70 serial 1100203 thru 1117125.

1шт.

1

H317891

SHEAVE - jack shaft

1шт.

TL70 serial 1117126 and on.

1шт.

2

H61168

KEY

- square (3/16 x 7/8)

1шт.

3

85-48

SET SCREW,Sq Hd, 1/4"-20 x 1/2"

SCREW - set NC cup pt (1/4 x 1/2)

1шт.

4

181-18

SET SCREW,Sq Hd, 1/4"-20 x 3/4"

SCREW - set NC cone pt (1/4 x 3/4)

1шт.

5

H311050

BLOCK

SHEAVE - engine

1шт.

TL70 serial 1100203 thru 1117125.

1шт.

5

H317875

SHEAVE

- engine

1шт.

TL70 serial 1117126 and on.

1шт.

6

H257006

KEY

- square (1/4 x 1-1/2)

1шт.

7

83-46

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW - set NC cup pt (1/4 x 3/8)

2шт.

8

H310417

V-BELT

Transport Drive

1шт.

9

H621979

HANDLE

CLUTCH ASSY - transport

1шт.

10

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

11

195-525

WASHER,3/8", SAE

- flat (3/8)

1шт.

12

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC hex C/L (3/8)

1шт.

13

H33332

GRIP

- handle

2шт.

H346494

ADHESIVE

- grip (5 oz. tube 3M #847)

1шт.

14

H43216

VALVE SPRING

SPRING - clutch adjust

1шт.

15

H43208

BOLT

LINK - adjust

1шт.

16

195-521

WASHER,5/16", SAE

- flat (5/16)

1шт.

17

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

18

H43455

SHEAVE

- idler

1шт.

TL70 serial 1100203 thru 1117125.

1шт.

18

H321158

SHEAVE

- idler

1шт.

TL70 serial 1117126 and on.

1шт.

19

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

1шт.

20

H317818

SPACER

1шт.

21

131-1129

LOCK NUT,7/16"-14, GA

NUT - hex C/L (7/16)

1шт.

22

H310409

V-BELT,42.00" L

Digging Drive 42.00" L

1шт.

TL70 serial 1100203 thru 1117125.

1шт.

22

H240663

BELT

- digging drive

1шт.

TL70 serial 1117126 and on.

1шт.

23

H500579

CLUTCH ASSY - belt

1шт.

TL70 serial 1100203 thru 1117224

1шт.

23

H633016

CLUTCH ASSY - belt

1шт.

TL70 serial 1117225 and on.

1шт.

24

H43323

BOLT

- special

1шт.

25

195-533

WASHER,1/2", SAE

- Flat (1/2)

1шт.

26

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (Straight) 1/4"-28 NPT x .54" lg

1шт.

27

H43216

VALVE SPRING

SPRING - clutch adjust

1шт.

28

H43208

BOLT

LINK - adjust

1шт.

29

195-521

WASHER,5/16", SAE

- flat (5/16)

2шт.

30

131-1169

LOCK NUT,5/16"-24, GA

NUT, LOCK, 5/16"-24, GA

2шт.

31

H43455

SHEAVE

- idler

1шт.

TL70 serial 1100203 thru 1117125.

1шт.

31

H321158

SHEAVE

- idler

1шт.

TL70 serial 1117126 and on.

1шт.

32

113-350

BOLT,Hex, 7/16" - 14 x 2", Gr 5

- NC HH (7/16 x 2-1/4)

1шт.

TL70 serial 1100203 thru 1117125.

1шт.

32

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

1шт.

TL70 serial 1117126 and on.

1шт.

33

131-1129

LOCK NUT,7/16"-14, GA

NUT - NC hex C/L (7/16)

1шт.

TL70 serial 1100203 thru 1117125.

1шт.

33

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC hex C/L (1/2)

1шт.

TL70 serial 1117126 and on.

1шт.

34

H317800

SPACER

1шт.

35

H317206

BOLT

BOLT - eye

1шт.

36

H329045

LEVER

- transport idler

1шт.

37

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

38

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC hex C/L (3/8)

1шт.

39

H329052

LINK

- transport clutch

1шт.

40

195-525

WASHER,3/8", SAE

- flat (3/8)

1шт.

41

H739771

HARDWARE

PIN - cotter (3/32 x 3/4)

1шт.

42

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

43

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC hex C/L (5/16)

1шт.

44

H633016

CLUTCH ASSY - belt

1шт.

TL70 serial 1117126 and on.

1шт.
