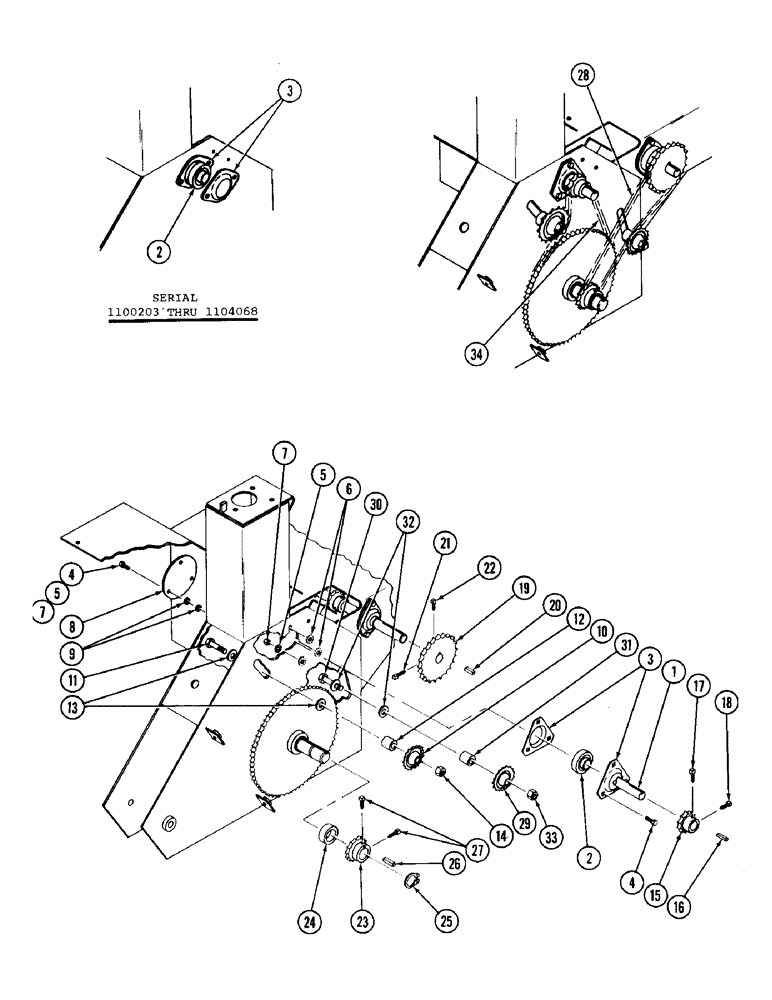

Запчасти Case 70 (10) - DRIVE CHAINS, SPROCKETS

1

H331140

SHAFT - jack, model:TL70, Use P/N H308007 until exhausted, Serial Range: 1100203-1117125

1шт.

H331785

SHAFT

- jack, model:TL70, Start Serial: 1117126

1шт.

2

F13361

BEARING

model:TL70, Serial Range: 1100203-1117125

2шт.

F53346

BALL BEARING

model:TL70, Start Serial: 1117126

2шт.

3

F13360

FLANGE

TTE - bearing (2 attaching holes), model:TL70, Serial Range: 1100203-1117125

4шт.

H333534

FLANGED BEARING

FLANGETTE - bearing (3 attaching holes), model:TL70, Serial Range: 1100203-1117125

4шт.

T28259

FLANGE

TTE - bearing, model:TL70, Start Serial: 1117126

4шт.

4

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

If flangettes with two holes are used, use four each bolt, washer and nut. If flangettes with three holes are used, use six each bolt, washer and nut.

1шт.

5

195-521

WASHER,5/16", SAE

- flat (5/16)

1шт.

If flangettes with two holes are used, use four each bolt, washer and nut. If flangettes with three holes are used, use six each bolt, washer and nut.

1шт.

6

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, (3 between flangette and frame) Ext Tooth, 5/16", Start Serial: 1117126

6шт.

7

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC hex C/L (5/16)

1шт.

If flangettes with two holes are used, use four each bolt, washer and nut. If flangettes with three holes are used, use six each bolt, washer and nut.

1шт.

8

H312173

COVER - bearing (2 attaching holes), model:TL70, Serial Range: 1100203-1117125

1шт.

H331744

COVER

- bearing (3 attaching holes), model:TL70, Start Serial: 1100203

1шт.

9

195-521

WASHER,5/16", SAE

- flat (5/16) (Between cover and frame)

1шт.

If flangettes with two holes are used, use four each bolt, washer and nut. If flangettes with three holes are used, use six each bolt, washer and nut.

1шт.

10

H757591

WHEEL

SPROCKET - idler

1шт.

11

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

1шт.

12

H335364

SPACER

model:TL70, Serial Range: 1100203-1117125

1шт.

H350975

SPACER, model:TL70, Start Serial: 1117126

1шт.

13

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat (5/8) (HT) (1 between spacer and frame) - Max. 3

1шт.

14

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC hex C/L (5/8)

1шт.

15

H43273

DRIVE SPROCKET

SPROCKET, model:TL70, Serial Range: 1100203-1117125

1шт.

H331751

DRIVE SPROCKET

SPROCKET, model:TL70, Start Serial: 1117126

1шт.

16

H61168

KEY

- square (3/16 x 7/8)

1шт.

17

85-48

SET SCREW,Sq Hd, 1/4"-20 x 1/2"

SCREW

1шт.

18

181-18

SET SCREW,Sq Hd, 1/4"-20 x 3/4"

SCREW - set NC cone pt (1/4 x 3/4)

1шт.

19

H308080

DRIVE SPROCKET

SPROCKET

1шт.

20

H61168

KEY

- square (3/16 x 7/8)

1шт.

21

181-47

SCREW - set NC sq HD cone pt (3/8 x 1) Sq Hd, 3/8"-16 x 1"

1шт.

22

85-612

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW - set NC cup pt (3/8 x 3/4)

1шт.

23

H308015

DRIVE SPROCKET

SPROCKET

1шт.

24

H350736

SPACER

model:TL70

1шт.

25

B18208

SNAP RING,#100, Ext

, Start Serial: 1117126

1шт.

26

H26492

KEY

- square (1/4 x 3/4)

1шт.

27

85-46

SET SCREW,Sq Hd, 1/4"-20 x 3/8"

SCREW - set NC sq HD cup pt (1/4 x 1/2)

2шт.

28

H757500

CHAIN (AG)

CHAIN - ASA #40 (With connector)

1шт.

H748285

CONNECTOR, ELEC

CONNECTION LINK - #40 chain

1шт.

29

B12502

OFFSET LINK

HALF LINK - #40 chain

1шт.

29

H757609

WHEEL

SPROCKET - idler

1шт.

30

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- NC HH (5/8 x 4)

1шт.

31

H335372

SPACER

1шт.

32

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat (5/8) (HT) (1 between spacer and frame) - Max. 2

1шт.

33

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC hex C/L (5/8)

1шт.

34

H757377

CHAIN (AG)

CHAIN - ASA #50 (With connector)

1шт.

B12505

LINK

CONNECTOR LINK - #50 chain

1шт.

B12506

LINK

HALF LINK - #50 chain

1шт.
