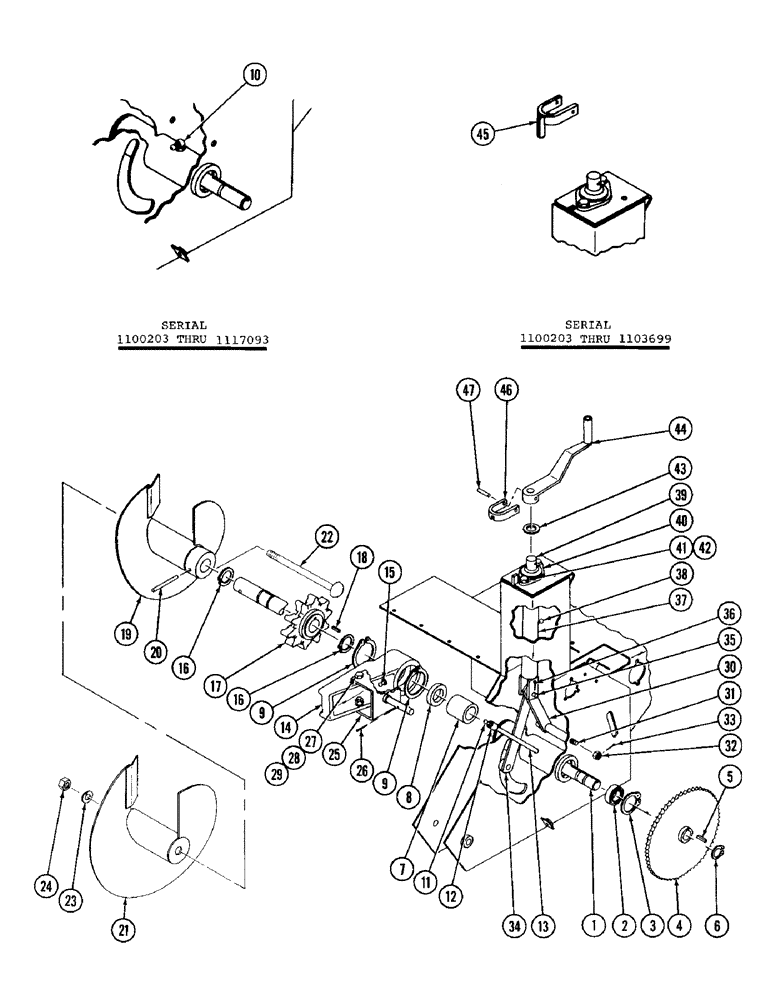

Запчасти Case 70 (08) - DIGGING CHAIN DRIVE, DEPTH CONTROL

1

H43190

DRIVE SHAFT

SHAFT - driven

1шт.

TL70 serial 1100203 thru 1114751.

1шт.

1

H334789

DRIVE SHAFT

SHAFT - driven

1шт.

TL70 serial 1114752 and on.

1шт.

2

H757807

BALL BEARING

BEARING - ball

1шт.

3

49482

SNAP RING,2.125", Int, #212

Ring, Snap, 2.125", Int, #212

1шт.

4

H43158

DRIVE SPROCKET

SPROCKET - driven

1шт.

5

H126284

KEY

- square (1/4 x 7/8)

1шт.

TL70 serial 1100203 thru 1114751.

1шт.

5

H36384

KEY

- square (1/4 x 1-3/8)

1шт.

TL70 serial 1114752 and on.

1шт.

6

B18208

SNAP RING,#100, Ext

1шт.

7

F7356

NEEDLE BEARING,Needle, 38.1mm ID x 47.63mm OD x 22.23mm W

BEARING - needle

1шт.

8

H749127

SEAL

- grease

1шт.

9

H746651

SNAP RING,#262, Ext

Ring, Snap, #262, Ext

2шт.

10

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

TL70 serial 1100203 thru 1117093.

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (Straight)

1шт.

TL70 serial 1117094 and on.

1шт.

12

221-335

COUPLING,Pipe, 1/8" NPT

(1/8)

1шт.

TL70 serial 1117094 and on.

1шт.

13

221-700

PIPE,Nipple, 1/8" NPT x 8 3/4"

- nipple (1/8 x 8-3/4)

1шт.

TL70 serial 1117094 and on.

1шт.

14

H309385

BOOM

PIVOT CASTING - boom

1шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (Straight)

1шт.

16

A7409

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

2шт.

17

H207688

DRIVE SPROCKET

SPROCKET - drive

1шт.

18

H126284

KEY

- square (1/4 x 7/8)

1шт.

19

H500025

AUGER

ASSY

1шт.

20

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, 3/8" x 2 1/2", Slotted

1шт.

21

H900159

AUGER EXTENSION

1шт.

ITEM 21 - H900159 IS A MACH. ITEM - SEE TL100 PARTS BOOK FOR BREAKDOWN - PAGE 9-12

1шт.

22

111-620

CARRIAGE BOLT,Short NK, 5/8"-11 x 7", G2

BOLT - carriage NC (5/8 x 7)

1шт.

23

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

24

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

25

H614701

ARM

ASSY - boom lift

1шт.

26

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

1шт.

27

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

28

195-525

WASHER,3/8", SAE

- flat (3/8)

4шт.

29

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC hex C/L (3/8)

4шт.

30

H618918

LINK

ASSY - boom lift

1шт.

32

129-287

SLOTTED NUT,3/4"-10, G5

1шт.

33

132-311

COTTER PIN,5/32" x 1 1/4"

5/32" x 1 1/4"

1шт.

34

H618900

LINK

ASSY - boom lift

1шт.

35

H92015

AXLE PIN

PIN - clevis (3/8 x 1-1/4)

1шт.

36

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

37

H618926

TUBE,10.44" L

ASSY - depth control

1шт.

38

219-17

LUBE NIPPLE,3/16" NPTF

NIPPLE, LUBE, , Straight 3/16" x .55" lg, Drive

1шт.

39

H623538

HARDWARE

CONTROL SCREW - depth

1шт.

40

H623686

BALL

JOINT ASSY

1шт.

41

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

42

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC hex C/L (5/16)

2шт.

43

C17256

BEARING

WASHER - boom crank (1 above and 1 below ball joint)

2шт.

44

H738815

WASHER

- flat (3/4) reg. aircraft (1 above and 1 below ball joint)

2шт.

45

H619445

CRANK

ASSY - depth control

1шт.

46

H604181

BRACKET

ASSY - stop

1шт.

TL70 serial 1100203 thru 1103699.

1шт.

47

H340547

FORK

YOKE - boom crank stop

1шт.

TL70 serial 1103700 and on.

1шт.

48

138-143

LOCK PIN,1/4" x 2 1/4", Slotted

PIN, 1/4" x 2 1/4", Slotted

1шт.
