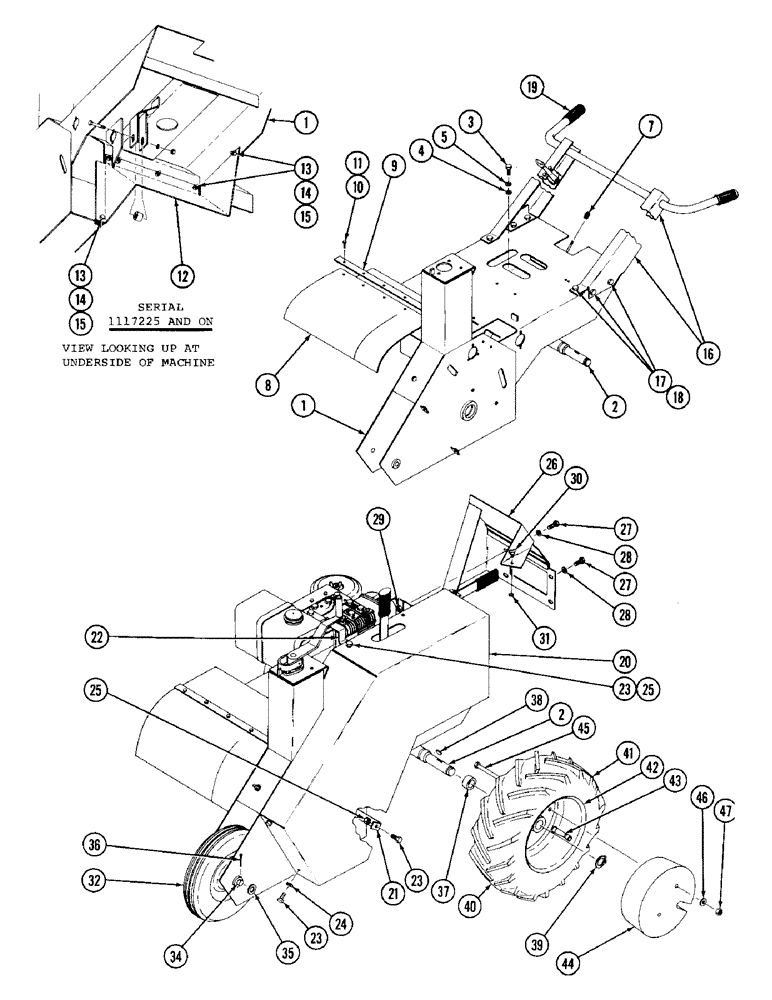

Запчасти Case 70 (04) - MAIN FRAME, WHEELS, DIRT SHIELDS

1

H617266

FRAME ASSY

1шт.

TL70 serial 1100203 thru 1114754

1шт.

1

H624486

FUNNEL

FRAME ASSY

1шт.

TL70 serial 1114755 and on.

1шт.

2

H612812

CENTER AXLE

TRANSAXLE ASSY (See Figure 18 for breakdown)

1шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

4

195-525

WASHER,3/8", SAE

- flat (3/8)

4шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

DELETED

1шт.

7

H152207

BALL KNOB

KNOB - gear shift

1шт.

8

H314088

MUDFLAP

FLAP - dirt

1шт.

9

H314237

STRIP

BACK STRIP - flap

1шт.

10

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

5шт.

11

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC hex C/L (5/16)

5шт.

12

H353748

DEFLECTOR

- dirt

1шт.

TL70 serial 1117225 and on.

1шт.

13

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

TL70 serial 1117225 and on.

1шт.

14

195-521

WASHER,5/16", SAE

- flat (5/16)

6шт.

TL70 serial 1117225 and on.

1шт.

15

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC hex C/L (5/16)

6шт.

TL70 serial 1117225 and on.

1шт.

16

H612911

HANDLE

ASSY

1шт.

17

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- NC HH (5/16 x 3/8)

10шт.

18

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC hex C/L (5/16)

10шт.

19

H3332

GRIP - handle

2шт.

20

H616797

GUARD ASSY - belt

1шт.

21

H308387

CHANNEL - belt guard

1шт.

22

H311548

STRAP - belt guard

1шт.

23

43-102

BOLT - NC HH (5/16 x 3/4)

5шт.

24

92-5

LOCK WASHER,5/16"

5шт.

25

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC hex C/L (5/16)

2шт.

26

H621292

GUARD ASSY - transport

1шт.

27

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

28

195-521

WASHER,5/16", SAE

- flat (5/16)

4шт.

29

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC hex C/L (5/16)

2шт.

TL70 serial 1100203 thru 1114754

1шт.

30

H317396

STUD - wing head

1шт.

31

H317388

RING, SNAP

RING - snap

1шт.

32

H500603

WHEEL

ASSY - front (2 required when dolly wheel kit is used)

1шт.

33

H26856

ROLLER BEARING

BEARING - wheel (Not shown)

1шт.

34

H43356

AXLE - front

1шт.

H319012

AXLE SHAFT

AXLE - front (Used with dolly wheel kit)

1шт.

35

195-541

WASHER,5/8", SAE

- flat (5/8)

2шт.

36

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

37

H311043

SPACER

- rear wheel

2шт.

38

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

2шт.

39

B18208

SNAP RING,#100, Ext

2шт.

40

H612978

REAR WHEEL AND TIRE ASSY

2шт.

41

H308247

TYRE/TIRE

TIRE (16 x 6/5-8)

1шт.

42

H308254

SPARE PART

WHEEL

1шт.

43

C10442

VALVE

STEM - valve

1шт.

44

H351759

WHEEL

WEIGHT - wheel (Used with wheel weight kit)

2шт.

45

113-178

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

- NC HH (5/16 x 4-1/2) (Used with wheel weight kit)

4шт.

46

195-103

WASHER,5/16"

- flat (5/16) (Used with wheel weight kit)

4шт.

47

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC hex C/L (5/16) (Used with wheel weight kit)

4шт.
