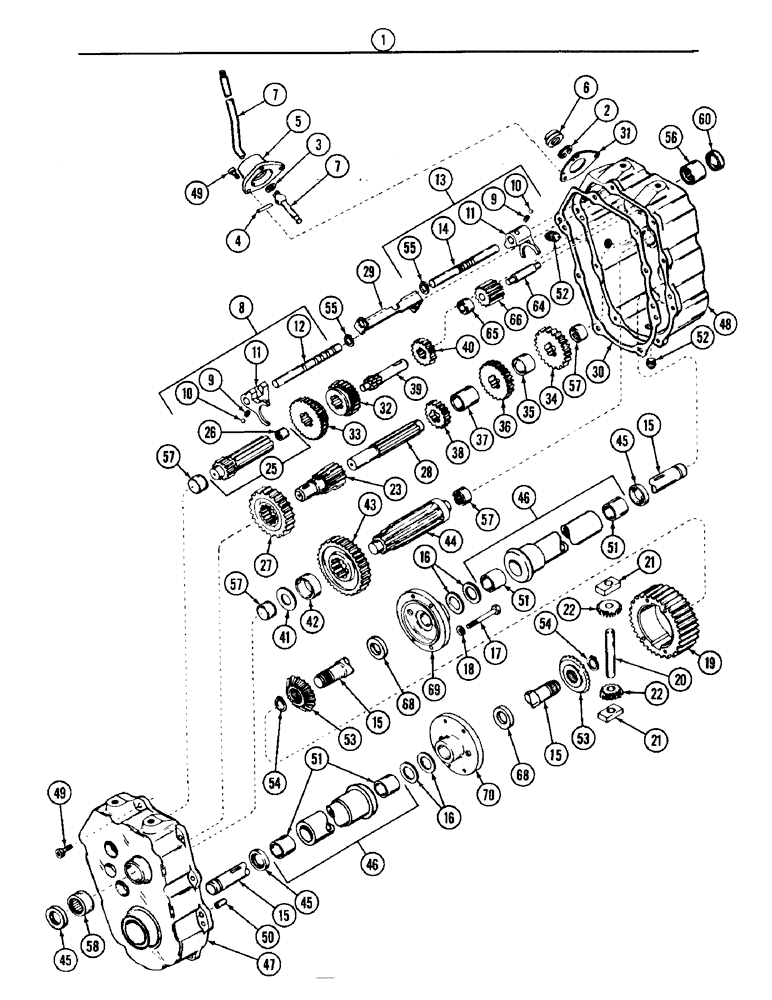

Запчасти Case 70 (18) - TRANSAXLE ASSEMBLY

1

H612812

CENTER AXLE

TRANSAXLE ASM

1шт.

2

A32181

SNAP RING,1.375", Int, #137

Ring, Snap, 1.375", Int, #137

1шт.

3

35012

RING

QUAD RING

1шт.

4

C19324

AXLE PIN

DRIVE PIN

1шт.

5

C15780

HOUSING

shift lever

1шт.

6

C11163

LEVER

KEEPER, shift lever

1шт.

7

H315358

LEVER

SHIFT LEVER

1шт.

8

C15782

ROD

ASM, shift (Includes no. 9 thru 12)

1шт.

9

C11166

SPRING

2шт.

10

211-5

BALL,3/16" Dia

- steel

2шт.

11

C11167

FORK

SHIFTER FORK

2шт.

12

C15783

ROD

SHIFTER ROD

1шт.

13

C15784

ROD

ASM - shift (Includes items 9, 10, 11, 14 & 55)

1шт.

14

C15785

ROD

SHIFTER ROD

1шт.

15

H315366

SHAFT

AXLE

2шт.

16

C11178

BEARING

WASHER - thrust

1шт.

17

13-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

4шт.

18

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

19

H296061

RING

GEAR, ring

1шт.

20

C11173

AXLE PIN

PIN - drive

1шт.

21

C11174

BLOCK

- drive

2шт.

22

C15788

PINION

drive

2шт.

23

C15789

PINION

& BUSHING ASM - idler

1шт.

25

C15790

SHAFT

& BEARING ASM - shifter (Includes item 26)

1шт.

26

A27287

NEEDLE BEARING,0.439" ID x 0.6245" OD x 0.5"

BEARING

1шт.

27

C11187

GEAR WHEEL

GEAR - idler

1шт.

28

C15791

SHAFT

- idler

1шт.

29

C11181

STOP

- shifter

1шт.

30

C15793

GASKET

-, Serial Range: case-cover

1шт.

31

C15794

GASKET

- shift lever housing

1шт.

32

C11184

GEAR

- shifting

1шт.

33

C11185

GEAR

- shifting

1шт.

34

C15795

GEAR

- spur (26 teeth)

1шт.

35

C15796

SPACER

1шт.

36

C15797

SPUR

GEAR - spur (22 teeth)

1шт.

37

C15798

SPACER

1шт.

38

C15799

GEAR

- spur (16 teeth)

1шт.

39

C15800

SHAFT

- input

1шт.

40

C11191

GEAR WHEEL

SPUR GEAR - input shaft

1шт.

41

C11205

WASHER

1шт.

42

C15801

SPACER

1шт.

43

C11193

GEAR

- input

1шт.

44

C15802

PINION

output

1шт.

45

C11195

OIL SEAL

oil

2шт.

46

C15804

BEARING ASSY

HOUSING & BEARING ASM - axle (Includes item 51)

2шт.

47

C15805

COVER

ASM - transaxle (Includes items 57 & 58)

1шт.

48

H615955

CASE ASSY.

CASE ASM - transaxle (Includes items 56 & 57)

1шт.

49

83-412

SET SCREW,Socket, 1/4" - 20 x 3/4", AST

SHCS (1/4-20 x 3/4")

1шт.

50

F53650

PIN

- dowel

1шт.

51

C15807

BUSHING

4шт.

52

221-13

PLUG,Sq Hd, 3/8"-18

- pipe

2шт.

53

C15808

GEAR

- bevel

2шт.

54

C11222

RING,#66, Ext

Snap, #66, Ext

2шт.

55

A15538

RING - snap

2шт.

56

C16008

BEARING

1шт.

57

C16005

BEARING

5шт.

58

A14858

NEEDLE BEARING,Needle, 28.56mm ID x 34.94mm OD x 19.05mm W

BEARING

1шт.

60

C16011

SEAL

- oil

1шт.

64

C15809

SHAFT

- reverse idler

1шт.

65

C15810

SPACER

- reverse idler

1шт.

66

C11211

WHEEL (STEERING)

IDLER - reverse

1шт.

68

H296756

WASHER

2шт.

69

C15811

CARRIER

- differential

1шт.

70

C15812

CARRIER

- differential

1шт.
