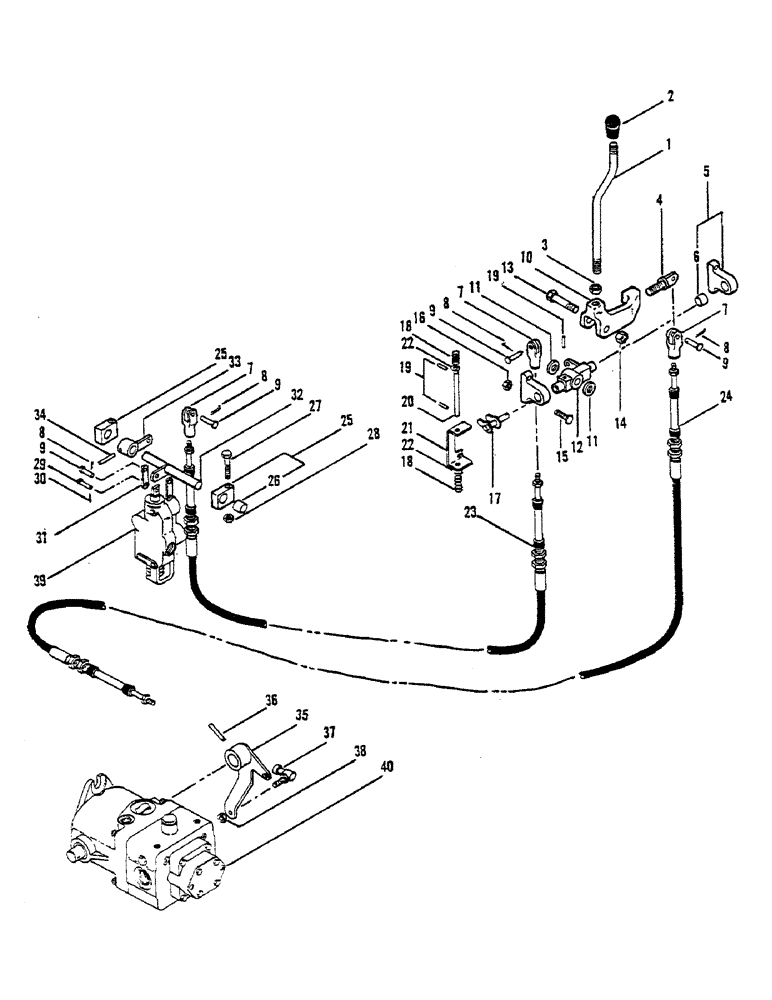

Запчасти Case 30 (10) - PROPULSION PUMP, STEERING AND VALVE CONTROLS

1

H293084

HANDLE

- forward & reverse

1шт.

2

H182113

KNOB

- handle

1шт.

3

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

4

H217109

BOLT

EYE BOLT

1шт.

5

H558411

BEARING

SHAFT MOUNTING ASSY

2шт.

6

H151894

BUSHING

1шт.

7

H165688

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS

3шт.

8

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.

9

D23693

AXLE PIN

PIN (1/4 x 1)

4шт.

10

H181982

CASTING

HANDLE CASTING

1шт.

11

H182097

WASHER

- friction

2шт.

12

H181974

SHAFT

- forward & reverse

1шт.

13

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

HHCS (1/2 x 2-1/2 NC)

1шт.

14

131-1182

LOCK NUT,1/2"-13, GA

NUT (1/2 NC hex - lock)

1шт.

15

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

4шт.

16

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT (5/16 NC hex - lock)

4шт.

17

H560482

LEVER

ASSY

1шт.

18

H196717

VALVE SPRING

SPRING

2шт.

19

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, 5/32" x 7/8", Slotted

3шт.

20

H196709

GUIDE

PIN - spring guide

1шт.

21

H196691

BRACKET

1шт.

22

195-102

WASHER,1/4"

(5/16 - flat)

2шт.

23

H559708

CABLE

- valve control

1шт.

24

H556290

CONTROL

CABLE - pump control

1шт.

25

H558403

BLOCK

BUSHING BLOCK ASSY

2шт.

26

H151894

BUSHING

1шт.

27

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

28

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT (5/16 NC hex - lock)

2шт.

29

H035279

PIN (3/16 x 57/64 - clevis)

1шт.

30

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

31

H185066

DRAG LINK

LINK - valve

2шт.

32

H557439

SHAFT

- valve control

1шт.

33

H558361

LEVER

COLLAR - shaft

1шт.

34

138-135

LOCK PIN,1/4" x 1 1/8", Slotted

PIN, LOCK, 1/4" x 1 1/8", Slotted

1шт.

35

H597765

ARM ASSY.

BELLCRANK

1шт.

36

138-137

LOCK PIN,1/4" x 1 3/8", Slotted

PIN, 1/4" x 1 3/8", Slotted

1шт.

37

H169920

BALL JOINT

1шт.

38

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

39

131-1180

LOCK NUT,1/4"-20, GA

VALVE ASSY - steering (See figure 22)

1шт.

40

H596304

PUMP

ASSY - propulsion (See figure 18)

1шт.
