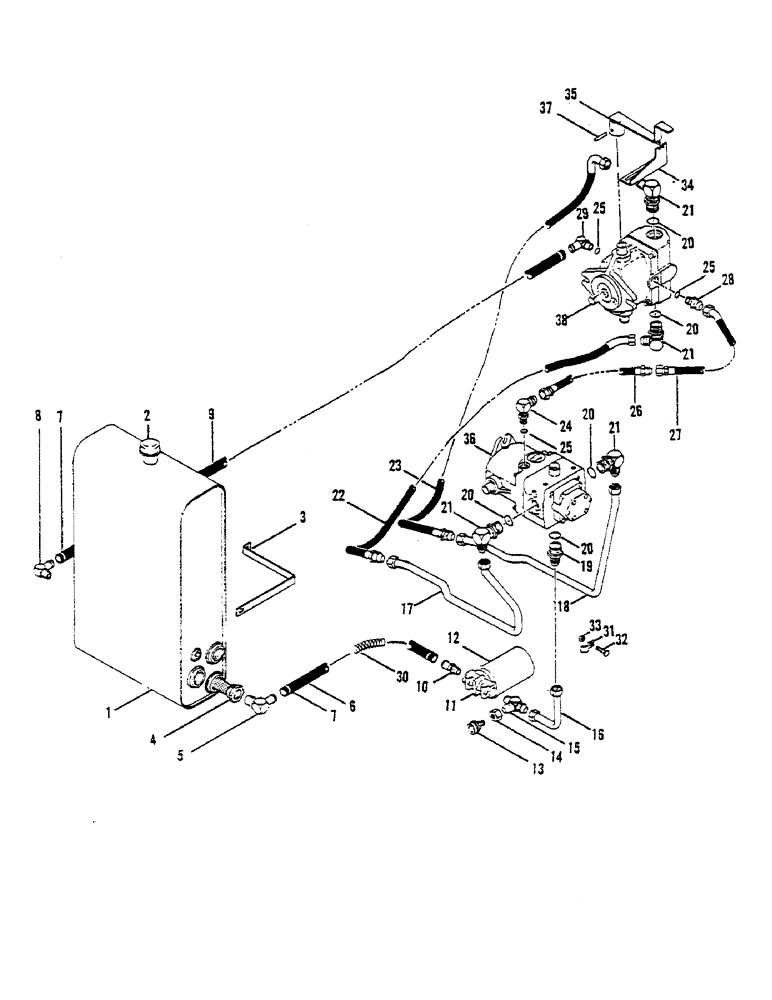

Запчасти Case 30 (08) - HYDRAULIC SYSTEM - PROPULSION CIRCUIT

1

H621474

TANK - oil reservoir

1шт.

2

H327833

CAP & DIPSTICK ASSY

1шт.

3

H328526

BAND - tank mounting

1шт.

4

H151399

FILTER STRAINER

SCREEN FILTER

1шт.

5

217-330

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1" Male NPTF

ELBOW - 90 degrees (1 MP x 3/4 hose)

1шт.

6

H317271

HOSE

(3/4 x 30)

1шт.

7

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

4шт.

8

217-135

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

- 90 degrees (3/4 MP x 3/4 hose)

1шт.

9

H338087

HOSE

(3/4 x 68)

1шт.

10

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

CONNECTOR (3/4 MP x 3/4 hose)

1шт.

11

H616508

FILTER HEAD

HEAD ASSY - filter

1шт.

12

H311647

HYDRAULIC OIL FILTER

ELEMENT - filter

1шт.

13

H287466

GAUGE ASSY.

VACUUM INDICATOR

1шт.

14

H288993

CAP

- special

1шт.

15

218-616

TEE,1 1/16"-12, 37 Degree x 3/4"-14, NPTF Run

(3/4 MP x 1-1/16 JIC)

1шт.

16

H598029

TUBE,0.75" OD x 4.812, 3.25" L

(3/4)

1шт.

17

H584615

TUBE,0.75" OD

(3/4)

1шт.

18

H584607

TUBE,0.75" OD

(3/4)

1шт.

19

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR (1-5/16 ORB x 1-1/16 JIC M)

1шт.

20

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

O RING - (1-5/16)

5шт.

21

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degrees (1-5/16 ORB x 1-1/16 JIC M)

4шт.

22

H277368

HOSE ASSY.

HOSE & TUBE (3/4 x 51 - 1-1/6 JIC M x 3/4 x 45 degree tube)

1шт.

23

H277376

HOSE ASSY.

HOSE & TUBE (3/4 x 55 - 1-1/16 JIC M x 3/4 x 90 degree tube)

1шт.

24

218-5282

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

- 90 degree (3/4 ORB x 1-1/16 JIC M)

1шт.

26

H244418

HOSE ASSY.

HOSE (3/4 x 38 - 1-1/16 JIC M x 1-1/16 JIC M Fe Sw)

1шт.

27

H256487

HOSE ASSY.

HOSE & TUBE (3/4 x 25 - 1-1/16 JIC Fe Sw x 3/4 x 45 degree tube)

1шт.

28

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

CONNECTOR (3/4 ORB x 1-1/16 JIC M)

1шт.

29

217-364

FITTING,90 Degree Elbow, 3/4" Hose Barb x 3/4" - 16 Male ORB

ELBOW - 90 degree (3/4 ORB x 3/4 hose)

1шт.

30

H309906

SPRING

- hose

1шт.

31

H247965

CLAMP

- tube

1шт.

32

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

33

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT (5/16 NC hex - lock)

1шт.

34

H615765

LEVER

- motor speed control

1шт.

35

H277012

CHANNEL

BRACKET - lever

1шт.

36

H596304

PUMP

ASSY - propulsion (See figure 18)

1шт.

37

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

1шт.

38

H585299

MOTOR

PROPULSION MOTOR ASSY (See figure 18)

1шт.

25

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

O RING (3/4)

3шт.
