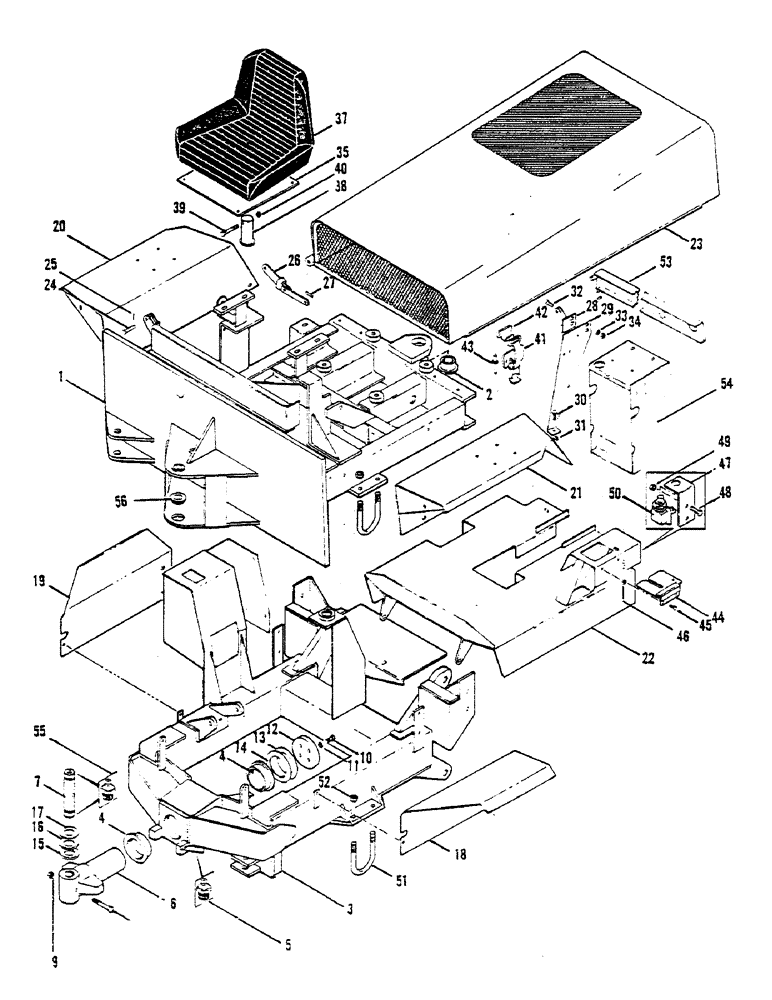

Запчасти Case 30 (04) - MAIN FRAMES, FLOORPLATES, HOOD

1

H618967

FRONT FRAME ASST

1шт.

2

H334730

BUSHING

2шт.

3

H619387

REAR FRAME ASSY

1шт.

4

H150193

BUSHING

2шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING

1шт.

6

H181867

AXLE PIN

PIVOT SHAFT

1шт.

7

H182634

PIVOT PIN

PIN - pivot

1шт.

8

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1шт.

9

131-1182

LOCK NUT,1/2"-13, GA

NUT (1/2 NC hex - lock)

1шт.

10

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

12

H164251

PLATE

CAP PLATE

1шт.

13

H169748

SHIM,.062" Thk

1шт.

14

H169755

SHIM,.030" Thk

1шт.

15

H164962

BEARING WASHER

WASHER (.250)

1шт.

16

H173385

BEARING WASHER

WASHER (.188)

1шт.

17

H263913

WASHER

(.032)

1шт.

18

H599142

FENDER - left rear

1шт.

19

H599159

FENDER - right rear

1шт.

20

H563155

FENDER - right front

1шт.

21

H558460

FENDER

- left front

1шт.

22

H619395

FLOOR PLATE ASSY

1шт.

23

H621920

HOOD

ASSY

1шт.

24

H025957

PIN - clevis (Hood retainer)

2шт.

25

132-340

COTTER PIN,5/32" x 3/4"

5/32" x 3/4"

2шт.

26

H532168

RETAINER

HOOD RETAINER ASSY

1шт.

27

A70250

PIN

- hair

1шт.

28

H558445

SUPPORT

- rear hood

1шт.

29

H188227

SUPPORT

- rear hood

1шт.

30

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

31

230-4216

LOCK NUT,3/8"-16, GA

NUT (3/8 NC hex - lock)

1шт.

32

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

33

195-102

WASHER,1/4"

(5/16 - flat)

2шт.

34

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT (5/16 NC hex - lock)

2шт.

35

H619437

SEAT MOUNTING ASSY

1шт.

37

H594556

SEAT

ASSY

1шт.

38

H315531

AXLE PIN

PIN - seat retaining

1шт.

39

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

40

230-4216

LOCK NUT,3/8"-16, GA

NUT (3/8 NC hex - lock)

1шт.

41

H196758

LATCH ASSY.

HOOD CATCH

2шт.

42

H196766

ROD

HOOD STRIKE

2шт.

43

151-539

RIVET,Pop, 3/16" x .450"

- pop (5/32 x 3/4)

8шт.

44

H562546

LATCH

- start

1шт.

45

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

46

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - (5/16 NC hex - lock)

2шт.

47

H200998

ANGLE

- start button

1шт.

48

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

49

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

50

H201285

SWITCH

START BUTTON

2шт.

51

H184135

HARDWARE

U BOLT

4шт.

52

131-1130

LOCK NUT,5/8"-11, GA

NUT (1/2 NC hex - lock)

8шт.

53

H578013

PANEL

INSTRUMENT PANEL

1шт.

54

H578542

CONSOLE

CONTROL CONSOLE

1шт.

55

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE GITTING

2шт.

56

H179077

BUSHING

(Part of H618967 - front frame)

2шт.
