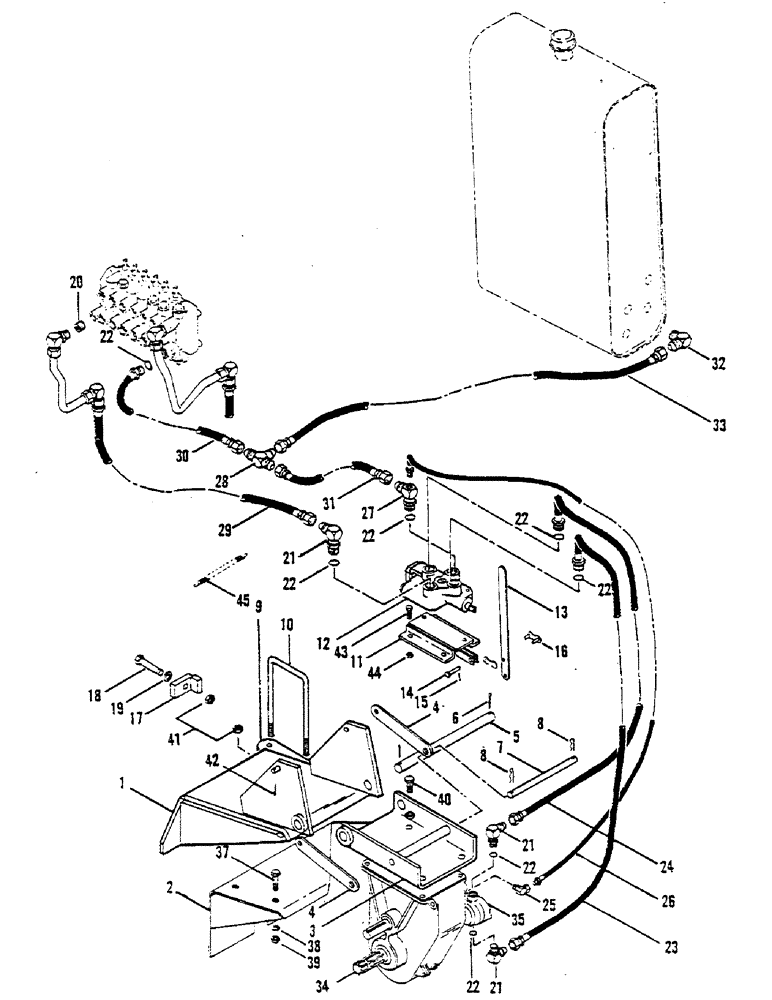

Запчасти Case 30 (32) - HYDRA-BORING ATTACHMENT

1

H564039

MOUNTING PARTS

MOUNTING BRACKET

1шт.

2

H599167

FENDER

- right rear

1шт.

3

H553388

CHANNEL

MOUNTING CHANNEL

1шт.

4

H175430

LINK

2шт.

5

H175448

SHAFT

- pivot

1шт.

6

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

2шт.

7

H175414

PIN

SHAFT - lock

1шт.

8

A70250

PIN

HAIR PIN

2шт.

9

H206649

PLATE

- U, Serial Range: bolt-frame

1шт.

10

H206623

U-BOLT

U BOLT

1шт.

11

H621912

BRACKET - valve

1шт.

12

H544718

LOCK VALVE

HYDRA-BORE VALVE ASSY

1шт.

Refer to Davis Hydra-Bore Attachment Parts Catalog for detail parts list catalog P/N H005827.

1шт.

13

H071415

LEVER VALVE

1шт.

14

H035279

PIN - clevis

1шт.

15

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

16

B12505

LINK

VALVE LINK (ASA #50 conn)

1шт.

17

H565341

BRACKET

- mounting

1шт.

18

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

HHCS - (1/2 x 2-1/2 NC)

1шт.

19

195-105

WASHER,7/16"

(1/2 - flat)

1шт.

20

221-842

DRAIN PLUG,Hex Soc, 3/8"-18 NPTF

PLUG - pressure beyond (Level seal)

1шт.

21

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

(7/8 ORB x 7/8 JIC Fe Sw) 90º, 7/8"-14, 37º x 7/8"-14, O-Ring

3шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING

7шт.

23

H091892

HOSE (1/2 x 48 - 7/8 ORB x 7/8 JIC Fe Sw)

1шт.

24

H109470

HOSE,12.70 mm ID x 863.60 mm, SAE 100R1

1шт.

25

218-933

ELBOW,90 Degree, 1/8" NPTF Male x 1/8" NPSM Fem Sw

- 90 degrees

1шт.

26

H071407

HOSE (3/16 x 39 - 1/8 MP x 1/4 MP)

1шт.

27

H211557

ADAPTER

ELBOW - 90 degree, special

1шт.

28

218-595

TEE,7/8"-14, 37 Degree

(7/8 JIC M)

1шт.

29

H332544

HOSE (1/2 x 50 - 7/8 JIC x 7/8 JIC Fe Sw)

1шт.

30

H211821

HYDRAULIC HOSE,12.70 mm ID x 1041.40 mm, SAE 100R1

12.70 mm ID x 1041.40 mm, SAE 100R1

1шт.

31

H246298

HYDRAULIC HOSE,12.70 mm ID x 660.40 mm, SAE 100R1

12.70 mm ID x 660.40 mm, SAE 100R1

1шт.

32

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- 90 degree (3/4 MP x 7/8 JIC M)

1шт.

33

H215798

HOSE (1/2 x 69 - 7/8 JIC Fe Sw ends)

1шт.

34

H511105

GEARBOX ASSY

GEAR CASE ASSY

1шт.

Refer to Davis Hydra-Bore Attachment Parts Catalog for detail parts list catalog P/N H005827.

1шт.

35

H555912

MOTOR

& GEAR ASSY

1шт.

Refer to Davis Hydra-Bore Attachment Parts Catalog for detail parts list catalog P/N H005827.

1шт.

37

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

38

195-103

WASHER,5/16"

(3/8 - flat)

2шт.

39

230-4216

LOCK NUT,3/8"-16, GA

NUT (3/8 NC hex - lock)

2шт.

40

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

4шт.

41

131-1182

LOCK NUT,1/2"-13, GA

NUT (1/2 NC Hex - lock)

10шт.

42

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

43

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

44

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT (5/16 NC hex - lock)

4шт.

45

H052548

SPRING - hose retainer

2шт.
