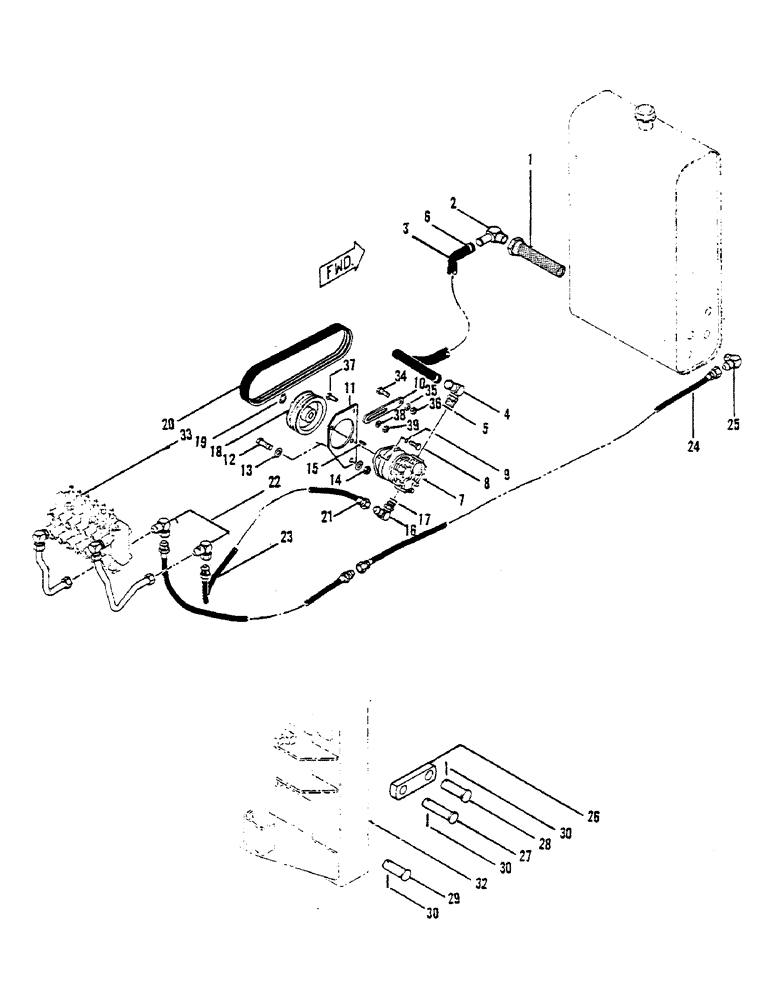

Запчасти Case 30 (30) - D-100 BACKHOE ATTACHING KIT

1

H151399

FILTER STRAINER

SCREEN FILTER

1шт.

2

217-330

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1" Male NPTF

ELBOW - 90 degrees (1 MP x 3/4 hose)

1шт.

3

H212951

HOSE

- suction (3/4 x 24)

1шт.

4

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW - 90 degrees (1-1/16 ORB x 3/4 hose)

1шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

6

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

7

H554907

PUMP

BACKHOE PUMP ASSY (See Figure 20)

1шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

H163154

LINK

- adjusting

1шт.

11

H204651

PLATE - pump mounting

1шт.

12

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

13

195-105

WASHER,7/16"

(1/2 - flat)

2шт.

14

131-1182

LOCK NUT,1/2"-13, GA

NUT (1/2 NC hex - flat)

1шт.

15

H035147

KEY (3/16 sq. x 49/64)

1шт.

16

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

(7/8 ORB - 7/8 JIC M) 90º, 7/8"-14, 37º x 7/8"-14, O-Ring

1шт.

17

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

1шт.

18

H203521

SHEAVE - pump

1шт.

19

A27521

SNAP RING,#68, Ext

Ring, Snap, #68, Ext

1шт.

20

H205781

BELT

- drive

1шт.

21

H323964

HOSE ASSY.

HOSE (1/2 x 83 - 7/8 JIC Fe Sw ends)

1шт.

22

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 (7/8 JIC M x 7/8 JIC Fe Sw)

2шт.

23

H218446

HOSE ASSY.

HOSE (1/2 x 26- 7/8 JIC M ends)

1шт.

24

H215798

HOSE (1/2 x 69 - 7/8 JIC Fe Sw ends)

1шт.

25

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- 90 degree (3/4 MP x 7/8 JIC M)

1шт.

26

H323543

LINK - backhoe support

2шт.

27

H070623

PIN (1 x 3-1/4 - clevis)

2шт.

28

H071621

PIN (1-1/8 x 2-5/8 - clevis)

2шт.

29

H143974

CLEVIS COUPLING

PIN (1 x 2-7/8 - clevis)

2шт.

30

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

4шт.

32

H514471

FRAME

BACKHOE MAIN FRAME

1шт.

Davis D-100 Backhoe Owners Manual and parts catalog for further parts for the D-100 backhoe. Catalog part no. P/N H005843.

1шт.

33

H513788

LOCK VALVE

BACKHOE CONTROL VALVE ASSY

1шт.

Davis D-100 Backhoe Owners Manual and parts catalog for further parts for the D-100 backhoe. Catalog part no. P/N H005843.

1шт.

34

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

35

195-103

WASHER,5/16"

(3/8 x flat)

3шт.

36

230-4216

LOCK NUT,3/8"-16, GA

NUT (3/8 NC hex - lock)

1шт.

37

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

38

195-102

WASHER,1/4"

(5/16 - flat)

1шт.

39

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT (5/16 NC hex - lock)

1шт.
