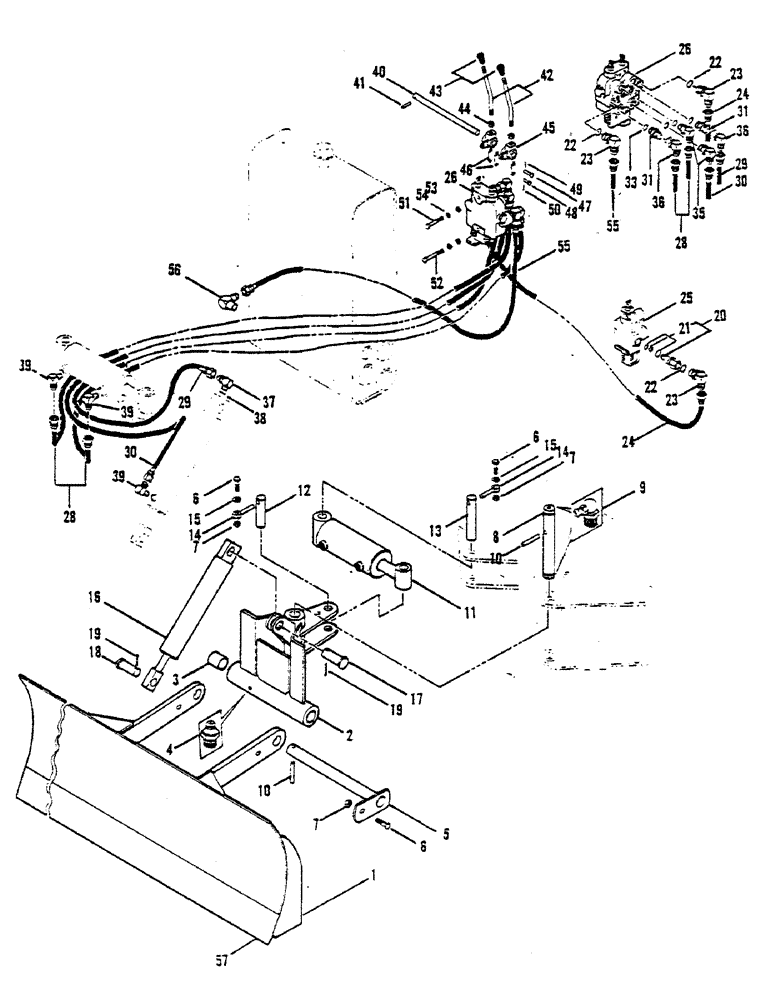

Запчасти Case 30 (28) - BACKFILL BLADE

1

H632885

BACKFILL BLADE ASSY

1шт.

2

H632893

BACKFILL PIVOT ASSY

1шт.

3

H127852

BUSHING

- pivot

1шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING

1шт.

5

H549006

PIVOT

SHAFT ASSY - lift

1шт.

6

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

7

131-1182

LOCK NUT,1/2"-13, GA

NUT (3/8 NC hex lock)

3шт.

8

H182527

AXLE PIN

PIN - pivot

1шт.

9

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

10

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

2шт.

11

H586172

CYLINDER

SWING CYLINDER ASSY (See page 24)

1шт.

12

H236448

PIN

- hd end swing cylinder

1шт.

13

H056960

PIN - rod end swing cylinder

1шт.

14

H313981

PIN

- retainer

2шт.

15

195-103

WASHER,5/16"

(3/8 - flat)

2шт.

16

H504076

CYLINDER BLOCK

LIFT CYLINDER ASS - lift (See figure 24)

1шт.

17

H071621

PIN (1-1/8 x 2-11/16) hd end lift cylinder

1шт.

18

H065011

PIN (1 x 2-5/8) rod end lift cylinder

1шт.

19

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

2шт.

20

D61608

SLEEVE

PRESSURE BEYOND ADAPTER

1шт.

21

H587345

SEAL ASSY.

SEAL KIT - pressure beyond adapter

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

O RING

1шт.

23

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 7/8 ORB x 3/4 JIC M

3шт.

24

D51686

HOSE

(3/8 x 51 - 3/4 MIC Fe Sw ends)

1шт.

25

H599027

VALVE

STEERING VALVE ASSY (See page 22)

1шт.

26

H567487

VALVE

BACKFILL VALVE ASS (See page 22)

1шт.

28

H323857

HOSE ASSY.

HOSE (3/8 x 94 - 3/4 JIC Fe Sw ends)

2шт.

29

H323865

HOSE (3/8 x 114 - 3/4 JIC Fe Sw ends)

1шт.

30

H323873

HOSE ASSY.

HOSE (3/8 x 126 - 3/4 JIC Fe Sw ends)

1шт.

31

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - (3/4 ORB x 3/4 JIC M)

2шт.

35

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree (3/4 ORB x 3/4 JIC M)

2шт.

36

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree (3/4 ORB x 3/4 JIC Fe Swv)

2шт.

37

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree (9/16 ORB x 3/4 JIC M)

1шт.

38

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

39

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

- 90 degree (3/8 MP x 3/4 JIC M)

3шт.

40

H210377

SHAFT

1шт.

41

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1 1/8", Slotted

1шт.

42

H182063

HANDLE

- lift & swing

2шт.

43

A14051

GRIP

KNOB

2шт.

44

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

45

H275255

CRANK LEVER

LEVER CASTING

2шт.

46

H185066

DRAG LINK

VALVE LINK

4шт.

47

D23693

AXLE PIN

PIN - clevis (1/4 x 1)

2шт.

48

H035279

PIN - clevis (3/16 x 57/64)

2шт.

49

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

50

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

51

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

1шт.

52

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

53

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT (5/16 NC hex - lock)

2шт.

54

195-102

WASHER,1/4"

(5/16 flat)

2шт.

55

H323881

HYDRAULIC HOSE,9.52 mm ID x 2032.00 mm, SAE 100R1

(3/4 JIC Fe Swv Ends) 9.52 mm ID x 2032.00 mm, SAE 100R1

1шт.

56

218-1056

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, NPTF

- 90 degree (3/4 MP x 3/4 JIC M)

1шт.

57

H171579

BLADE

(Part of H632885)

1шт.

33

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

O RING

4шт.
