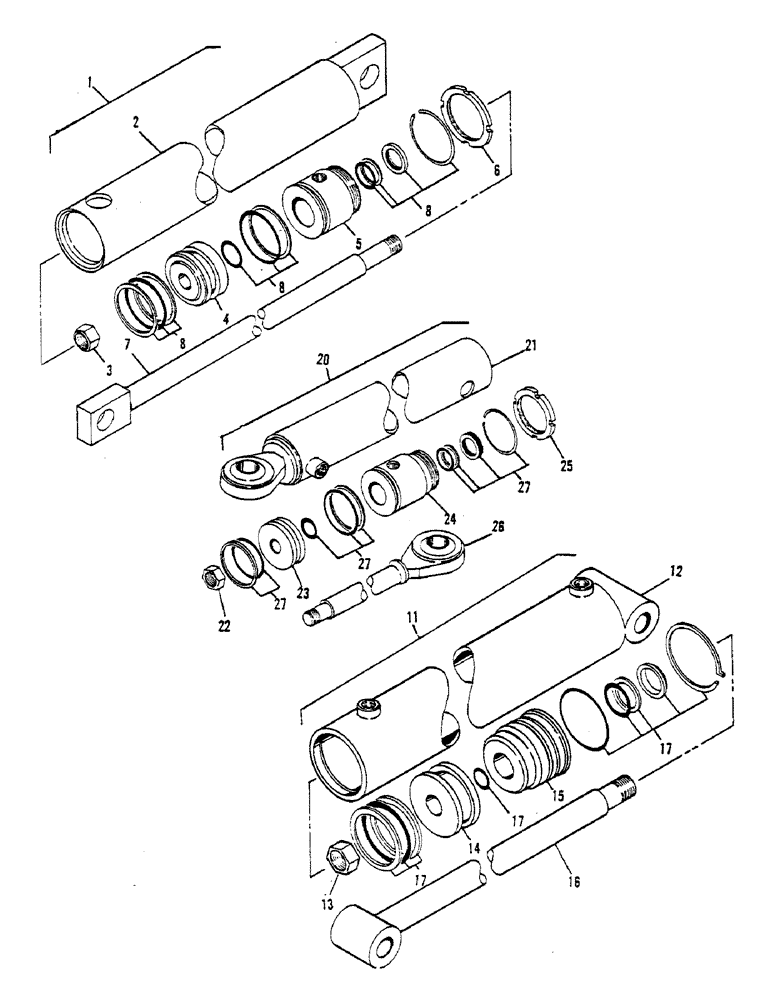

Запчасти Case 30 (24) - STEERING CYLINDER ASSEMBLY, BACKFILL BLADE LIFT & CYLINDER ASSEMBLIES

1

H504076

CYLINDER BLOCK

BACKFILL BLADE LIFT CYL ASM

1шт.

2

H072215

BARREL ASM

1шт.

3

131-172

LOCK NUT,3/4"-16, GA

NUT (3/4-16 reg - lock)

1шт.

4

H032540

PISTON

1шт.

5

H070078

BEARING

1шт.

6

T22283

NUT

BEARING NUT (2-1/4 - 16)

1шт.

7

H066571

PISTON ROD

1шт.

8

H507350

GASKET KIT

SEAL REPAIR KIT

1шт.

11

H586172

CYLINDER

BACKFILL BLADE ANGLE CYL ASM

1шт.

12

H594978

JACK BODY

BARREL ASM

1шт.

13

131-370

LOCK NUT

NUT (Self locking)

1шт.

14

H223073

PISTON ASSY.

PISTON

1шт.

15

H223362

GLAND

1шт.

16

H594960

ASSEMBLY

PISTON ROD ASM

1шт.

17

H571133

SEAL ASSY.

SEAL REPAIR KIT

1шт.

20

H547331

CYLINDER

STEERING CYLINDER ASM

1шт.

21

H171942

STEERING CYLINDER

BARREL ASM

1шт.

22

131-172

LOCK NUT,3/4"-16, GA

NUT (3/4 NF hex - lock)

1шт.

23

H171926

PISTON

1шт.

24

H070078

BEARING

1шт.

25

H745786

BEARING LOCK NUT

BEARING NUT

1шт.

26

H171959

PITMAN

PISTON ROD ASM

1шт.

27

H171983

GASKET KIT

SEAL REPAIR KIT

1шт.
