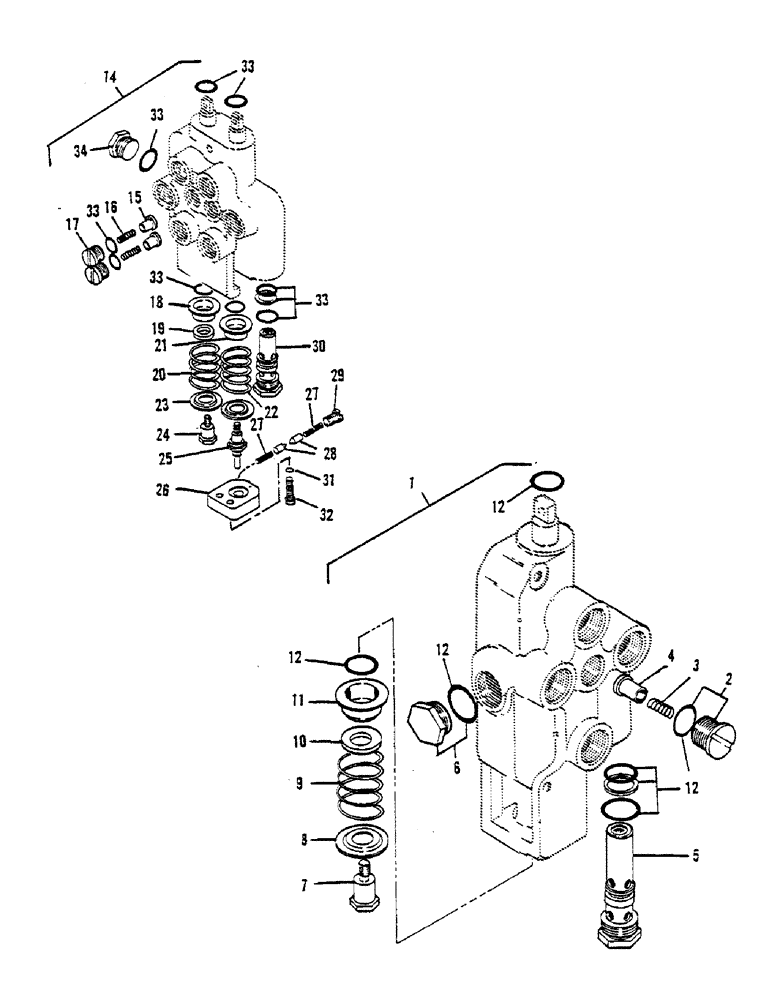

Запчасти Case 30 (22) - STEERING AND BACKFILL BLADE VALVE ASSEMBLIES

1

H599027

VALVE

STEERING VALVE ASM

1шт.

2

H047506

PLUG ASM - lift check (Includes O ring)

1шт.

3

H047514

SPRING - lift check

1шт.

4

H052894

PLUNGER - lift check

1шт.

5

H102053

VALVE

RELIEF VALVE ASM (2500 P.S.I) (Includes O rings)

1шт.

6

86512512

PLUG,7/8" - 14 ORB

Assy Hex Hd, 7/8"-14 ORB

1шт.

7

H138248

SCREW,1/4" - 20 x 7/16"

- spool

1шт.

8

F59116

WASHER

SHALLOW

1шт.

9

F59118

SPRING

- spool

1шт.

10

H746164

WASHER

- 1

1шт.

11

H052902

WASHER - deep

1шт.

12

H566117

SEAL REPAIR KIT

1шт.

14

H567487

VALVE

BACKFILL BLADE VALVE ASM

1шт.

15

H052894

PLUNGER - lift check

2шт.

16

H047514

SPRING - lift check

2шт.

17

H047506

PLUG - lift check (Includes O ring)

2шт.

18

H052902

WASHER - deep

1шт.

19

H746164

WASHER

1шт.

20

H220517

SPRING

SPOOL CENTERING

1шт.

21

H138271

WASHER

- deep

1шт.

22

F59118

SPRING

- spool centering

1шт.

23

F59116

WASHER

- shallow

2шт.

24

H138248

SCREW,1/4" - 20 x 7/16"

- spool

1шт.

25

H139071

SCREW,1/4" - 20

- spool detent

1шт.

26

H125831

BLOCK

- detent

1шт.

27

H105049

SPRING

- detent

2шт.

28

H104992

PAWL

-detent

2шт.

29

H105015

PLUG

- detent

1шт.

30

F88054

VALVE

RELIEF VALVE - 200 P.S.I. (Includes O rings)

1шт.

31

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

32

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

33

H570036

SEAL

REPAIR KIT

1шт.

34

86512512

PLUG,7/8" - 14 ORB

Assy Hex Hd, 7/8"-14 ORB

1шт.
