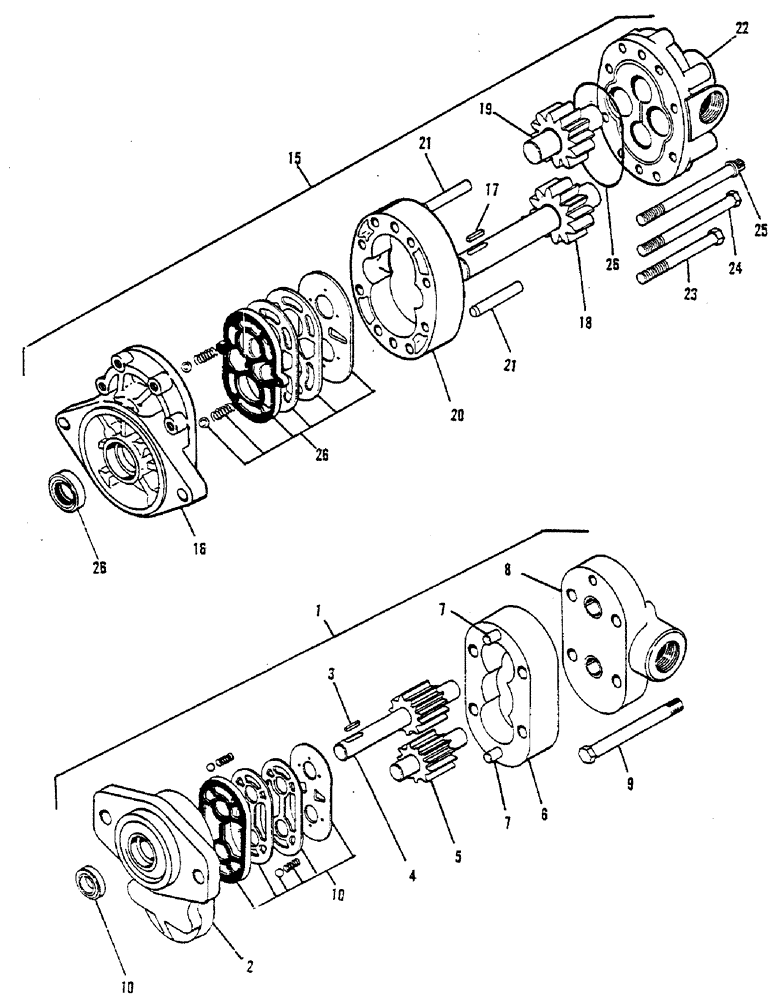

Запчасти Case 30 (20) - STEERING AND BACKHOE PUMP ASSEMBLIES

1

H575886

PUMP

STEERING PUMP ASM

1шт.

2

H089565

FRONT PLATE ASM

1шт.

3

A28035

KEY

(1/8 sq. x 1/2)

1шт.

4

H235945

GEAR

DRIVE GEAR ASM

1шт.

5

H235952

GEAR

IDLER GEAR ASM

1шт.

6

H235960

BODY

1шт.

7

H755413

DOWEL

PIN (1/4 x 1-1/4)

2шт.

8

H235937

BACK PLATE

ASM

1шт.

9

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

4шт.

10

H218388

SEAL ASSY.

SEAL REPAIR KIT

1шт.

15

H554907

PUMP

BACKHOE PUMP ASM

1шт.

16

H501577

PLATE ASSY.

FRONT PLATE ASM

1шт.

17

H035147

KEY (3/16 sq. x 49/64)

1шт.

18

H563080

GEAR WHEEL

DRIVE GEAR

1шт.

19

F88937

GEAR

ILDER GEAR

1шт.

20

F30416

BODY

1шт.

21

F9529

AXLE PIN

DOWEL PIN (5/16 x 1-1/2)

2шт.

22

H562983

LARGE PLATE

BACKPLATE ASM

1шт.

23

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

4шт.

24

113-177

BOLT,Hex, 5/16" - 18 x 3", Gr 5

2шт.

25

166-34

12 PT SCREW,Flg, 5/16" - 18 x 3", Gr 8

12 POINT CAP SCREW (5/16 x 3 NC)

2шт.

26

S89448

SEAL KIT

SEAL REPAIR KIT

1шт.
