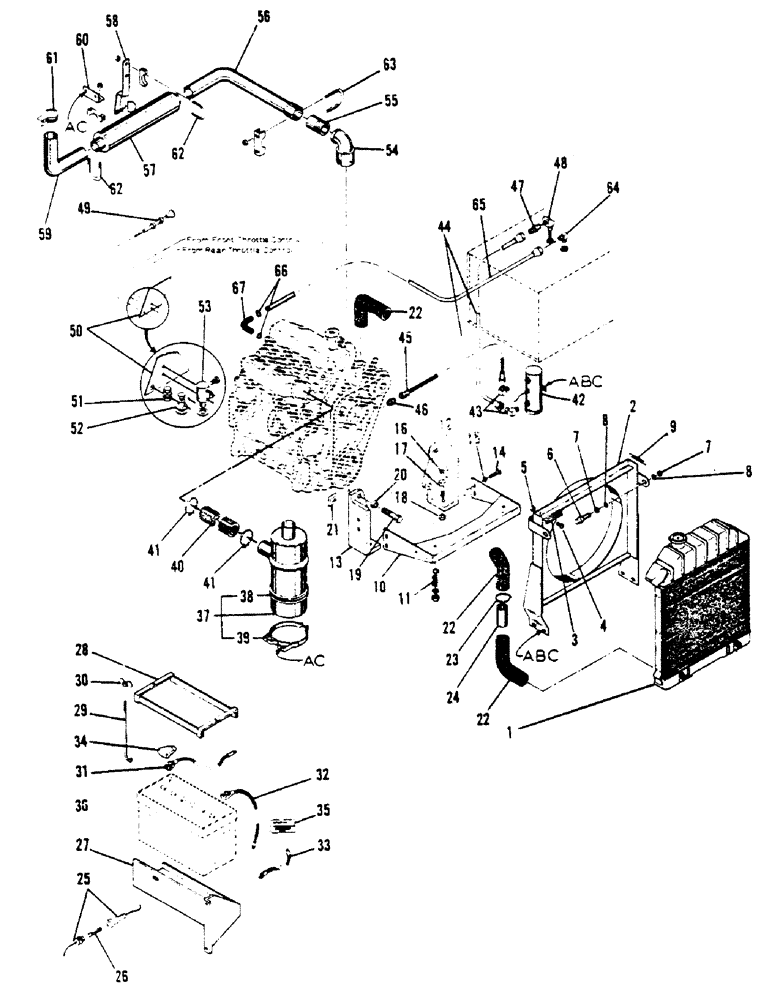

Запчасти Case 1000 (16) - FORD ENGINE INSTALLATION

1

H241463

RADIATOR

1шт.

1

H241489

RADIATOR/OIL COOLER

1шт.

2

H575076

FAN SHROUD

1шт.

2

H590570

FAN SHROUD

1шт.

Spec. no. P16FG05, P16FD06 and up.

1шт.

3

H148312

RUBBER SUPPORT

1шт.

4

H731505

THCS (1/4 x 3/4 NC)

2шт.

5

H736900

NUT

(1/4 NC - jam)

2шт.

6

H148320

ADJUSTABLE BUMPER

2шт.

7

H736900

NUT

(1/4 NC - jam)

4шт.

8

H738443

WASHER

FLAT WASHER (1/4")

4шт.

9

H43224

VALVE SPRING

SPRING

2шт.

10

H575084

RADIATOR SUPPORT

1шт.

11

H196717

VALVE SPRING

SPRING

2шт.

12

H117572

ENGINE MOUNT - right

1шт.

13

H117564

ENGINE MOUNT - left

1шт.

14

H709436

BOLT

HHCS (5/16 x 3/4 NC)

4шт.

15

H738450

WASHER

FLAT WASHER (5/16)

4шт.

16

230-4215

NUT,5/16"-18, GA

NUT (5/16 NC - lock)

4шт.

17

H711556

BOLT

HHCS (5/8 x 6 NC)

2шт.

18

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8 NC - lock)

2шт.

19

H711788

BOLT

HHCS (3/4 x 3 NC)

4шт.

20

H738062

NUT

(3/4 NC - lock)

4шт.

21

H231670

SHIM,.035" Thk

Engine mounting .035" Thk

1шт.

22

RADIATOR HOSES

1шт.

Obtain all parts for your Ford gasoline or diesel from your local authorized Ford industrial dealer. When ordering parts, state serial no., type or model, & options as stamped on serial plate.

1шт.

23

H107698

CLAMP

HOSE CLAMP

6шт.

24

H130468

TUBE,1.5" OD x 4" L

1шт.

25

H576173

FUSE CARTRIDGE

FUSE HOLDER

1шт.

26

H233718

SPARE PART

FUSE

1шт.

27

H536235

BATTERY RACK

1шт.

28

H30833

FUNNEL

BATTERY HOLD DOWN

1шт.

Used on Ford gasoline engine installation only.

1шт.

28

H578302

BATTERY BOX

BATTERY HOLD DOWN

1шт.

Used on Ford diesel engine installation only.

1шт.

29

H43208

BOLT

BOLT - battery hold down

2шт.

30

H746834

NUT, WING

WING NUT

2шт.

31

H116996

CABLE PULLING GRIP

BATTERY CABLE - negative

1шт.

Used on Ford gasoline engine installation only.

1шт.

31

H185306

CABLE PULLING GRIP

BATTERY CABLE - negative

1шт.

Used on Ford diesel engine installation only.

1шт.

32

H519348

NEG BATTERY CABLE

BATTERY CABLE - positive

1шт.

Used on Ford gasoline engine installation only.

1шт.

32

H106096

CABLE PULLING GRIP

BATTERY CABLE - positive

1шт.

Used on Ford diesel engine installation only.

1шт.

33

H139568

CABLE

- solenoid

1шт.

Used on Ford gasoline engine installation only.

1шт.

34

H102681

COVER ASSY

TERMINAL COVER

2шт.

35

H198457

TAG

GROUND CABLE TAG

1шт.

37

H535948

CLEANER ASSY.

AIR CLEANER ASM, Includes: Ref. 38 and 39

1шт.

38

H151969

ELEMENT

FILTER ELEMENT

1шт.

39

H129551

BAND

MOUNTING BAND

2шт.

40

H129569

HOSE ASSY.

AIR CLEANER HOSE

1шт.

41

H42804

HOSE CLAMP

2шт.

42

H576595

PUMP

FUEL PUMP ASM

1шт.

43

H52332

ADAPTER - 90 degrees

2шт.

44

H546002

LINE

FUEL LINE

1шт.

45

H224758

FUEL TUBE

FUEL LINE HOSE

1шт.

Used on Ford diesel engine installation only.

1шт.

46

H152363

FITTING

ADAPTER - straight

1шт.

Used on Ford gasoline engine installation only.

1шт.

46

H236463

ADAPTER - straight

1шт.

Used on Ford diesel engine installation only.

1шт.

47

H130344

FITTING

ADAPTER - straight

1шт.

48

301-001

WITHDRAWAL TUBE

1шт.

49

H124495

CONTROL BLOCK

CHOKE/KILL CONTROL

1шт.

50

H236547

CONTROL CABLE BRACKET

1шт.

51

H245217

WIRE STOP

1шт.

52

H139576

JOINT TURNING

SWIVEL - choke

1шт.

53

H245209

SWIVEL - throttle (Single control)

1шт.

53

H245779

SWIVEL - throttle (Dual control)

1шт.

54

H536359

TUBE NUT

EXHAUST ADAPTER

1шт.

55

H139881

PIPE CLAMP

NIPPLE

1шт.

56

H240093

PIPE CLAMP

EXHAUST PIPE

1шт.

57

H130138

MUFFLER

1шт.

58

H129650

BRACKET

1шт.

59

H102210

ELBOW UNION

EXHAUST ELBOW - 90 degrees

1шт.

60

H103556

MOUNTING CLIP

MOUNTING ANGLE

1шт.

61

H224378

CYLINDER END CAP

RAIN CAP

1шт.

62

H103580

CLAMP

MUFFLER CLAMP WITH NUTS (1-7/8)

1шт.

63

H68403

CLAMP

MUFFLER CLAMP WITH NUTS (2-1/4)

2шт.

64

H127514

FITTING

ADAPTER - 90 degrees

1шт.

65

H561464

BLEED LINE

1шт.

66

H104612

CLAMP

HOSE CLAMP

2шт.

67

H145102

BLEED HOSE

1шт.

a

H709436

BOLT

HHCS (5/16 x 3/4 - NC)

1шт.

b

H738450

WASHER

FLAT WASHER (5/16)

1шт.

c

230-4215

NUT,5/16"-18, GA

NUT (5/16 NC - lock)

1шт.

d

H709865

BOLT

HHCS (3/8 x 1-1/4 - NC)

1шт.

H615104

CONTROL BLOCK

CABLE throttle control

1шт.

d

H709865

BOLT

HHCS (3/8 x 1-1/4 - NC)

1шт.
