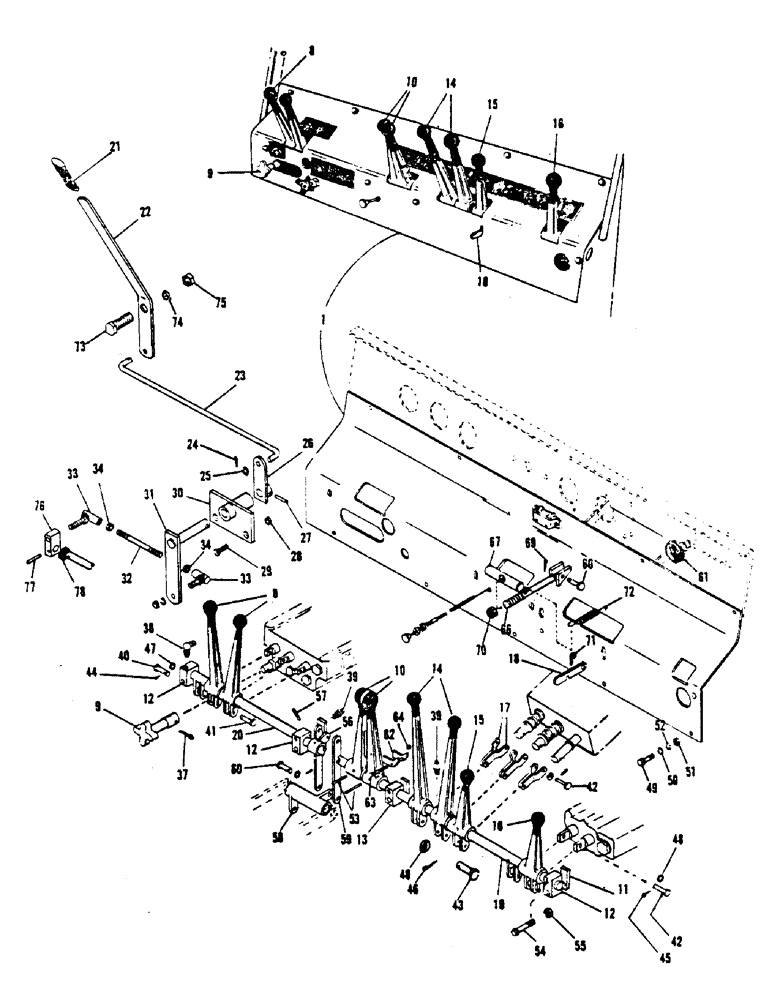

Запчасти Case 1000 (10) - CONTROL LEVERS & LINKAGE

1

H567321

CONTROL PANEL ASM

1шт.

8

H92080

LEVER

- boom & tilt

2шт.

9

H92098

KNOB

VARIABLE SPEED CONTROL KNOB

1шт.

10

H79467

LEVER

- forward & reverse

2шт.

11

H79475

SPACER - bearing block

3шт.

12

H103523

BLOCK

BEARING BLOCK

3шт.

13

H48843

BLOCK

BEARING BLOCK

1шт.

14

H44230

LEVER

- steering

2шт.

15

H171793

LEVER - P.T.O. clutch

1шт.

16

H103598

LEVER

- conveyor

1шт.

17

H79301

DRAG LINK

LEVER LINK

6шт.

18

H174854

SAFETY LATCH - P.T.O. clutch

1шт.

19

H524934

SHAFT - hi-speed control

1шт.

20

H567263

SHAFT - lo-speed control

1шт.

21

H33332

GRIP

HAND GRIP - shifter handle

1шт.

22

H234161

HANDLE

SHIFTER HANDLE

1шт.

23

H234187

SHIFTER ROD

1шт.

24

H739946

KEY

COTTER PIN (1/8" x 1")

2шт.

25

H738468

WASHER

FLAT WASHER (3/8" SAE)

2шт.

26

H576470

LEVER - short

1шт.

27

H742007

PIN

ROLL PIN (3/16" x 1-1/8")

1шт.

28

H738013

LOCK NUT

NUT (3/8" NC - lock)

2шт.

29

H732545

SCREW

F.H.C.S. (3/8" x 1-1/4" - skt. hd)

2шт.

30

H576462

MOUNTING BLOCK

1шт.

31

H576488

LEVER - short

1шт.

32

H234294

ROD

THREADED ROD

1шт.

33

H169920

BALL JOINT

1шт.

34

H736769

NUT

(1/4" NF - hex)

2шт.

37

H740282

PIN, SPLIT (COTTER)

COTTER PIN (3/16" x 1")

1шт.

38

H745364

FITTING

GREASE FITTING - 90 degrees - drive

2шт.

39

H745331

FITTING

GREASE FITTING - straight - drive

8шт.

40

H32961

CLEVIS COUPLING,7.94mm OD x 29.34mm L

CLEVIS PIN (3/16" x 1-7/64)

4шт.

41

H32979

CLEVIS COUPLING

CLEVIS PIN (3/16" x 1-13/32")

2шт.

42

H44289

CLEVIS COUPLING

CLEVIS PIN (5/16" x 1-1/8")

2шт.

43

H31708

CLEVIS PIN

(5/16" x 1-3/8")

3шт.

44

H739623

PIN

COTTER PIN (1/16" x 1/2")

6шт.

45

H739920

SPARE PART

COTTER PIN (1/8" x 3/4")

2шт.

46

H739771

HARDWARE

COTTER PIN (3/32" x 3/4")

5шт.

47

H738435

X

FLAT WASHER (3/16" SAE)

6шт.

48

H738450

WASHER

FLAT WASHER (5/16" SAE)

7шт.

49

H709451

BOLT (SPREADER)

HHCS (5/16" x 1" NC)

10шт.

50

H738450

WASHER

FLAT WASHER (5/16" SAE)

10шт.

51

230-4215

NUT,5/16"-18, GA

NUT (5/16" NC - lock)

10шт.

53

H742379

ROLL

PIN (1/4" x 1-1/4")

2шт.

54

H709501

BOLT

HHCS (5/16" x 2-1/4" NC)

4шт.

55

230-4215

NUT,5/16"-18, GA

NUT (5/16" NC - lock)

4шт.

56

H567149

F & R CONTROL PIVOT ASM

1шт.

57

H742007

PIN

ROLL PIN (3/16" x 1-1/8")

1шт.

58

H567156

F & R ROCKER ASM

1шт.

59

H232058

LINK

2шт.

60

H44206

CLEVIS COUPLING,7.94mm OD x 27.78mm L

CLEVIS PIN (5/16" x 1")

2шт.

61

H582312

CONTROL

THROTTLE CONTROL

1шт.

62

H581256

LEVER LOCK

1шт.

63

H752949

S.H.C.S. (3/16" x 1-3/4" NC)

1шт.

64

H755512

NUT

(3/16" NC - lock)

1шт.

66

H99085

THREADED BAR - brake lock, Serial Range: -5068

1шт.

67

H99093

ROUND BAR - brake lock, Serial Range: -5068

1шт.

68

H44529

AXLE PIN

CLEVIS PIN (3/16" x 3/4"), Serial Range: -5068

1шт.

69

H739623

PIN

COTTER PIN (1/16" x 1/2"), Serial Range: -5068

1шт.

70

H735779

NUT (1/4" NC), Serial Range: -5068

1шт.

71

H739755

PIN, SPLIT (COTTER)

COTTER PIN (3/32" x 1/2"), Serial Range: -5068

1шт.

72

H43224

VALVE SPRING

SPRING - lever return, Serial Range: -5068

1шт.

73

H711408

BOLT

HHCS (5/8" x 2-1/4" NC)

1шт.

74

H49270

SPACER

1шт.

75

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8" NC - lock)

1шт.

76

H101543

ADAPTER

- shifter

1шт.

77

H741991

PIN

ROLL PIN (3/16" x 1")

1шт.

78

H182097

WASHER

FRICTION WASHER

1шт.
