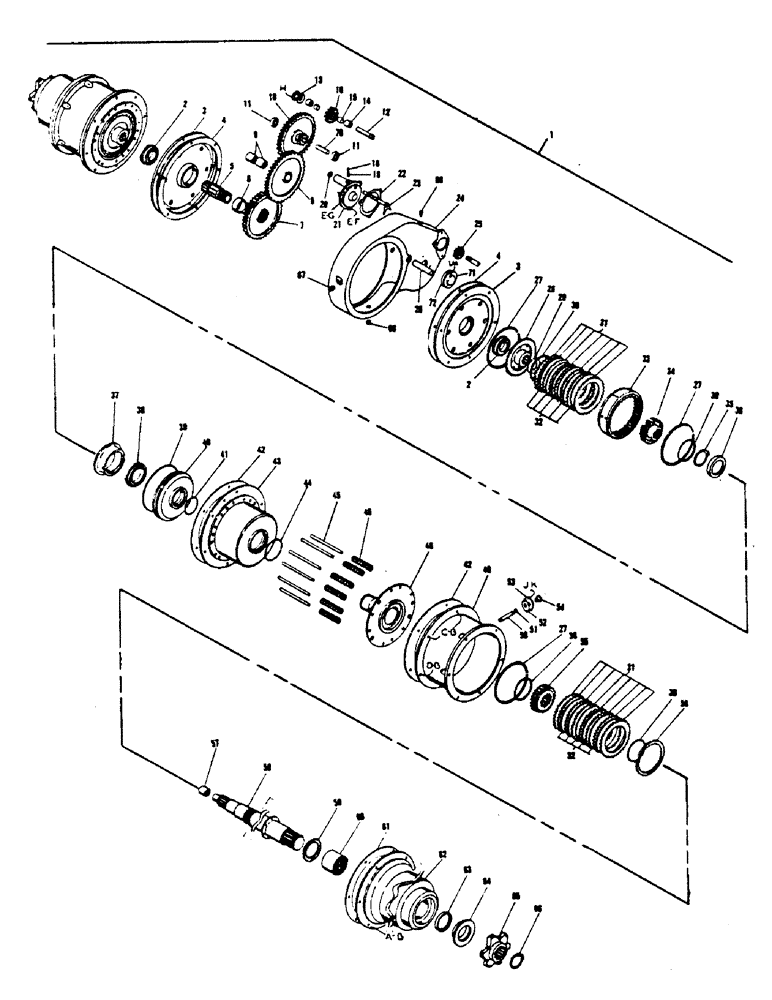

Запчасти Case 1000 (08) - TRANSMISSION

1

H578401

TRANSMISSION

ASM, Includes: Ref. 2 - 72 and A - M

1шт.

2

H747154

BEARING

2шт.

3

H74187

PLATE ASSY.

FACE PLATE

2шт.

4

H74450

GASKET

- face plate

2шт.

5

H74435

SHAFT - spline

1шт.

6

H74427

SPACER - driven gear

1шт.

7

H74419

GEAR WHEEL

GEAR - driven

1шт.

8

H96792

GEAR WHEEL

GEAR - counter - high

1шт.

9

H748020

BEARING

COUNTER BEARING - high - gear

2шт.

10

H96784

GEAR WHEEL

GEAR - counter - low (Up to serial #P165125)

1шт.

10

H237727

GEAR WHEEL

GEAR - counter - low (Serial #P165125 & up)

1шт.

11

H750927

BEARING

COUNTER BEARING - low - gear (Up to serial #P165125)

1шт.

11

H755595

BEARING

COUNTER BEARING - low gear - ball (Serial #P165125 & up)

1шт.

12

H96776

SHAFT

- idler

1шт.

H096776 shaft must be installed or removed from hyd. motor side of gear case only.

1шт.

13

H96768

SPACER - idler

1шт.

14

H748160

BEARING

- idler

2шт.

15

H756635

RACE

INNER RACE - idler bearing

2шт.

16

H96750

GEAR WHEEL

GEAR - idler

1шт.

18

H745463

BALL

- detent

1шт.

19

H36103

VALVE SPRING

SPRING - detent

1шт.

20

H751438

SEAL

OIL SEAL - shifter rod

1шт.

21

H96818

SHIFTER COVER

1шт.

22

H96834

GASKET

- shifter cover

1шт.

23

H96826

ROD

SHIFTER ROD

1шт.

24

H237685

GEAR CASE (Serial #P165125 and up)

1шт.

When replacing gear case on units up to serial #P165124, order H598052 transmission housing and counter gear with bearing kit.

1шт.

25

H96842

GEAR

- pinion - propulsion motor shaft

1шт.

Remove hydraulic motor cautiously. Retrieve H096842 pinion gear before motor shaft is separated from gear. Otherwise gear may drop to bottom of case.

1шт.

26

H74443

SHAFT

- drive gear

1шт.

27

H36343

RING, SNAP

SNAP RING

6шт.

28

H74252

HUB CAP

DRIVE HUB - clutch

2шт.

29

H74328

WASHER

THRUST WASHER

2шт.

30

H751214

RING,#350, 3.363", Ext Spiral

LOCK RING

8шт.

31

H36301

CLUTCH ASSEMBLY

SEPARATOR PLATE - external

32шт.

32

H36319

PLATE, THRUST

CLUTCH PLATE - internal

28шт.

33

H74260

CYLINDER - clutch

2шт.

34

H74278

DRIVEN HUB - clutch

2шт.

35

H751230

RING, SNAP

SNAP RING

2шт.

36

H74385

RETAINER - snap ring

2шт.

37

H74237

PRESSURE PLATE - clutch

2шт.

38

H747360

BEARING,60 mm ID x 95 mm OD x 18 mm

PRESSURE PLATE

2шт.

39

H748814

O-RING

O RING - outer pinion

2шт.

40

H74245

PISTON ASSY.

PISTON

2шт.

41

H748822

O-RING

O RING - inner piston

2шт.

42

H74468

GASKET

4шт.

43

H74195

CYLINDER BLOCK

CYLINDER - oil

2шт.

44

H748830

O-RING

O RING - oil cylinder

2шт.

45

H74369

PIN - spring guide

24шт.

46

H74351

VALVE SPRING

SPRING

24шт.

48

H74229

PLATE ASSY.

PRESSURE PLATE - brakes

2шт.

49

H74203

HOUSING - spacer

2шт.

50

H74807

TUBE,0.538" OD x 4" L

- oil pressure

2шт.

51

H748855

O-RING

O RING - pressure tube

2шт.

52

H74799

GASKET

- cap

2шт.

53

H74781

CAP

- oil tube

2шт.

54

H749895

COUPLING

- reducer

2шт.

55

H74286

HUB - brake

2шт.

56

H74294

WEAR PLATE - brake

2шт.

57

H747980

BEARING

PILOT BEARING

2шт.

58

H161679

CENTER AXLE

AXLE SHAFT

2шт.

59

H74310

WASHER

THRUST WASHER

2шт.

60

H747899

ROLLER BEARING

BEARING - outer axle shaft

2шт.

61

H74476

GASKET

- end housing

2шт.

62

H131839

HOUSING - end

2шт.

63

H749200

PACKING RING

OIL SEAL

2шт.

64

H74336

SHIELD

DIRT SHIELD

2шт.

65

H161349

DRIVE SPROCKET

SPROCKET

2шт.

66

H746636

RING, SNAP

SNAP RING

2шт.

67

H749630

PLUG

- oil level

1шт.

68

H91967

PLUG

- drain

1шт.

69

H58826

BREATHER

AIR BREATHER

1шт.

70

H96776

SHAFT

- low counter gear (Up to serial #P165125)

1шт.

70

H237693

SHAFT - low counter gear (Serial #P165125 & up)

1шт.

71

H237735

CYLINDER BLOCK

BEARING RETAINER (Serial #P165125 & up)

2шт.

72

H237743

GASKET

- bearing retainer (Serial #P165125 & up)

2шт.

a

H710251

SCREW

BOLT (7/16 x 1-1/4 NC)

12шт.

b

H739375

HARDWARE

STAR WASHER (7/16)

24шт.

c

H710269

BOLT

(7/16 x 1-1/2)

4шт.

d

H710285

X

BOLT (7/16 x 2 NC)

8шт.

e

H709857

BOLT

(3/8 x 1 NC)

3шт.

f

H751321

WASHER

DYNA-SEAL WASHER

1шт.

g

H739367

LOCK WASHER

STAR WASHER (3/8 x 3/4)

2шт.

h

H734012

SCREW (10"-32" csk hd hex recess)

4шт.

j

H709113

X

SCREW (1/4"-20" 3/4)

4шт.

k

NLS

NO LONGER SERVICED

STAR WASHER (1/4")

4шт.

l

H709451

BOLT (SPREADER)

HHCS (5/16 x 1 NC)

6шт.

m

H739201

WASHER

LOCK WASHER (5/16)

6шт.
