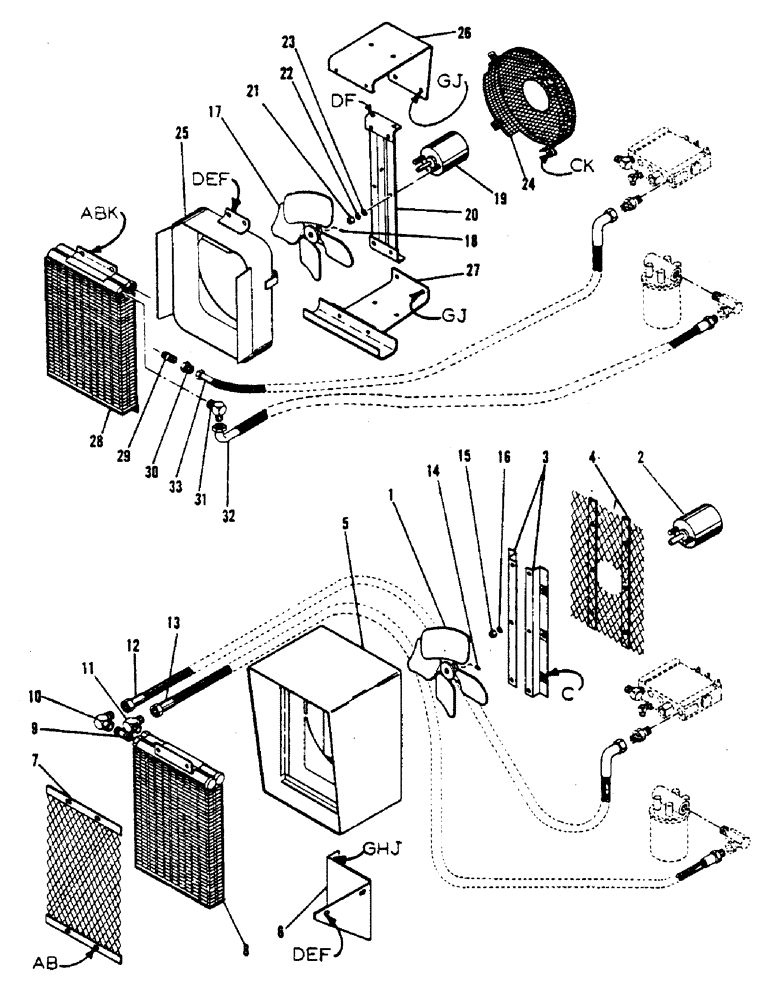

Запчасти Case 1000 (78) - HYDRAULIC OIL COOLERS

1

H191460

FAN

- oil cooler

1шт.

Spec. no. P16WS19, P16FG20, P16FG21 and up.

1шт.

2

H602300

MOTOR, ELECTRIC

FAN MOTOR

1шт.

Spec. no. P16WS19, P16FG20, P16FG21 and up.

1шт.

3

H594838

BRACKET

FAN SUPPORT

2шт.

Spec. no. P16WS19, P16FG20, P16FG21 and up.

1шт.

4

H594820

GUARD

- fan

1шт.

Spec. no. P16WS19, P16FG20, P16FG21 and up.

1шт.

5

H593780

COOLER ASSY.

HOUSING - oil cooler

1шт.

Spec. no. P16WS19, P16FG20, P16FG21 and up.

1шт.

6

H268920

BRACKET

- mounting

1шт.

Spec. no. P16WS19, P16FG20, P16FG21 and up.

1шт.

7

H594812

GUARD ASSY.

GUARD - cooler

1шт.

Spec. no. P16WS19, P16FG20, P16FG21 and up.

1шт.

8

H570044

COOLER ASSY.

HEAT EXCHANGER

1шт.

Spec. no. P16WS19, P16FG20, P16FG21 and up.

1шт.

9

H755033

NIPPLE, LUBE

PIPE NIPPLE

1шт.

Spec. no. P16WS19, P16FG20, P16FG21 and up.

1шт.

10

218-1081

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-18, NPTF

ADAPTER - 90 degrees

1шт.

Spec. no. P16WS19, P16FG20, P16FG21 and up.

1шт.

11

H259242

ELBOW

ADAPTER - 90 degrees

1шт.

Spec. no. P16WS19, P16FG20, P16FG21 and up.

1шт.

12

H261826

HOSE ASSY.

HOSE (1/2" x 89 - 7/8 JIC Fm. Sw. x 90 degrees - 7/8 tube)

1шт.

Spec. no. P16WS19, P16FG20, P16FG21 and up.

1шт.

13

H275883

HOSE (1/2" x 78 - 7/8 JIC Fm. Sw. x 1/2 MP)

1шт.

Spec. no. P16WS19, P16FG20, P16FG21 and up.

1шт.

14

H746057

SET SCREW

CPSS (1/4 - 28 x 1/4 NF)

2шт.

Spec. no. P16WS19, P16FG20, P16FG21 and up.

1шт.

15

H735902

NUT

(#10-32 NF)

2шт.

Spec. no. P16WS19, P16FG20, P16FG21 and up.

1шт.

16

H739185

WASHER

LOCK WASHER (#10)

2шт.

Spec. no. P16WS19, P16FG20, P16FG21 and up.

1шт.

17

H191460

FAN

- oil cooler

1шт.

Up to spec. no. P16WS19, P16FG20, P16FG21.

1шт.

18

H746057

SET SCREW

CPSS (1/4 - 28 x 1/4 NF)

2шт.

Up to spec. no. P16WS19, P16FG20, P16FG21.

1шт.

19

H602300

MOTOR, ELECTRIC

FAN MOTOR

1шт.

Up to spec. no. P16WS19, P16FG20, P16FG21.

1шт.

20

H592816

FAN SUPPORT

1шт.

Up to spec. no. P16WS19, P16FG20, P16FG21.

1шт.

21

H735902

NUT

(#10 - 32 NF)

2шт.

Up to spec. no. P16WS19, P16FG20, P16FG21.

1шт.

22

H739185

WASHER

LOCK WASHER (#10)

2шт.

Up to spec. no. P16WS19, P16FG20, P16FG21.

1шт.

23

H738435

X

FLAT WASHER (#10)

2шт.

Up to spec. no. P16WS19, P16FG20, P16FG21.

1шт.

24

H592832

GUARD - fan

1шт.

Up to spec. no. P16WS19, P16FG20, P16FG21.

1шт.

25

H592741

SHROUD - oil cooler

1шт.

Up to spec. no. P16WS19, P16FG20, P16FG21.

1шт.

26

H266791

BRACKET - upper

1шт.

Up to spec. no. P16WS19, P16FG20, P16FG21.

1шт.

27

H592808

BRACKET - lower

1шт.

Up to spec. no. P16WS19, P16FG20, P16FG21.

1шт.

28

H570044

COOLER ASSY.

HEAT EXCHANGER

1шт.

Up to spec. no. P16WS19, P16FG20, P16FG21.

1шт.

29

H755033

NIPPLE, LUBE

PIPE NIPPLE

1шт.

Up to spec. no. P16WS19, P16FG20, P16FG21.

1шт.

30

218-1038

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, Fem Pipe

ADAPTER

1шт.

Up to spec. no. P16WS19, P16FG20, P16FG21.

1шт.

31

H259242

ELBOW

ADAPTER - 90 degrees

1шт.

Up to spec. no. P16WS19, P16FG20, P16FG21.

1шт.

32

H267120

HOSE (1/2" x 65 - 1/2 MP x 90 degrees - 5/8 tube)

1шт.

Up to spec. no. P16WS19, P16FG20, P16FG21.

1шт.

33

H267138

HOSE (1/2 x 72 - 7/8 JIC Fe. Sw. x 90 degrees - 5/8 tube)

1шт.

Up to spec. no. P16WS19, P16FG20, P16FG21.

1шт.

a

H709113

X

HHCS (1/4" x 3/4" NC)

1шт.

b

H738443

WASHER

FLAT WASHER (1/4)

1шт.

c

H709105

BOLT

HHCS (1/4" x 1/2" NC)

1шт.

d

H709436

BOLT

HHCS (5/16" x 3/4" NC)

1шт.

e

H738450

WASHER

FLAT WASHER (5/16")

1шт.

f

230-4215

NUT,5/16"-18, GA

NUT (5/16 NC - lock)

1шт.

g

H709832

BOLT

HHCS (3/8 x 3/4 NC)

1шт.

h

H738468

WASHER

FLAT WASHER (3/8)

1шт.

j

H738013

LOCK NUT

NUT (3/8 NC - lock)

1шт.

k

H737999

LOCK NUT

NUT (1/4 NC - lock)

1шт.
