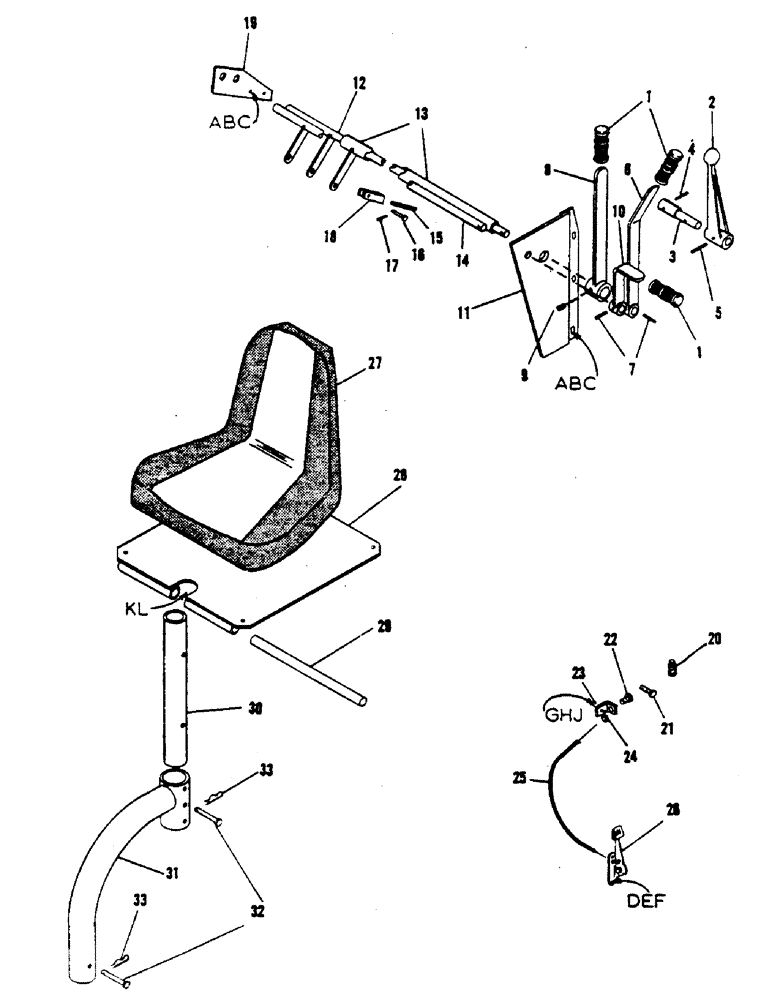

Запчасти Case 1000 (76) - DUAL UP-FRONT CONTROLS

1

H31773

HANDLE

HAND GRIP

3шт.

2

H79467

LEVER

- boom control

1шт.

3

H537365

SHAFT EXTENSION

1шт.

4

H742338

PIN

ROLL PIN (1/4" x 7/8")

1шт.

5

H742379

ROLL

PIN (1/4" x 1-1/4")

1шт.

6

H537308

RIGHT BRAKE LEVER

1шт.

7

H742361

PIN

ROLL PIN (1/4" x 1-1/8")

2шт.

8

H537316

LEFT BRAKE LEVER

1шт.

9

H745992

SET SCREW

CPSS (5/16" x 3/8" - NC)

1шт.

10

H537324

P.T.O. CLUTCH LEVER

1шт.

11

H537290

BEARING PLATE - left

1шт.

12

H567230

SHAFT

- right brake

1шт.

13

H567255

SHAFT TUBE - left brake 27.875" L

1шт.

14

H567248

SHAFT - P.T.O. clutch

1шт.

15

H102962

STUD BOLT

3шт.

16

H44206

CLEVIS COUPLING,7.94mm OD x 27.78mm L

PIN

3шт.

17

H739920

SPARE PART

COTTER PIN (1/8" x 3/4")

3шт.

18

H131110

YOKE - rod end

3шт.

19

H131128

BEARING PLATE - right

1шт.

20

H42796

STOP

WIRE STOP - throttle

2шт.

21

H105262

STUD

- governor control

1шт.

22

H99457

PIPE CLAMP

CONDUIT NUT (7/32")

1шт.

23

H244319

ANGLE BRACKET

1шт.

24

H736785

NUT

(3/8" NF - jam)

1шт.

25

H98137

CONDENSER

THROTTLE CONDUIT & WIRE

1шт.

26

H561589

CONTROL

THROTTLE CONTROL

1шт.

27

H594556

SEAT

ASSEMBLY

1шт.

28

H524181

SEAT MOUNTING BRACKET

1шт.

29

H89391

ROD - seat pivot

1шт.

30

H89383

SEAT COLUMN

1шт.

31

H525089

SEAT STAND

1шт.

32

H101741

AXLE PIN

PIN

2шт.

33

H32292

PIN

HAIRPIN

2шт.

a

H709451

BOLT (SPREADER)

HHCS (5/16" x 1" - NC)

5шт.

b

H735787

NUT (5/16" NC)

5шт.

c

H739201

WASHER

LOCKWASHER (5/16")

5шт.

d

H750430

SCREW

STOVE BOLT (1/4" x 3/4" - NC)

2шт.

e

H735779

NUT (1/4" NC)

2шт.

f

H739193

WASHER, LOCK

LOCKWASHER (1/4")

2шт.

g

H750398

STOVE BOLT (#10 x 3/4" - NC)

1шт.

h

H735761

NUT

(#10 NC)

1шт.

j

H739185

WASHER

LOCKWASHER (#10)

1шт.

k

H710657

BOLT

HHCS - seat tilt adjustment (1/2" x 1-3/4" - NC)

1шт.

l

86632558

JAM NUT,Jam, 1/2"-13, G5

NUT (1/2" NC - jam)

1шт.
