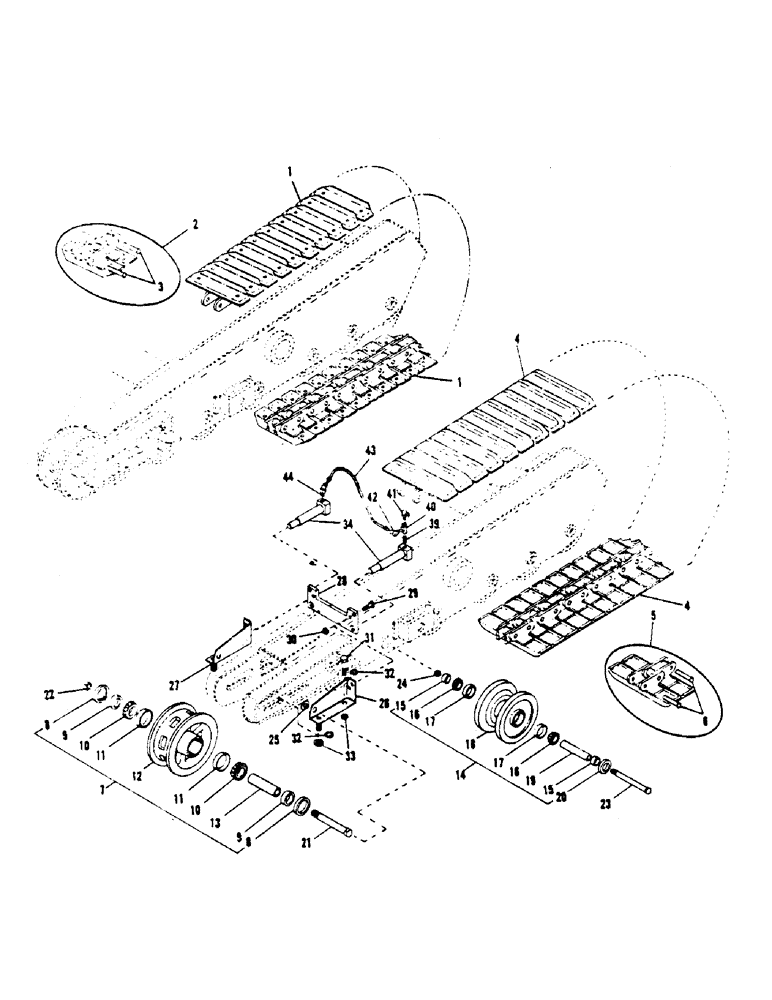

Запчасти Case 1000 (06) - TRACKS, TRACK ROLLERS, TRACK ADJUSTING CYLINDER

1

H575217

TRACK SHOE

TRACK - 10" cleat pad

2шт.

2

H546747

REPAIR SECTION - 10" cleat track, Includes: Ref. 3

1шт.

3

H161521

PIN

CONNECTOR PIN

2шт.

4

H575225

CHAIN (AG)

TRACK - 12" street pad

2шт.

5

H546754

X

REPAIR SECTION - 12" street pad, Includes: Ref. 6

1шт.

6

H161521

PIN

CONNECTOR PIN

2шт.

7

H546101

ROLLER

TRACK ROLLER ASM - front, Includes: Ref. 8 - 13

2шт.

8

H749085

SEAL

OIL SEAL

2шт.

9

H161307

SLEEVE

- seal seat

2шт.

10

H747667

CUP

BEARING CONE

2шт.

11

H747675

CONE

BEARING CUP

2шт.

12

H161265

TRACK ROLLER

1шт.

13

H161281

ROLLER

BEARING SHAFT

1шт.

14

H546119

ROLLER

TRACK ROLLER ASM - small, Includes: Ref. 15 - 20

12шт.

15

H89664

SLEEVE CYLINDER

SLEEVE - seal set

2шт.

16

H747659

BEARING, CONE

BEARING CONE

2шт.

17

H747642

BEARING

CUP

2шт.

18

H161273

SHIFTER ROLLER

TRACK ROLLER

1шт.

19

H161299

SHAFT

BEARING SHAFT

1шт.

20

H749077

OIL SEAL

OIL SEAL

2шт.

21

H712281

BOLT

HHCS (7/8 x 7 NC)

2шт.

22

H738070

NUT

(7/8 NC - lock)

2шт.

23

H720532

BOLT

HHCS (5/8 x 7-1/2 NC-grade 8)

12шт.

24

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8" NC - lock)

12шт.

25

H227041

WASHER

LOAD WASHER - front roller

4шт.

26

H572453

SUPPORT

ROLLER MOUNTING ASM - left, Serial Range: -16550

1шт.

26a

H582999

ROLLER MOUNTING ASM - left 16550 to

1шт.

27

H572461

SUPPORT

ROLLER MOUNTING ASM - right, Serial Range: -16550

1шт.

27a

H583005

ROLLER MOUNTING ASM - right, Start Serial: 16550

1шт.

28

H214122

TIE PLATE

2шт.

29

H709873

BOLT

HHCS (3/8 x 1-1/2" NC)

8шт.

30

H738013

LOCK NUT

NUT (3/8" NC - lock)

8шт.

31

H710640

X

HHCS (1/2 x 1-1/2 NC), Serial Range: -16550

4шт.

31

H711382

BOLT

HHCS (5/8 x 1-3/4 NC), Start Serial: 16550

4шт.

32

H738484

WASHER

FLAT WASHER (1/2"), Serial Range: -16550

8шт.

32

H738500

WASHER

FLAT WASHER (5/8), Start Serial: 16550

8шт.

33

H738039

LOCK NUT

NUT (1/2" NC - lock), Serial Range: -16550

8шт.

33

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8 NC - lock), Start Serial: 16550

8шт.

34

H563254

ADJUSTER

TRACK ADJUSTING CYLINDER ASM

4шт.

39

H748889

FITTING

NIPPLE (1/8" all thread)

2шт.

40

H749986

TEE

- (1/8" pipe)

2шт.

41

H745265

FITTING

GREASE FITTING - 65 degrees

2шт.

42

H98327

PLUG

ELBOW - 90 degrees - outside

2шт.

43

H575241

TUBE,5.187" L

2шт.

44

H231415

ELBOW

- 45 degrees - inside

2шт.
