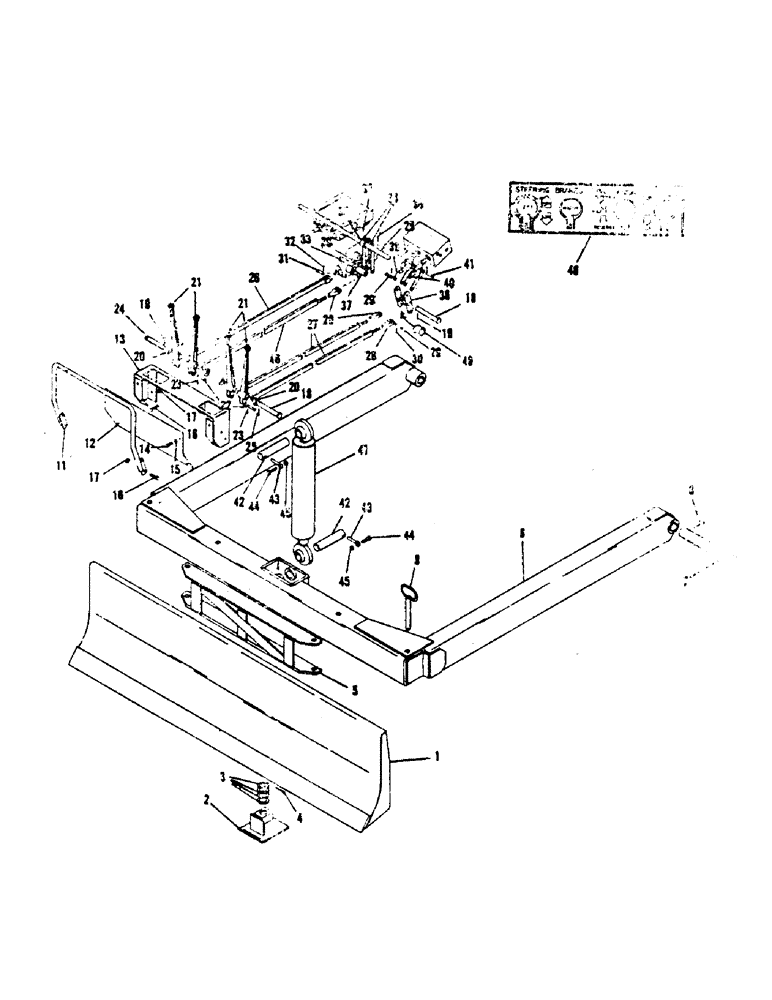

Запчасти Case 1000 (68) - STANDARD DOZER AND CONTROL LINKAGE

1

H574970

BACKFILL BLADE ASM

1шт.

Up to spec. no. P16WS10, P16FG11 & P16FD12.

1шт.

1

H591651

BACKFILL BLADE ASM

1шт.

Spec. no. P16WS10, P16FG11, P16FD12 & up.

1шт.

2

H537050

SHOE (ASSY)

BACKFILL BLADE SKID ASM

2шт.

3

H130526

SPACER

8шт.

4

H740555

PIN, SPLIT (COTTER)

COTTER PIN (1/4" x 2")

2шт.

5

H574962

BACKFILL BLADE LINK

1шт.

Up to spec. no. P16WS10, P16FG11 & P16FD12.

1шт.

5

H591685

BACKFILL BLADE LINK

1шт.

Spec. no. P16WS10, P16FG11, P16FD12 & up.

1шт.

6

H584979

BACKFILL BLADE FRAME

1шт.

7

H251272

PIVOT PIN

PIN (1-1/2" x 14-1/8")

2шт.

8

H740969

PIN, SPLIT (COTTER)

COTTER PIN (3/8" x 2")

2шт.

9

H517607

AXLE PIN

LOOP PIN

3шт.

11

H567180

HANDLE

1шт.

12

H214445

COVER PLATE

1шт.

13

H567164

CONTROL BRACKET

1шт.

14

H709436

BOLT

HHCS (5/16" x 3/4" NC)

4шт.

15

H739201

WASHER

LOCK WASHER (5/16")

4шт.

16

H709451

BOLT (SPREADER)

HHCS (5/16" x 1" NC)

4шт.

17

230-4215

NUT,5/16"-18, GA

NUT (5/16" NC - lock)

4шт.

18

H53439

AXLE PIN

PIN (5/8" x 5-1/32")

2шт.

19

H739946

KEY

COTTER PIN (1/8" x 1")

2шт.

20

H26468

SPACER

6шт.

21

H44230

LEVER

CONTROL LEVER

4шт.

22

H44289

CLEVIS COUPLING

CLEVIS PIN (5/16" x 1-1/8")

4шт.

23

H739920

SPARE PART

COTTER PIN (1/8" x 3/4")

4шт.

24

H43356

PIN (5/8" x 6-5/32")

1шт.

25

H739961

X

COTTER PIN (1/8" x 1-1/4")

3шт.

26

H567198

LINK - backfill blade control

1шт.

27

H567206

LINK - dual control

2шт.

28

H44198

YOKE

CLEVIS YOKE

3шт.

29

H44206

CLEVIS COUPLING,7.94mm OD x 27.78mm L

PIN (5/16" x 1")

7шт.

30

H739920

SPARE PART

COTTER PIN (1/8" x 3/4")

11шт.

31

H44529

AXLE PIN

PIN (3/16" x 3/4")

1шт.

32

H739623

PIN

COTTER PIN (1/16" x 1/2")

3шт.

33

H25841

CLEVIS

PIN (5/8" x 4")

1шт.

34

H232058

LINK - fwd./rev. dual control

2шт.

35

H567149

FWD./REV. CONTROL PIVOT

1шт.

36

H741991

PIN

ROLL PIN (3/16" x 1")

1шт.

37

H567156

FWD./REV. ROCKER PIVOT

1шт.

38

H567214

ROCKER ARM

2шт.

39

H214346

LINK - steering valve

4шт.

40

H79301

DRAG LINK

LINK - steering valve - inner

4шт.

41

H32979

CLEVIS COUPLING

PIN (3/16" x 1-13/32")

2шт.

42

H238535

PIN (1.425" x 5-1/2")

2шт.

43

H50666

PIN

RETAINER

2шт.

44

H709873

BOLT

HHCS (3/8" x 1-1/2" NC)

2шт.

45

H738013

LOCK NUT

NUT (3/8" NC - lock)

2шт.

46

H579276

FWD./REV. CONTROL LINK

1шт.

47

H578633

CYLINDER BLOCK

BACKFILL BLADE CYLINDER ASM (See Figure 66 for parts list)

1шт.

48

H243816

BACKFILL BLADE CONTROL DECAL

1шт.

49

H49270

SPACER

- rocker arm

3шт.
