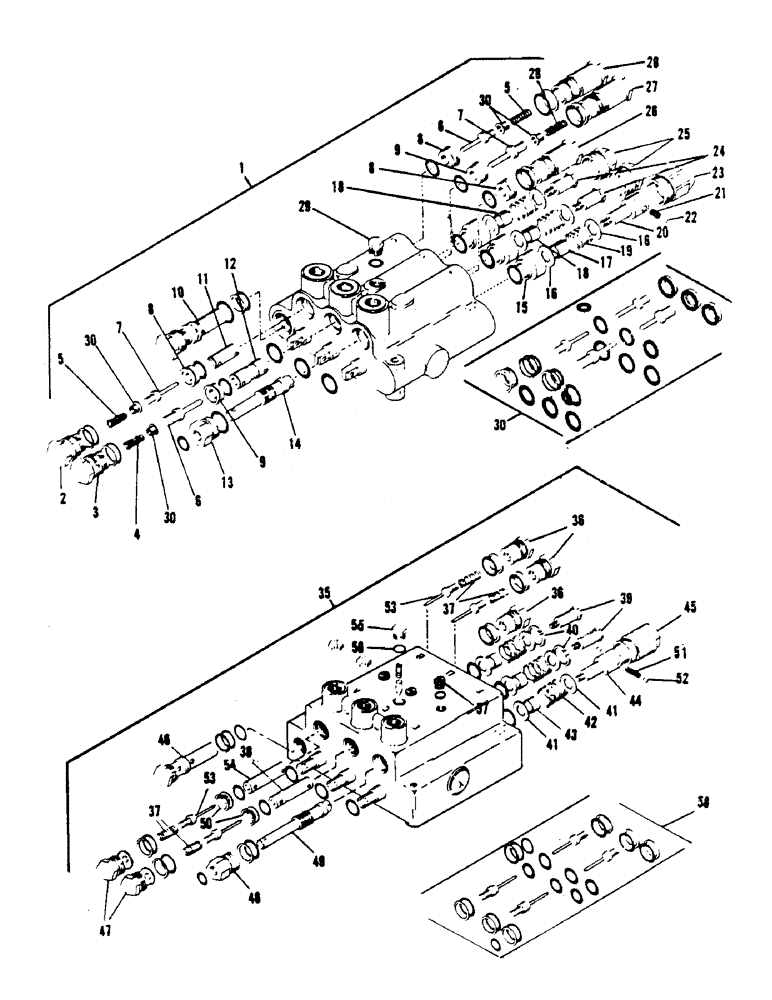

Запчасти Case 1000 (64) - BOOM, TILT & SLOW SPEED VALVE ASSEMBLIES

1

H594507

LOCK VALVE

CONTROL VALVE ASM, Includes: Ref. 2 - 58, Start Serial: 16610

1шт.

2

H580639

PLUG

ASM (Includes o-rings), Serial Range: 16610-Q165219

1шт.

2

H172205

PLUG

ASM (Includes o-rings), Start Serial: Q165219

1шт.

3

H172205

PLUG

ASM (Includes o-rings)

1шт.

4

H242776

SPRING

- lockout, Serial Range: 16610-Q165219

1шт.

4

H172585

SPRING

- lockout, Start Serial: Q165219

1шт.

5

H172585

SPRING

- lockout

2шт.

6

H242727

X

POPPET (Included in seal repair kit), Serial Range: 16610-Q165219

2шт.

6

H266098

SPOOL

POPPET (Included in seal repair kit), Start Serial: Q165219

2шт.

7

H32425

LOCK VALVE

POPPET (Included in seal repair kit), Serial Range: 16610-Q165219

2шт.

7

H266098

SPOOL

POPPET (Included in seal repair kit), Start Serial: Q165219

2шт.

8

H93781

SEAT

ASM (Includes o-ring)

3шт.

9

H242768

SEAL

SEAT ASM (Includes o-ring), Serial Range: 16610-Q165219

2шт.

9

H93781

SEAT

ASM (Includes o-ring), Start Serial: Q165219

2шт.

10

H102053

VALVE

RELIEF VALVE - 2500 PSI (Includes o-ring)

1шт.

11

H32433

PLUNGER

1шт.

12

H242750

PLUNGER, Serial Range: 16610-Q165219

1шт.

12

H271718

PLUNGER, Start Serial: Q165219

1шт.

13

H93849

PLUG

ASM (Includes o-rings)

1шт.

14

H141929

SCREW

METERING SCREW

1шт.

15

H172569

BUSHING

3шт.

16

H746115

WASHER

6шт.

17

H242719

SPACER, Serial Range: 16610-Q165219

1шт.

17

H93815

SPACER

, Start Serial: Q165219

1шт.

18

H93815

SPACER

2шт.

19

H93880

SPRING

3шт.

20

H242743

DETENT SCREW

1шт.

21

H105122

VALVE SPRING

DETENT SPRING

1шт.

22

H755553

STRIP

DETENT BALL

2шт.

23

H242735

DETENT CAP

1шт.

24

H113134

SPOOL

SCREW

2шт.

25

H201681

CAP

SPOOL CAP

2шт.

26

H172601

PLUG

ASM (Includes o-rings)

2шт.

27

H580647

PLUG ASM (Includes o-rings), Serial Range: 16610-Q165219

1шт.

27

H172601

PLUG

ASM (Includes o-rings), Start Serial: Q165219

1шт.

28

H242784

SPRING

- lockout, Serial Range: 16610-Q165219

1шт.

28

H172585

SPRING

- lockout, Start Serial: Q165219

1шт.

29

H580621

PLUG ASM (Includes o-rings)

1шт.

30

H266684

AXLE PIN

EYELET, Start Serial: Q165219

4шт.

31

H580654

SEAL ASSY.

SEAL REPAIR KIT, Serial Range: 16610-Q165219

1шт.

31

H595314

SEAL ASSY.

SEAL REPAIR KIT, Start Serial: Q165219

1шт.

35

H540179

VALVE

CONTROL VALVE ASM, Serial Range: 16500-16610

1шт.

36

H93831

PLUG ASM (Includes o-rings)

3шт.

37

H32417

SPRING

- lockout

4шт.

38

H32433

PLUNGER

1шт.

39

H113134

SPOOL

SCREW - spool

2шт.

40

H755256

SNAP RING,0.312", Int, #31

Ring, Snap, 0.312", Int, #31

2шт.

Another Snap Ring used, P/N F14092

1шт.

41

H746115

WASHER

- special

6шт.

42

H93880

SPRING

- spool

3шт.

43

H93815

SPACER

3шт.

44

H93856

SCREW - spool detent

1шт.

45

H93864

CAP - detent

1шт.

46

H139915

LOCK VALVE

RELIEF VALVE ASM - 2700 PSI (Includes o-rings)

1шт.

47

H113126

PLUG ASM - seat retainer (Includes o-rings)

2шт.

48

H93849

PLUG

ASM - metering screw (Includes o-rings)

1шт.

49

H141929

SCREW

METERING SCREW

1шт.

50

H93781

SEAT

ASM - lockout (Includes o-rings)

2шт.

51

H142166

VALVE SPRING

SPRING - detent

1шт.

52

H745448

BALL

- detent

2шт.

53

H32425

LOCK VALVE

POPPET (Included in seal repair kit)

4шт.

54

H32433

PLUNGER

1шт.

55

H142141

PLUG

1шт.

56

H743294

O-RING

O RING

1шт.

57

H227447

PLUG ASM (Includes o-ring)

3шт.

58

H142158

SEAL ASSY.

SEAL REPAIR KIT

1шт.
