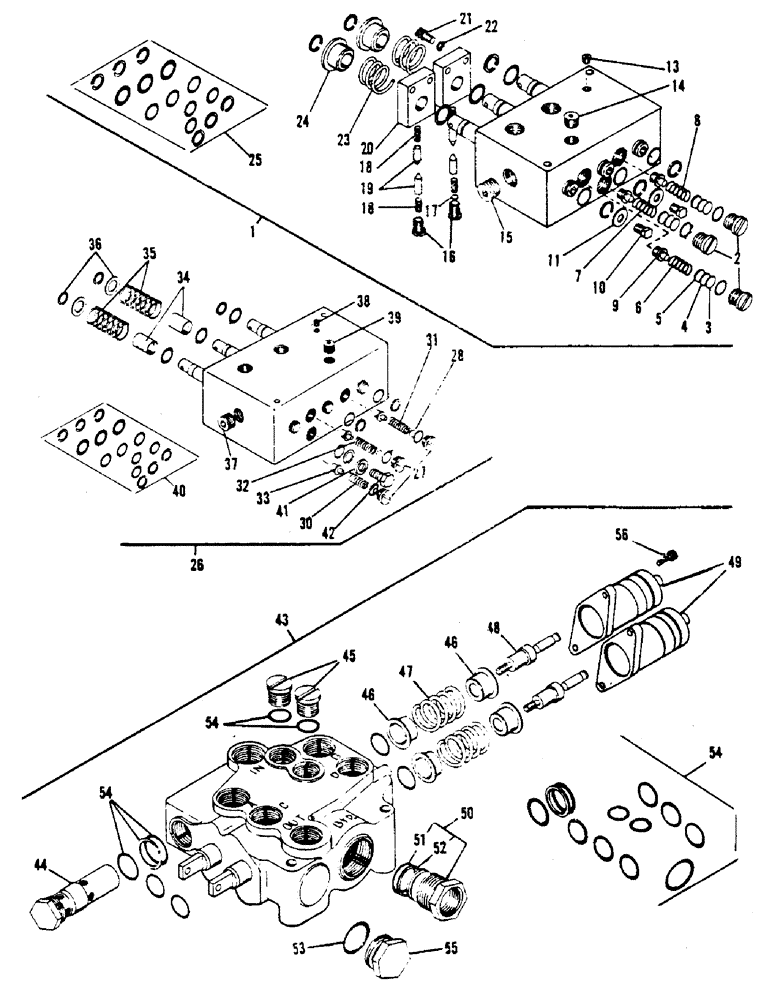

Запчасти Case 1000 (62) - STEERING & CLUTCH - HIGH SPEED & CONVEYOR VALVE ASSEMBLIES

1

H576124

LOCK VALVE

STEERING & CLUTCH VLAVE ASSEMBLY, Includes: Ref. 2 - 25, Start Serial: 5068

1шт.

2

H91926

PLUG

3шт.

3

H250993

SHIM,.005" Thk

1шт.

4

H251009

SHIM,.010" Thk

1шт.

5

H251017

SHIM,.015" Thk

1шт.

6

H97493

SPRING

1шт.

7

H138784

SPRING

1шт.

8

H284281

SPRING

1шт.

9

H78014

SPOOL

POPPET

3шт.

10

H704965

CAP SCREW

2шт.

11

H250985

WASHER

2шт.

13

H751198

PLUG

PIPE PLUG

1шт.

14

H749556

PLUG

PIPE PLUG

1шт.

15

H749572

PLUG

PIPE PLUG

1шт.

16

H105015

PLUG

2шт.

17

H141788

DISC

1шт.

18

H105049

SPRING

4шт.

19

H104992

PAWL

4шт.

20

H250951

BLOCK

2шт.

21

H750323

CAPSCREW

CAP SCREW

4шт.

22

H739193

WASHER, LOCK

LOCK WASHER

4шт.

23

H250977

SPRING

2шт.

24

H250969

SLEEVE

2шт.

25

H584342

SEAL ASSY.

SEAL REPAIR KIT

1шт.

26

H520742

VALVE

STEERING & CLUTCH VALVE, Includes: Ref. 27 - 42, Serial Range: -5068

1шт.

27

H91926

PLUG

3шт.

28

H746149

SHIM,.015" Thk

Relief .015" Thk

1шт.

29

H746180

SHIM

- relief (.010)

1шт.

30

H97493

SPRING - relief (Red)

1шт.

31

H78006

VALVE SPRING

SPRING - relief (Green)

1шт.

32

H138784

SPRING - relief (No color code)

1шт.

33

H78014

SPOOL

POPPET

3шт.

34

H138776

SPOOL

SPACER - spool

2шт.

35

H97485

VALVE SPRING

SPRING - return

2шт.

36

H746206

WASHER

- spring retaining

2шт.

37

H749572

PLUG

1шт.

38

H751198

PLUG

1шт.

39

H749556

PLUG

1шт.

40

H97501

SEAL PACKAGE

SEAL REPAIR KIT

1шт.

41

H738450

WASHER

FLAT WASHER (5/16")

2шт.

42

H713883

BOLT

H.H.C.S. (5/16" x 1/2" NF)

2шт.

43

H537043

LOCK VALVE

CONVEYOR & HIGH SPEED VALVE ASM, Includes: Ref. 44 - 54

1шт.

44

H124867

LOCK VALVE

RELIEF VALVE ASM - 2500 PSI (Includes o-ring)

1шт.

45

H124826

PLUG ASM (Includes o ring)

2шт.

46

H94425

WASHER

- spool

4шт.

47

H94433

VALVE SPRING

SPRING - spool

2шт.

48

H205054

SCREW,1/4" - 20 x 7/16"

SPOOL SCREW

2шт.

49

H205062

CAP

DETENT CAP ASM

2шт.

50

H82354

POWER BEYOND PLUG ASM (Includes o ring), Includes: Ref. 51 - 53

1шт.

51

H744797

O-RING

ORING

1шт.

52

H62729

WASHER

BACKUP WASHER

1шт.

53

H744847

O-RING,0.103" Thk x 1.174" ID, -123, Cl 5, 75 Duro

O RING

1шт.

54

H138206

KIT

SEAL REPAIR KIT

1шт.

55

H100834

PLUG

(Used without backhoe)

1шт.

56

H212688

SCREW - detent cap

4шт.
