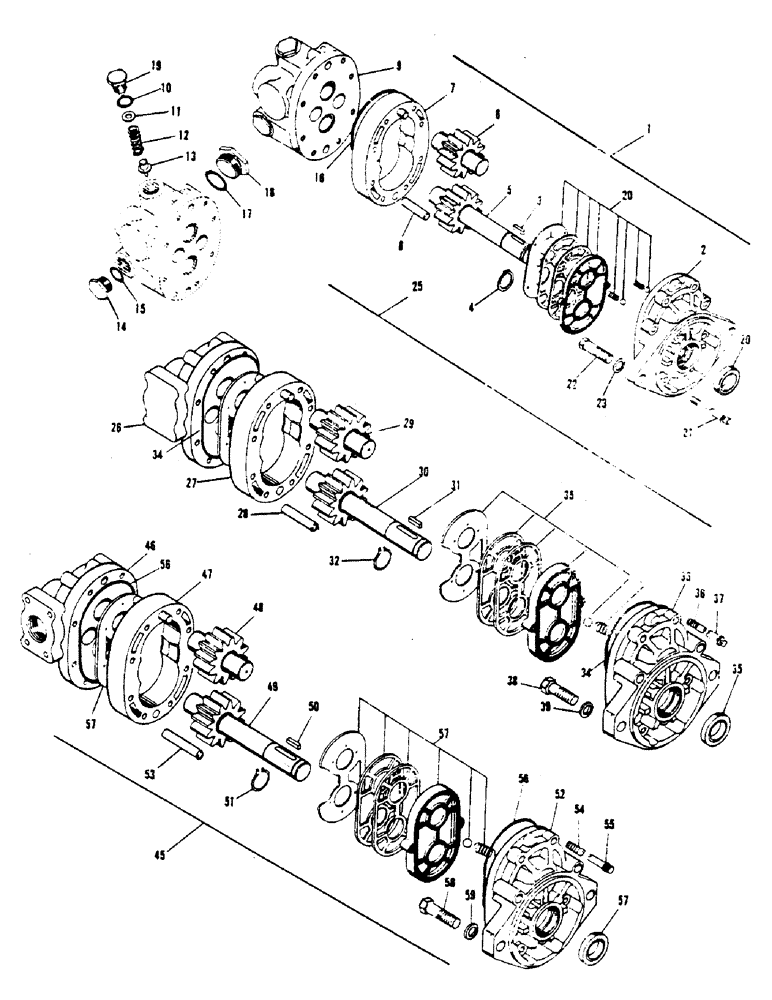

Запчасти Case 1000 (60) - HYDRAULIC PUMP ASSEMBLIES

1

H561258

PUMP

PRIORITY FLOW PUMP ASM, Includes: Ref. 2 - 21

1шт.

2

H83600

LARGE PLATE

FRONT PLATE ASM

1шт.

3

H58206

KEY

(3/16" x 13/16")

1шт.

4

H746487

RING, SNAP

SNAP RING

1шт.

5

H563015

GEAR WHEEL

DRIVE GEAR ASM

1шт.

6

H563023

GEAR

IDLER GEAR ASM

1шт.

7

H203299

BODY

1шт.

8

H745844

PIN

DOWEL

2шт.

9

H563213

BACK PLATE REPAIR KIT, Includes: Ref. 10 - 19

1шт.

10

H743302

O-RING,0.76" ID

O RING

1шт.

11

H746180

SHIM

- relief valve

1шт.

12

H93872

VALVE SPRING

SPRING - relief valve

1шт.

13

H138362

SPOOL

POPPET - relief valve

1шт.

14

H83618

HEX PLUG

1шт.

15

H743336

O-RING

O RING

1шт.

16

H745513

O-RING

O RING

1шт.

17

H744797

O-RING

O RING

1шт.

18

H83626

PLUG

HEX PLUG

1шт.

19

H83592

PLUG

HEX PLUG

1шт.

20

H563221

KIT

SEAL REPAIR KIT

1шт.

21

H60053

CAPSCREW

CAP SCREW (5/16" - 18 x 2-1/2" - 12 pt.)

8шт.

22

H710244

X

HHCS (7/16" x 1" NC)

2шт.

23

H746099

SEAL ASSY.

SEAL WASHER

2шт.

25

H565556

PUMP

LARGE PUMP ASM (Used w/Ford engine only), Includes: Ref. 26 - 38

1шт.

26

H565788

BACK PLATE

ASM

1шт.

27

H210690

BODY

1шт.

28

H754416

AXLE PIN

DOWEL

2шт.

29

H565812

PINION

IDLER GEAR ASM

1шт.

30

H565804

GEAR WHEEL

DRIVE GEAR ASM

1шт.

31

H58016

KEY

(1/4" x 3/4")

1шт.

32

H746503

RING, SNAP

SNAP RING

1шт.

33

H565796

COVER

FRONT PLATE ASM

1шт.

34

H756221

O-RING,4.987" ID x 5.193" OD

O RING

2шт.

35

H565614

SEAL

REPAIR KIT

1шт.

36

H101071

X

CAP SCREW (3/8" - 16 x 3" - 12 pt.)

4шт.

37

H94516

CAPSCREW

CAP SCREW (3/8" - 16 x 3-1/4" - 12 pt.)

4шт.

38

H710632

BOLT

HHCS (1/2" x 1-1/4 " NC)

2шт.

39

H746107

GASKET

SEAL WASHER

2шт.

45

H565549

LARGE PUMP ASM (Used w/Wisconsin engine only), Includes: Ref. 46 - 57

1шт.

46

H565820

BACK PLATE ASM

1шт.

47

H210690

BODY

1шт.

48

H565812

PINION

IDLER GEAR ASM

1шт.

49

H565804

GEAR WHEEL

DRIVE GEAR ASM

1шт.

50

H58016

KEY

(1/4" sq. x 3/4")

1шт.

51

H746503

RING, SNAP

SNAP RING

1шт.

52

H565796

COVER

FRONT PLATE ASM

1шт.

53

H754416

AXLE PIN

DOWEL PIN

2шт.

54

H101071

X

CAP SCREW (3/8" - 16 x 3" - 12 pt.)

4шт.

55

H94516

CAPSCREW

CAP SCREW (3/8" - 16 x 3-1/4" - 12 pt.)

4шт.

56

H756221

O-RING,4.987" ID x 5.193" OD

O RING

2шт.

57

H565614

SEAL

REPAIR KIT

1шт.

58

H710632

BOLT

HHCS (1/2" x 1-1/4" NC)

2шт.

59

H746107

GASKET

SEAL WASHER

2шт.
