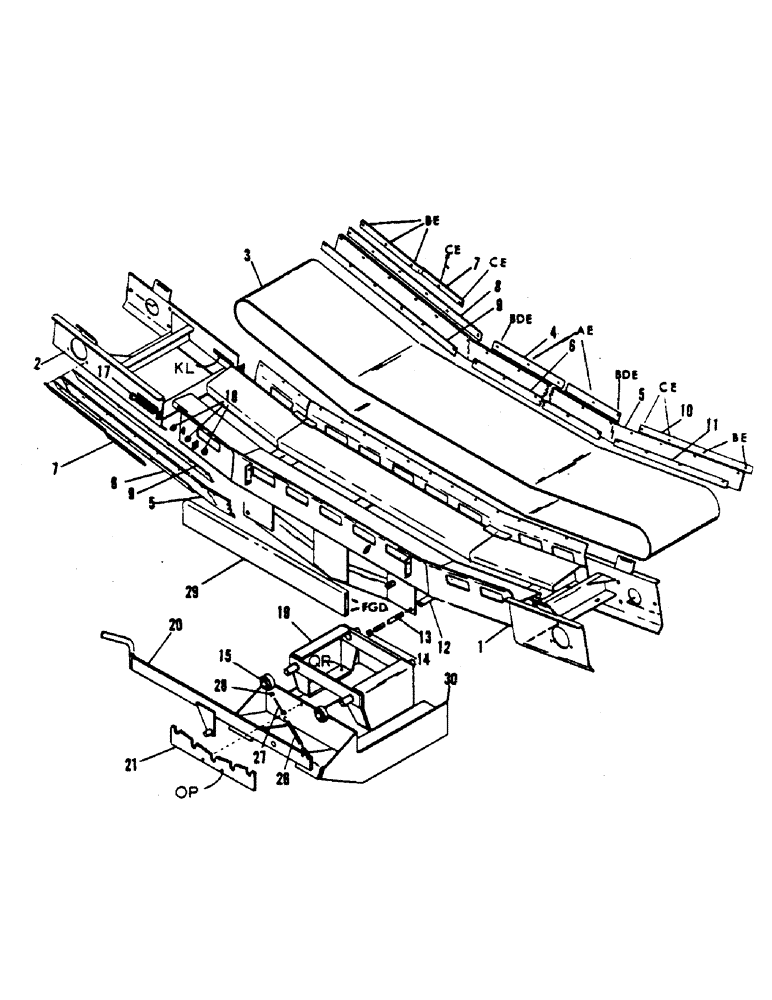

Запчасти Case 1000 (54) - HIGH-CAPACITY CONVEYOR, MOUNTING BRACKETS

1

H555110

CONVEYOR FRAME ASM

1шт.

2

H556407

MOUNTING PARTS

CONVEYOR END ASM

1шт.

3

H183129

BELT,12.00" W

CONVEYOR 12.00" W

1шт.

4

H183160

SIDE FLAP SUPPORT - center

2шт.

5

H183137

FLAP

SIDE FLAP

2шт.

6

H183145

SIDE FLAP RETAINER STRIP - center

2шт.

7

H101980

SIDE FLAP DOUBLER STRIP

2шт.

8

H183178

SIDE FLAP SUPPORT - adjustable end

2шт.

9

H183152

SIDE FLAP RETAINER STRIP - adjustable end

2шт.

10

H184218

SIDE FLAP SUPPORT - stationary end

2шт.

11

H184226

SIDE FLAP RETAINER - stationary end

2шт.

12

H120634

SPACER TUBE

3шт.

13

H120675

TIE BAR (Option - 1/2" x 14" HHCS - NC)

3шт.

14

H738039

LOCK NUT

NUT (1/2" NC - lock)

6шт.

15

H747451

BEARING

- bed roller

4шт.

17

H41046

SCREW,1/2" x 4 1/2", Grade 5

BELT ADJUSTING SCREW

2шт.

18

86632558

JAM NUT,Jam, 1/2"-13, G5

NUT (1/2" NC - jam)

6шт.

19

H533315

CONVEYOR RACK

1шт.

20

H576967

LOCK LEVER

1шт.

21

H120626

BAR

INDEX BAR

1шт.

26

H93377

VALVE SPRING

SPRING - lock lever

1шт.

27

H65854

BOLT (SPREADER)

EYE BOLT (1/4" NC)

1шт.

28

H735779

NUT (1/4" NC)

2шт.

29

H577791

COVER ASSY

CONVEYOR SHIELD ASM

1шт.

30

H575670

DIRT CHUTE STOP ASM

1шт.

a

H731679

SCREW

TRUSS HEAD BOLT (5/16" x 3/4" NC)

20шт.

b

H731695

SCREW

TRUSS HEAD BOLT (5/16" x 1" NC)

12шт.

c

H731711

TRUSS HEAD BOLT (5/16" x 1-1/4" NC)

10шт.

d

H738450

WASHER

FLAT WASHER (5/16" SAE)

8шт.

e

H738286

HARDWARE

NUT (5/16" NC) light center lock

42шт.

f

H749499

SCREW

SELF TAPPING SCREW - H/H (5/16" x 3/4")

4шт.

g

H739201

WASHER

LOCK WASHER (5/16")

4шт.

k

H710624

X

CARRIAGE BOLT (1/2" x 1" NC)

4шт.

l

H737759

NUT

(1/2" NC - jam - lock)

4шт.

o

H709865

BOLT

HHCS (3/8" x 1-1/4" NC)

2шт.

p

H738013

LOCK NUT

NUT (3/8" NC - lock)

2шт.

q

H710657

BOLT

HHCS (1/2" x 1-1/2" NC)

4шт.

r

H738035

NUT (1/2" NC - lock)

4шт.
