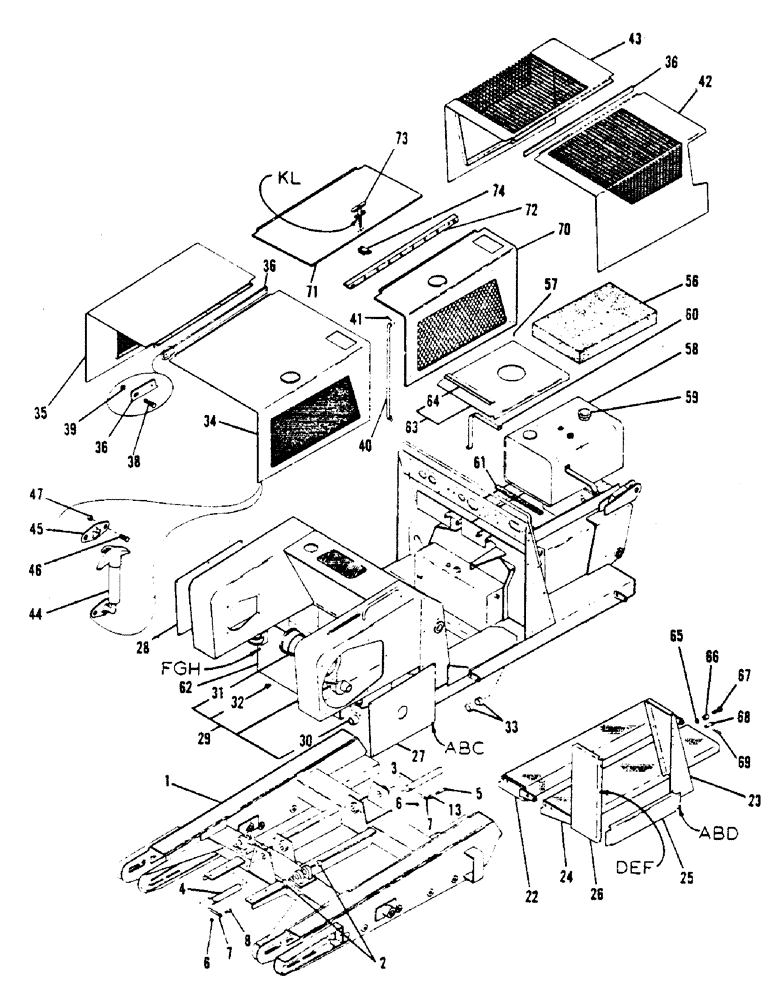

Запчасти Case 1000 (04) - UPPER & LOWER FRAMES, HOOD, SEAT

1

H567081

LOWER FRAME ASM, Includes: Ref. 2

1шт.

Used to spec. no. P16WS04, P16FG05 and P16FD06.

1шт.

1

H589135

LOWER FRAME ASM, Includes: Ref. 2

1шт.

Used to spec. no. P16WS04, P16FG05, P16FD06 and up.

1шт.

2

H42705

BUSHING, tilt cylinder

4шт.

Used to spec. no. P16WS04, P16FG05 and P16FD06.

1шт.

2

H56614

BUSHING

tilt cylinder

4шт.

Used to spec. no. P16WS04, P16FG05, P16FD06 and up.

1шт.

3

H101410

AXLE PIN

PIN, rear frame pivot

1шт.

4

H35956

AXLE PIN

PIN - front frame pivot

1шт.

5

H709915

BOLT

HHCS (3/8 x 2-1/2 NC)

1шт.

6

H738013

LOCK NUT

NUT (3/8 NC - lock)

3шт.

7

H36509

AXLE PIN

RETAINER PIN

2шт.

8

H709873

BOLT

HHCS (3/8 x 1-1/2 NC)

1шт.

13

H101493

SPACER

1шт.

22

H577023

RUNNING BOARD EXTENSION

1шт.

Required on Ford engine installation.

1шт.

23

H231217

REAR COWL EXTENSION

1шт.

Required on Ford engine installation.

1шт.

24

H577015

RUNNING BOARD

1шт.

25

H231209

ENGINE ACCESS PANEL

1шт.

Required on Ford engine installation.

1шт.

26

H231225

FRONT COWL EXTENSION

1шт.

Required on Ford engine installation.

1шт.

27

H80564

COVER PANEL - left

1шт.

28

H80572

COVER PANEL - right

1шт.

29

H567222

UPPER FRAME ASM, Includes: Ref. 30 - 33

1шт.

Used to spec. no. P16WS04, P16FG05 and P16FD06.

1шт.

29

H589168

UPPER FRAME ASM, Includes: Ref. 30 - 33

1шт.

Used to spec. no. P16WS04, P16FG05, P16FD06 and up.

1шт.

30

H35865

BUSHING

- frame pivot

4шт.

31

H36905

BUSHING

- boom pivot

1шт.

32

H745265

FITTING

GREASE FITTING

1шт.

33

H232611

BUSHING, tilt cylinder

4шт.

Used to spec. no. P16WS04, P16FG05 and P16FD06.

1шт.

33

H56614

BUSHING

tilt cylinder

4шт.

Used to spec. no. P16WS04, P16FG05, P16FD06 and up.

1шт.

34

H575043

HOOD - left

1шт.

Required on Ford engine installation without ROPS.

1шт.

35

H575050

HOOD - right

1шт.

Required on Ford engine installation.

1шт.

36

H124990

CENTER BAR - hood

1шт.

38

H709451

BOLT (SPREADER)

HHCS (5/16 x 1 NC)

2шт.

39

230-4215

NUT,5/16"-18, GA

NUT (5/16 NC - lock)

2шт.

40

H522284

SUPPORT

HOOD SUPPORT

2шт.

41

H739920

SPARE PART

COTTER PIN (1/8 x 3/4)

2шт.

42

H577817

HOOD

- left

1шт.

Required on Wisconson engine installation.

1шт.

43

H577825

HOOD - right

1шт.

Required on Wisconson engine installation.

1шт.

44

H242339

LATCH ASSY.

HOOD LATCH

4шт.

45

H242321

LATCH ASSY.

HOOD STRIKE

4шт.

46

H709113

X

HHCS (1/4 x 3/4 NC)

2шт.

47

H737999

LOCK NUT

NUT (1/4 NC - lock)

2шт.

56

H85308

CUSHION ASSY.

SEAT CUSHION

1шт.

57

H66522

BUMPER

RUBBER BUMPER - seat stop

2шт.

58

H578237

FUEL TANK

1шт.

59

H151274

CYLINDER END CAP

CAP - fuel tank

1шт.

60

H238758

RETAINER STRAP - fuel tank

4шт.

61

H295774

BELTING - fuel tank

2шт.

62

H80457

ACCESS PANEL

1шт.

63

H576330

SEAT MOUNTING BRACKET, Includes: Ref. 64

1шт.

64

H233882

HINGE - seat bracket

1шт.

65

H738039

LOCK NUT

NUT - (1/2 NC - lock)

4шт.

66

H46680

BUSHING,3/4" Tube x 11/16"

running board pivot

4шт.

67

H710657

BOLT

HHCS (1/2 x 1-3/4 NC)

4шт.

68

H30171

CLEVIS PIN (1/2 x 1-5/8)

1шт.

69

H32292

PIN

HAIR PIN - cotter

1шт.

70

H602011

HOOD - left

1шт.

Required on Ford engine installation with ROPS.

1шт.

71

H602037

PANEL

1шт.

Required on Ford engine installation with ROPS.

1шт.

72

H602029

MOUNT BAR

1шт.

Required on Ford engine installation with ROPS.

1шт.

73

H284547

HANDLE

1шт.

Required on Ford engine installation with ROPS.

1шт.

74

H284554

LATCH

1шт.

Required on Ford engine installation with ROPS.

1шт.

a

H709436

BOLT

HHCS (5/16 x 3/4 NC)

1шт.

b

H738450

WASHER

FLAT WASHER (5/16)

1шт.

c

H739201

WASHER

LOCK WASHER (5/16)

1шт.

d

230-4215

NUT,5/16"-18, GA

NUT (5/16 NC - lock)

1шт.

e

H709451

BOLT (SPREADER)

HHCS (5/16 x 1 NC)

1шт.

f

H709865

BOLT

HHCS (3/8 x 1-1/4 NC)

1шт.

g

H738468

WASHER

FLAT WASHER (3/8)

1шт.

h

H738013

LOCK NUT

NUT (3/8 NC - lock)

1шт.

k

H753723

SCREW

FHMS (10-24 x 1/2)

2шт.

l

H755512

NUT

(10-24 - lock)

2шт.
