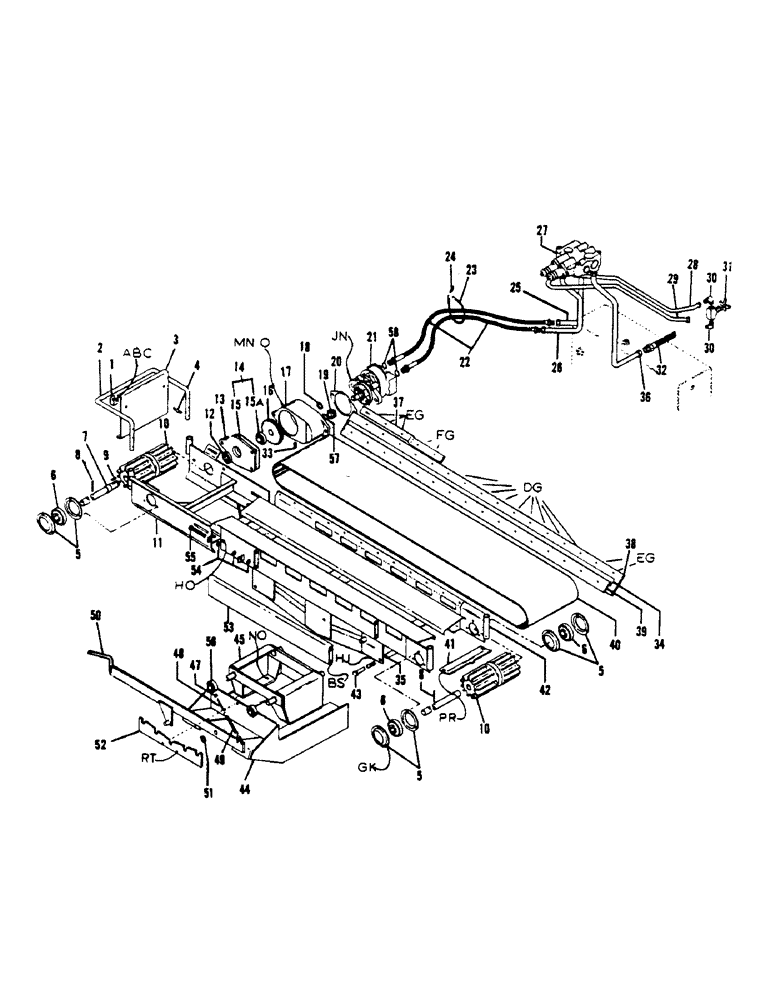

Запчасти Case 1000 (52) - STANDARD CONVEYOR, MOUNTING BRACKETS, HYDRAULIC LINES

1

H122275

CLAMP

- conveyor deflector

2шт.

2

H122291

DEFLECTOR

BAR - deflector support

1шт.

3

H122267

PANEL - deflector

1шт.

4

H32292

PIN

HAIR PIN

2шт.

5

H747071

FLANGE

TTE

6шт.

6

H747048

BEARING

1шт.

7

H79251

SHAFT

DRIVE SHAFT - conveyor

1шт.

8

H742866

PIN

ROLL PIN (3/8" x 2-1/2")

1шт.

9

H26492

KEY

- drive shaft

1шт.

10

H53868

ROLLER

CASTING

2шт.

11

H516955

DRIVE ROLLER MOUNTING ASM

1шт.

12

H749077

OIL SEAL

OIL SEAL

1шт.

13

H46458

GASKET

1шт.

14

H591370

BEARING

PLATE ASM, Includes: Ref. 15 and 15A

1шт.

15

H124529

PLATE

BEARING PLATE

1шт.

15a

H747030

FLANGE

BEARING - drive shaft

1шт.

16

H122606

GEAR WHEEL

GEAR - driven

1шт.

17

H124511

GEAR WHEEL

GEAR CASE

1шт.

18

H746511

RING, SNAP

SNAP RING

1шт.

19

H122598

GEAR WHEEL

GEAR - driven

1шт.

For high-speed conveyor drive order H122614 driven gear and H122622 drive gear.

1шт.

20

H124537

GASKET

1шт.

21

H563601

MOTOR HOUSING

MOTOR (H061168 - 3/16" x 7/8" key comes w/motor)

1шт.

22

H243774

HOSE

(3/4" x 68" - 1-1/16" JIC male - 1-1/16" boss ends)

2шт.

23

H52548

SPRING

3шт.

24

H52555

HOOK

3шт.

25

H573691

TUBE,0.75" OD x 13.75, 4.25" L

(3/4")

1шт.

26

H573683

TUBE,0.75" OD

(3/4")

1шт.

27

H537043

LOCK VALVE

VALVE - conveyor - high-speed

1шт.

28

H573790

TUBE,0.5" OD x 26.125" L

(1/2")

1шт.

29

H573709

TUBE,0.5" OD x 25.125, 8.937" L

(1/2")

1шт.

30

H169847

ADAPTER

- 90 degrees

2шт.

31

H510925

LOCK VALVE

VARIABLE SPEED BLEED VALVE

1шт.

32

H228775

HOSE ASSY.

HOSE (1/2" x 21" - 1/2" M.P. - 7/8 JIC Fe. Sw. ends)

1шт.

33

H749622

PLUG

PIPE PLUG (3/8" case drain)

1шт.

34

H104380

SIDE FLAP SUPPORT

2шт.

35

H120634

SPACER TUBE

1шт.

36

H573733

TUBE,0.75" OD x 18, 6.625" L

(5/8")

1шт.

37

H101980

DOUBLER STRAP

2шт.

38

H98889

SUPPORT

RETAINER STRIP

2шт.

39

H98871

FLAP

RUBBER SIDE FLAP

2шт.

40

H80390

SHAFT,12.00" W x 132.00" L

CONVEYOR BELT 12.00" W x 132.00" L

1шт.

41

H67439

PLATE ASSY.

ROLLER CLEANER

2шт.

42

H516948

FRAME ASM

1шт.

43

H120675

TIE BOLT

3шт.

44

H575670

DIRT CHUTE STOP ASM

1шт.

45

H533315

CONVEYOR RACK ASM

1шт.

47

H735779

NUT (1/4" NC)

2шт.

48

H65854

BOLT (SPREADER)

EYE BOLT (1/4" NC)

1шт.

49

H93377

VALVE SPRING

SPRING - lock lever

1шт.

50

H576967

CONVEYOR LOCK LEVER

1шт.

51

H738518

WASHER

FLAT WASHER (3/4")

1шт.

52

H149625

BAR ASSY.

INDEX BAR

1шт.

53

H577791

COVER ASSY

CONVEYOR SHIELD

1шт.

54

86632558

JAM NUT,Jam, 1/2"-13, G5

NUT (1/2" NC - jam)

6шт.

55

H41046

SCREW,1/2" x 4 1/2", Grade 5

ADJUSTING SCREW

2шт.

56

H747451

BEARING

- conveyor bed roller

4шт.

57

H746503

RING, SNAP

SNAP RING - motor drive

2шт.

58

H745182

O-RING

O RING

2шт.

a

H727313

BOLT

R.H.C.S. (5/16" x 1-1/2" NC)

2шт.

b

H739201

WASHER

LOCK WASHER (5/16")

9шт.

c

H746834

NUT, WING

WING NUT (5/16" NC)

2шт.

d

H731679

SCREW

T.H.C.S. (5/16" x 3/4" NC)

18шт.

e

H731695

SCREW

T.H.C.S. (5/16" x 1" NC)

10шт.

f

H731711

T.H.C.S. ( 5/16" x 1-1/4" NC)

4шт.

g

H738286

HARDWARE

NUT (5/16" NC - lock)

40шт.

h

H735811

NUT

(1/2" NC)

3шт.

j

H739235

WASHER

LOCK WASHER (1/2")

9шт.

k

H709451

BOLT (SPREADER)

H.H.C.S. (5/16" x " NC)

9шт.

l

H728469

BOLT

R.H.C.S. (1/2" x 1" NC)

4шт.

m

H710657

BOLT

H.H.C.S. (1/2" x 1-3/4" NC)

1шт.

n

H710640

X

H.H.C.S. (1/2" x 1-1/2" NC)

4шт.

o

H738039

LOCK NUT

NUT (1/2" NC - lock)

5шт.

p

H709857

BOLT

H.H.C.S. (3/8" x 1" NC)

4шт.

r

H738013

LOCK NUT

NUT (3/8" NC - lock)

6шт.

s

H749499

SCREW

S.T.C.S. (5/16" x 3/4")

2шт.

t

H709865

BOLT

H.H.C.S. (3/8" x 1-1/4")

2шт.
