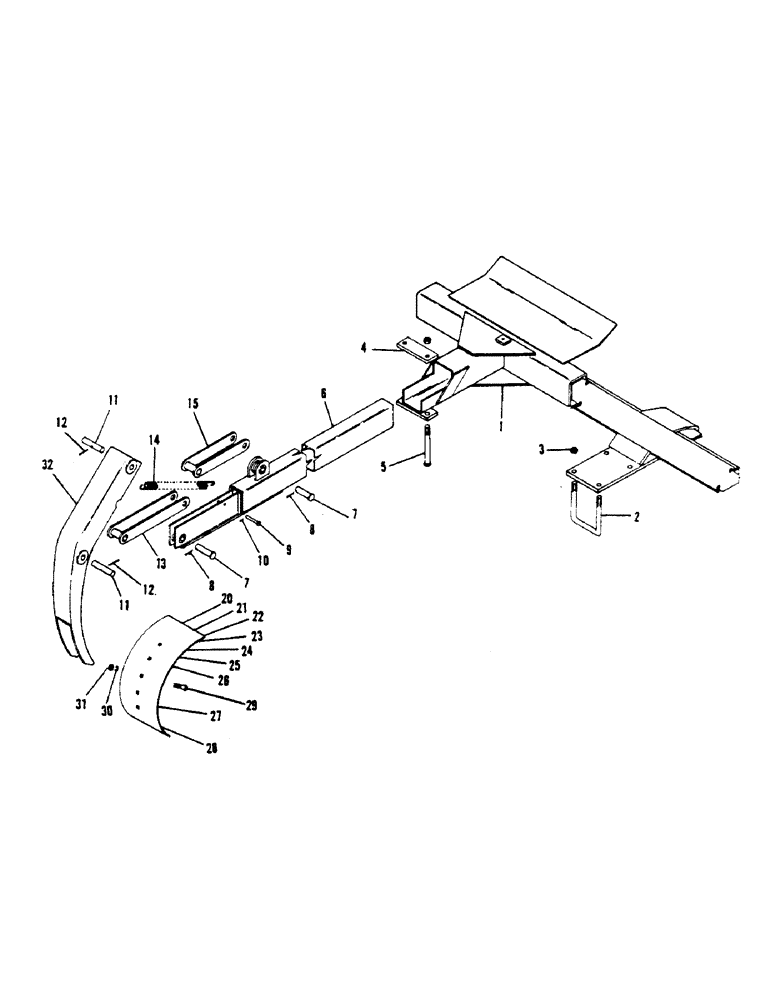

Запчасти Case 1000 (48) - CRUMBER ATTACHMENT

1

H542746

CRUMBER MOUNTING BRACKET

1шт.

2

H128272

CLAMP

U BOLT (5/8" NC)

1шт.

3

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8" NC - lock)

4шт.

4

H137497

ATTACHING PLATE

1шт.

5

H711556

BOLT

HHCS (5/8" x 6" NC)

2шт.

6

H536631

CRUMBER BOOM

1шт.

7

H54320

AXLE PIN,19.05mm OD x 79.38mm L

PIN (3/4" x 2-7/8")

2шт.

8

H740522

HARDWARE

COTTER PIN (1/4" x 1-1/2")

2шт.

9

H54395

AXLE PIN,9.47mm OD x 60.33mm L

PIN (3/8" x 2-1/4")

1шт.

10

H739946

KEY

COTTER PIN (1/8" x 1")

1шт.

11

H118109

AXLE PIN,19.05mm OD x 92.08mm L

PIN (3/4" x 3-5/8")

2шт.

12

H740324

HARDWARE

COTTER PIN (3/16" x 1-1/2")

2шт.

13

H532440

DRAG LINK

LONG LINK

1шт.

14

H128280

VALVE SPRING

CRUMBER SPRING

1шт.

15

H536664

DRAG LINK

SHORT LINK

1шт.

20

H127480

BLADE

CRUMBER BLADE (5" for 6" trench)

1шт.

21

H60087

BLADE

CRUMBER BLADE (7" for 8" trench)

1шт.

22

H60103

BLADE

CRUMBER BLADE (9" for 10" trench)

1шт.

23

H60129

BLADE

CRUMBER BLADE (11" for 12" trench)

1шт.

24

H60145

BLADE

CRUMBER BLADE (13" for 14" trench)

1шт.

25

H60160

BLADE

CRUMBER BLADE (15" for 16" trench)

1шт.

26

H60186

BLADE

CRUMBER BLADE (17" for 18" trench)

1шт.

27

H60202

BLADE

CRUMBER BLADE (18" for 20" trench)

1шт.

28

H60244

BLADE

CRUMBER BLADE (22" for 24" trench)

1шт.

29

H728477

BOLT

CARRIAGE BOLT (1/2" x 1-1/4" NC)

2шт.

30

H739235

WASHER

LOCK WASHER (1/2")

2шт.

31

H735811

NUT

(1/2" NC)

2шт.

32

H536656

BRACKET

BLADE MOUNTING BRACKET

1шт.
