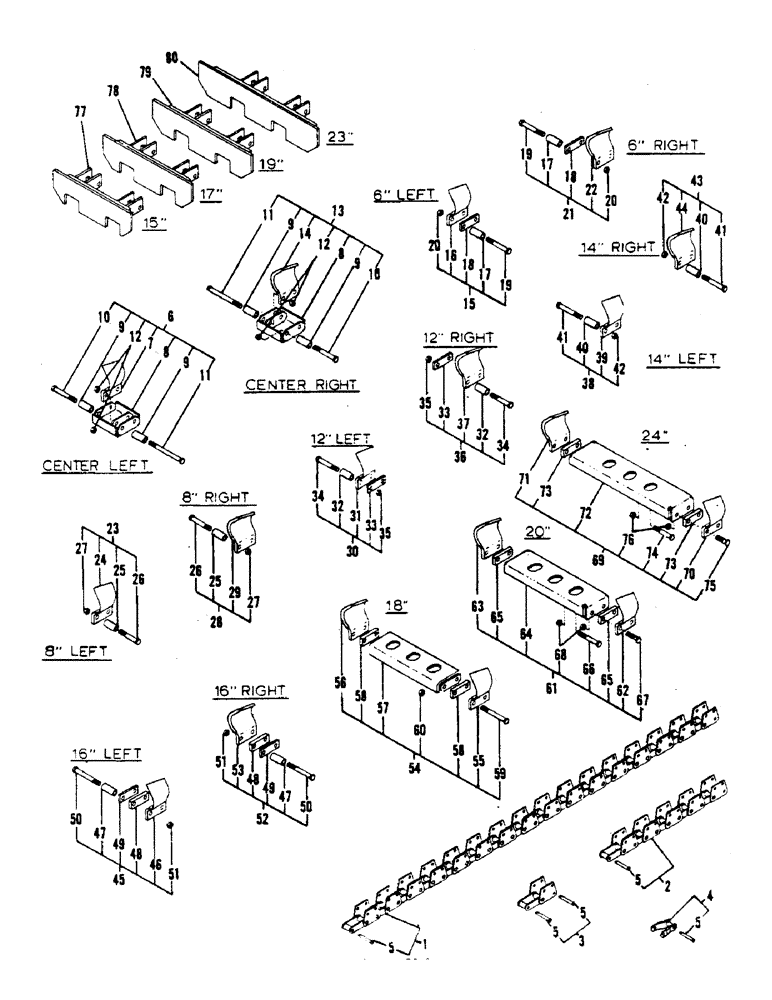

Запчасти Case 1000 (44) - DOUBLE CHAIN, DIGGING TEETH, DIRT DRAGS

1

H601328

CHAIN (CE)

DIGGING CHAIN - 57 pitch (Includes: Ref. 5)

1шт.

For complete digging chain for 32" boom (63 pitches) order two Ref. 1, six Ref. 3. For complete digging chain for 42" boom (71 pitches) order two Ref. 1, two Ref. 2, and four Ref. 3. For complete digging chain for 52" boom (79 pitches) order two Ref. 1, four Ref. 2 and two Ref. 3.

1шт.

2

H601336

CHAIN (CE)

DIGGING CHAIN - 10 pitch (Includes: Ref. 5)

1шт.

For complete digging chain for 32" boom (63 pitches) order two Ref. 1, six Ref. 3. For complete digging chain for 42" boom (71 pitches) order two Ref. 1, two Ref. 2, and four Ref. 3. For complete digging chain for 52" boom (79 pitches) order two Ref. 1, four Ref. 2 and two Ref. 3.

1шт.

3

H601344

LINK

DIGGING CHAIN - 2 pitch (Includes: Ref. 5)

1шт.

For complete digging chain for 32" boom (63 pitches) order two Ref. 1, six Ref. 3. For complete digging chain for 42" boom (71 pitches) order two Ref. 1, two Ref. 2, and four Ref. 3. For complete digging chain for 52" boom (79 pitches) order two Ref. 1, four Ref. 2 and two Ref. 3.

1шт.

4

H283671

DRAG LINK

HALF LINK, Includes: Ref. 5

1шт.

For complete digging chain for 32" boom (63 pitches) order two Ref. 1, six Ref. 3. For complete digging chain for 42" boom (71 pitches) order two Ref. 1, two Ref. 2, and four Ref. 3. For complete digging chain for 52" boom (79 pitches) order two Ref. 1, four Ref. 2 and two Ref. 3.

1шт.

5

H283663

AXLE PIN

CONNECTOR PIN

1шт.

Part of Refs. 1 - 3

1шт.

6

H586305

CENTER LEFT TOOTH ASM GROUP, Includes: Ref. 7 - 12

1шт.

7

H251371

TOOTH

DIGGING TOOTH - left

1шт.

8

H563890

BRACKET

TOOTH BRACKET - center

1шт.

9

H138982

SPACER

TUBULAR SPACER

4шт.

10

H711473

BOLT

HHCS (5/8 x 4 - NC)

2шт.

11

H711556

BOLT

HHCS (5/8 x 6 - NC)

2шт.

12

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8 NC - lock)

4шт.

13

H586313

CENTER RIGHT TOOTH ASM GROUP (Includes: Ref. 8 - 12 and 14

1шт.

14

H251389

TOOTH

DIGGING TOOTH - right

1шт.

15

H586321

6" LEFT TOOTH ASM GROUP, Includes: Ref. 16 - 20

1шт.

16

H251371

TOOTH

DIGGING TOOTH - left

1шт.

17

H138982

SPACER

TUBULAR SPACER

2шт.

18

H138990

SPACER

FLAT SPACER (5/16)

1шт.

19

H711473

BOLT

HHCS (5/8 x 4 - NC)

2шт.

20

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8 NC - lock)

2шт.

21

H586339

6" RIGHT TOOTH ASM GROUP (Includes: Ref. 17 - 20 and 22

1шт.

22

H251389

TOOTH

DIGGING TOOTH - right

1шт.

23

H586347

8" LEFT TOOTH ASM GROUP, Includes: Ref. 24 - 27

1шт.

24

H251371

TOOTH

DIGGING TOOTH - left

1шт.

25

H138008

SPACER

TUBULAR SPACER

2шт.

26

H711457

BOLT

HHCS (5/8 x 3-1/2 - NC)

2шт.

Part of Refs. 77 - 80

1шт.

27

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8 NC - lock)

2шт.

Part of Refs. 77 - 80

1шт.

28

H586354

8" RIGHT TOOTH ASM GROUP (Includes: Ref. 25 - 27 and 29

1шт.

29

H251389

TOOTH

DIGGING TOOTH - right

1шт.

30

H586362

12" LEFT TOOTH ASM GROUP, Includes: Ref. 31 - 35

1шт.

31

H251371

TOOTH

DIGGING TOOTH - left

1шт.

32

H213496

SPACER

TUBULAR SPACER

2шт.

33

H138990

SPACER

FLAT SPACER (5/16")

1шт.

34

H711457

BOLT

HHCS (5/8 x 3-1/2" - NC)

2шт.

35

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8 NC - lock)

2шт.

36

H586370

12" RIGHT TOOTH ASM GROUP (Includes: Ref. 32 - 35 and 37

1шт.

37

H251389

TOOTH

DIGGING TOOTH - right

1шт.

38

H585836

14" LEFT TOOTH ASM GROUP, Includes: Ref. 39 - 42

1шт.

39

H251371

TOOTH

DIGGING TOOTH - left

1шт.

40

H138982

SPACER

TUBULAR SPACER

2шт.

41

H711473

BOLT

HHCS (5/8 x 4 - NC)

2шт.

42

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8 NC - lock)

2шт.

43

H585844

14" RIGHT TOOTH ASM GROUP (Includes: Ref. 40 - 42 and 44

1шт.

44

H251389

TOOTH

DIGGING TOOTH - right

1шт.

45

H586388

16" LEFT TOOTH ASM GROUP, Includes: Ref. 46 - 51

1шт.

46

H251371

TOOTH

DIGGING TOOTH - left

1шт.

47

H138982

SPACER

TUBULAR SPACER

2шт.

48

H251504

SPACER

FLAT SPACER (1/2")

1шт.

49

H138990

SPACER

FLAT SPACER (5/16")

1шт.

50

H711499

BOLT

HHCS (5/8 x 4-1/2" - NC)

2шт.

51

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8 NC - lock)

2шт.

52

H586396

16" RIGHT TOOTH ASM GROUP (Includes: Ref. 47 - 51 and 53

1шт.

53

H251389

TOOTH

DIGGING TOOTH - right

1шт.

54

H586404

18" TOOTH ASM GROUP, Includes: Ref. 55- 60

1шт.

55

H251371

TOOTH

DIGGING TOOTH - left

1шт.

56

H251389

TOOTH

DIGGING TOOTH - right

1шт.

57

H556506

BRACKET

TOOTH BRACKET - 18"

1шт.

58

H251504

SPACER

FLAT SPACER (1/2")

2шт.

59

H711531

SCREW

HHCS (5/8 x 5-1/2" - NC)

4шт.

60

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8 NC - lock)

4шт.

61

H586412

20" TOOTH ASM GROUP, Includes: Ref. 62 - 68

1шт.

62

H251371

TOOTH

DIGGING TOOTH - left

1шт.

63

H251389

TOOTH

DIGGING TOOTH - right

1шт.

64

H556498

TOOTH

BRACKET - 20"

1шт.

65

H251504

SPACER

FLAT SPACER (1/2")

2шт.

66

H711457

BOLT

HHCS (5/8 x 3-1/2" - NC)

4шт.

67

H711390

BOLT

HHCS (5/8 x 2 - NC)

4шт.

68

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8 NC - lock)

8шт.

69

H586420

24" TOOTH ASM GROUP, Includes: Ref. 70 - 76

1шт.

70

H251371

TOOTH

DIGGING TOOTH - left

1шт.

71

H251389

TOOTH

DIGGING TOOTH - right

1шт.

72

H556480

TOOTH

BRACKET - 20"

1шт.

73

H251504

SPACER

FLAT SPACER (1/2")

2шт.

74

H711457

BOLT

HHCS (5/8 x 3-1/2 - NC)

4шт.

75

H711390

BOLT

HHCS (5/8 x 2 - NC)

4шт.

76

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8 NC - lock)

8шт.

77

H567024

DIRT DRAG - 15"

1шт.

Includes two each of Refs. 26 and 27.

1шт.

78

H556696

SPARE PART

DIRT DRAG - 17"

1шт.

Includes two each of Refs. 26 and 27.

1шт.

79

H556704

DIRT DRAG - 19"

1шт.

Includes two each of Refs. 26 and 27.

1шт.

80

H556712

SPARE PART

DIRT DRAG - 23"

1шт.

Includes two each of Refs. 26 and 27.

1шт.
