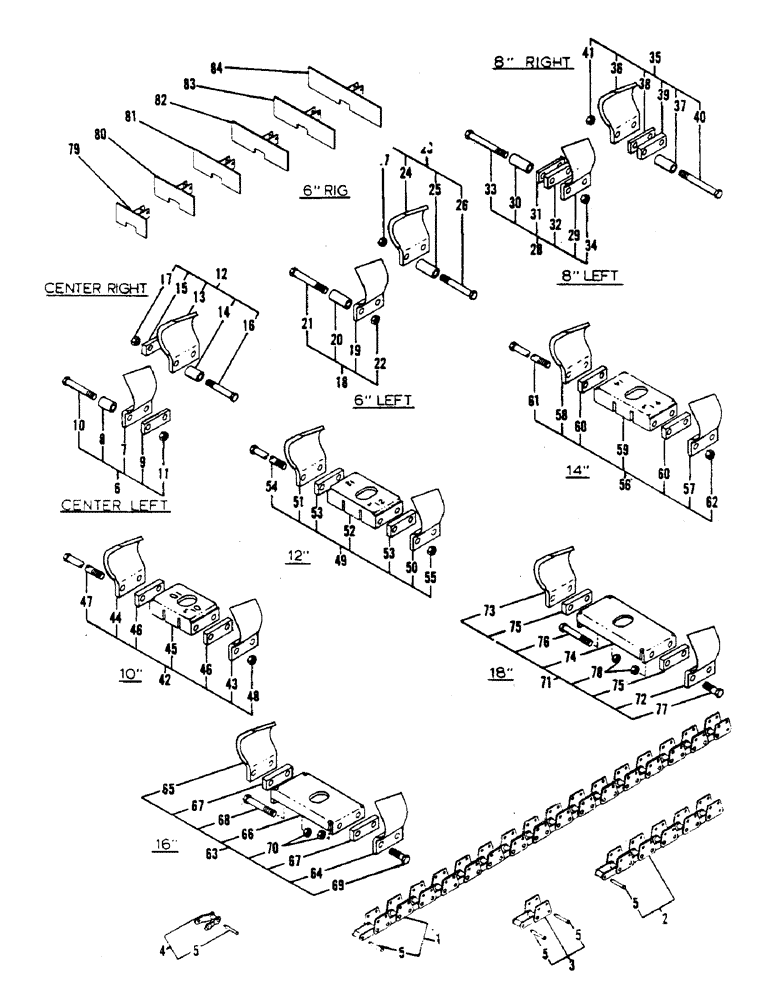

Запчасти Case 1000 (42) - EXTRA HEAVY-DUTY SINGLE CHAIN, DIGGING TEETH, DIRT DRAGS

1

H588400

CHAIN (AG)

DIGGING CHAIN - 54 pitch (Includes: Ref. 5)

1шт.

For complete digging chain for 52" boom (75 pitches) order one Ref. 1, two Ref. 2, and one Ref. 4. For complete digging chain for 65" boom (84 pitches) order one Ref. 1 and three Ref. 2. For complete digging chain for 86" boom (101 pitches) order one Ref. 1, four Ref. 2, three Ref. 3 and one Ref. 4.

1шт.

2

H588392

CHAIN (AG)

DIGGING CHAIN - 10 pitch (Includes: Ref. 5)

1шт.

For complete digging chain for 52" boom (75 pitches) order one Ref. 1, two Ref. 2, and one Ref. 4. For complete digging chain for 65" boom (84 pitches) order one Ref. 1 and three Ref. 2. For complete digging chain for 86" boom (101 pitches) order one Ref. 1, four Ref. 2, three Ref. 3 and one Ref. 4.

1шт.

3

H572982

LINK

DIGGING CHAIN - 2 pitch (Includes: Ref. 5)

1шт.

For complete digging chain for 52" boom (75 pitches) order one Ref. 1, two Ref. 2, and one Ref. 4. For complete digging chain for 65" boom (84 pitches) order one Ref. 1 and three Ref. 2. For complete digging chain for 86" boom (101 pitches) order one Ref. 1, four Ref. 2, three Ref. 3 and one Ref. 4.

1шт.

4

H227850

LINK

HALF LINK, Includes: Ref. 5

1шт.

5

H227868

PIN

CONNECTOR PIN

1шт.

Part of Refs. 1 - 3

1шт.

6

H585927

CENTER LEFT TOOTH ASM GROUP, Includes: Ref. 7 - 11

1шт.

7

H251371

TOOTH

DIGGING TOOTH - left

1шт.

8

H213496

SPACER

TUBULAR SPACER

2шт.

9

H251504

SPACER

FLAT SPACER (1/2")

1шт.

10

H711473

BOLT

HHCS (5/8 x 4 - NC)

2шт.

Part of Refs. 79 - 84

1шт.

11

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8 NC - lock)

2шт.

Part of Refs. 79 - 84

1шт.

12

H585935

SPARE PART

CENTER RIGHT TOOTH ASM GROUP, Includes: Ref. 13 - 17

1шт.

13

H251389

TOOTH

DIGGING TOOTH - right

1шт.

14

H213496

SPACER

TUBULAR SPACER

2шт.

15

H251504

SPACER

FLAT SPACER (1/2")

1шт.

16

H711473

BOLT

HHCS (5/8 x 4 - NC)

2шт.

17

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8 NC - lock)

2шт.

18

H586040

ASSEMBLY

6" LEFT TOOTH ASM GROUP, Includes: Ref. 19 - 22

1шт.

19

H251371

TOOTH

DIGGING TOOTH - left

1шт.

20

H251496

SPACER

TUBULAR SPACER

2шт.

21

H711481

BOLT

HHCS (5/8 x 4-1/4 - NC)

2шт.

22

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8 NC - lock)

2шт.

23

H586057

ASSEMBLY

6" RIGHT TOOTH ASM GROUP, Includes: Ref. 24 - 27

1шт.

24

H251389

TOOTH

DIGGING TOOTH - right

1шт.

25

H251496

SPACER

TUBULAR SPACER

2шт.

26

H711481

BOLT

HHCS (5/8 x 4-1/4 - NC)

2шт.

27

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8 NC - lock)

2шт.

28

H586065

8" LEFT TOOTH ASM GROUP, Includes: Ref. 29 - 34

1шт.

29

H251371

TOOTH

DIGGING TOOTH - left

1шт.

30

H251496

SPACER

TUBULAR SPACER

2шт.

31

H138990

SPACER

FLAT SPACER (5/16")

1шт.

32

H251504

SPACER

FLAT SPACER (1/2")

1шт.

33

H711515

BOLT

HHCS (5/8 x 5 - NC)

2шт.

34

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8 NC - lock)

2шт.

35

H586073

8" RIGHT TOOTH ASM GROUP, Includes: Ref. 36 - 41

1шт.

36

H251389

TOOTH

DIGGING TOOTH - right

1шт.

37

H251496

SPACER

TUBULAR SPACER

2шт.

38

H138990

SPACER

FLAT SPACER (5/16")

1шт.

39

H251504

SPACER

FLAT SPACER (1/2")

1шт.

40

H711515

BOLT

HHCS (5/8 x 5 - NC)

2шт.

41

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8 NC - lock)

2шт.

42

H586099

10" TOOTH ASM GROUP, Includes: Ref. 43 - 48

1шт.

43

H251371

TOOTH

DIGGING TOOTH - left

1шт.

44

H251389

TOOTH

DIGGING TOOTH - right

1шт.

45

H227660

BRACKET

TOOTH BRACKET (10")

1шт.

46

H251504

SPACER

FLAT SPACER (1/2")

2шт.

47

H711630

BOLT

HHCS (5/8 x 8 - NC)

2шт.

48

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8 NC - lock)

2шт.

49

H586107

12" TOOTH ASM GROUP, Includes: Ref. 50 - 55

1шт.

50

H251371

TOOTH

DIGGING TOOTH - left

1шт.

51

H251389

TOOTH

DIGGING TOOTH - right

1шт.

52

H227678

BRACKET

TOOTH BRACKET (12")

1шт.

53

H251504

SPACER

FLAT SPACER (1/2")

2шт.

54

H711713

BOLT

HHCS (5/8 x 10 - NC)

2шт.

55

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8 NC - lock)

2шт.

56

H586115

14" TOOTH ASM GROUP, Includes: Ref. 57 - 62

1шт.

57

H251371

TOOTH

DIGGING TOOTH - left

1шт.

58

H251389

TOOTH

DIGGING TOOTH - right

1шт.

59

H227686

BRACKET

TOOTH BRACKET - 14"

1шт.

60

H251504

SPACER

FLAT SPACER (1/2")

2шт.

61

H756031

BOLT

HHCS (5/8 x 12 - NC)

2шт.

62

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8 NC - lock)

2шт.

63

H586123

16" TOOTH ASM GROUP, Includes: Ref. 64 - 70

1шт.

64

H251371

TOOTH

DIGGING TOOTH - left

1шт.

65

H251389

TOOTH

DIGGING TOOTH - right

1шт.

66

H572743

BRACKET

TOOTH BRACKET - 16"

1шт.

67

H251504

SPACER

FLAT SPACER (1/2")

2шт.

68

H711465

BOLT

HHCS (5/8 x 3-3/4 - NC)

2шт.

69

H711382

BOLT

HHCS (5/8 x 1-3/4 - NC)

4шт.

70

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8 NC - lock)

6шт.

71

H586131

18" TOOTH ASM GROUP, Includes: Ref. 72 - 78

1шт.

72

H251371

TOOTH

DIGGING TOOTH - left

1шт.

73

H251389

TOOTH

DIGGING TOOTH - right

1шт.

74

H572750

BRACKET

TOOTH BRACKET - 18"

1шт.

75

H251504

SPACER

FLAT SPACER (1/2")

2шт.

76

H711465

BOLT

HHCS (5/8 x 3-3/4 - NC)

2шт.

77

H711382

BOLT

HHCS (5/8 x 1-3/4 - NC)

4шт.

78

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8 NC - lock)

6шт.

79

H573063

7" DIRT DRAG

1шт.

Includes: two each of Refs. 10 and 11

1шт.

80

H573071

X

9" DIRT DRAG

1шт.

Includes: two each of Refs. 10 and 11

1шт.

81

H573089

11" DIRT DRAG

1шт.

Includes: two each of Refs. 10 and 11

1шт.

82

H573097

BOLT (SPREADER)

13" DIRT DRAG

1шт.

Includes: two each of Refs. 10 and 11

1шт.

83

H573105

15" DIRT DRAG

1шт.

Includes: two each of Refs. 10 and 11

1шт.

84

H573113

17" DIRT DRAG

1шт.

Includes: two each of Refs. 10 and 11

1шт.

H234195

AXLE PIN

PIN keeper

1шт.
