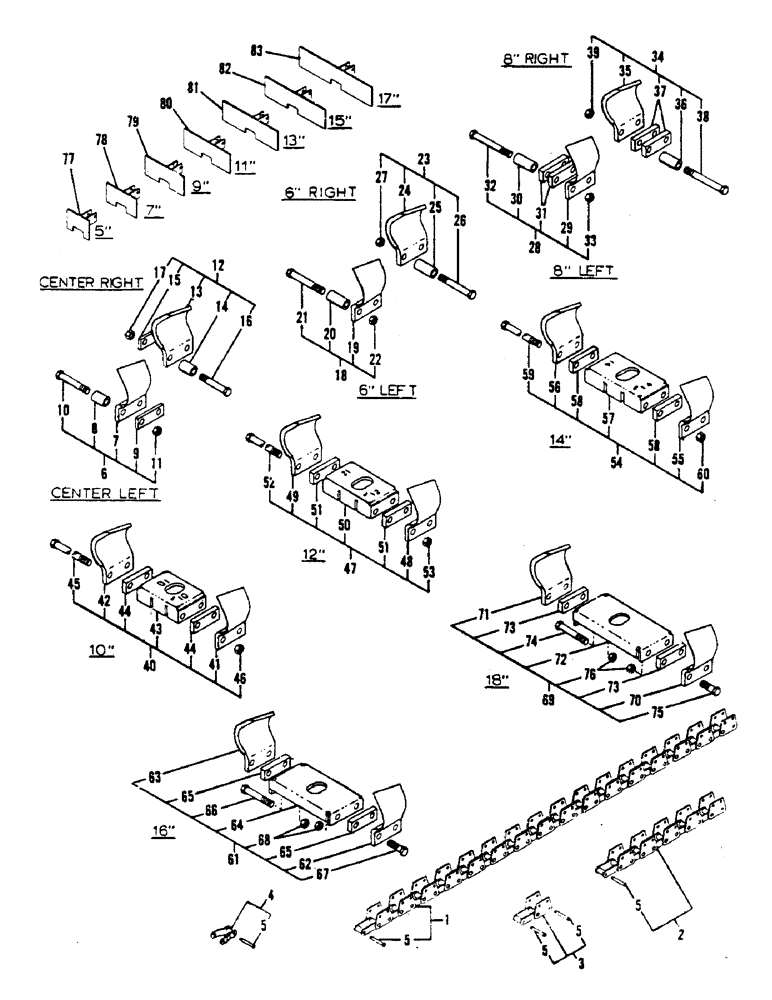

Запчасти Case 1000 (40) - HEAVY-DUTY SINGLE CHAIN, DIGGING TEETH, DIRT DRAGS

1

H601328

CHAIN (CE)

DIGGING CHAIN - 57 pitch, Includes: Ref. 5

1шт.

For complete digging chain for 52" B boom (79 pitches) order one Ref. 1, two Ref. 2, and one Ref. 3. For complete digging chain for 65" boom (89 pitches) order one Ref. 1, three Ref.2, and one Ref. 3. For complete digging chain for 86" boom (107 pitches) order one Ref. 1 and five Ref. 2

1шт.

2

H601336

CHAIN (CE)

DIGGING CHAIN - 10 pitch, Includes: Ref. 5

1шт.

For complete digging chain for 52" B boom (79 pitches) order one Ref. 1, two Ref. 2, and one Ref. 3. For complete digging chain for 65" boom (89 pitches) order one Ref. 1, three Ref.2, and one Ref. 3. For complete digging chain for 86" boom (107 pitches) order one Ref. 1 and five Ref. 2

1шт.

3

H601344

LINK

DIGGING CHAIN - 2 pitch, Includes: Ref. 5

1шт.

For complete digging chain for 52" B boom (79 pitches) order one Ref. 1, two Ref. 2, and one Ref. 3. For complete digging chain for 65" boom (89 pitches) order one Ref. 1, three Ref.2, and one Ref. 3. For complete digging chain for 86" boom (107 pitches) order one Ref. 1 and five Ref. 2

1шт.

4

H283671

DRAG LINK

HALF LINK, Includes: Ref. 5

1шт.

For complete digging chain for 52" B boom (79 pitches) order one Ref. 1, two Ref. 2, and one Ref. 3. For complete digging chain for 65" boom (89 pitches) order one Ref. 1, three Ref.2, and one Ref. 3. For complete digging chain for 86" boom (107 pitches) order one Ref. 1 and five Ref. 2

1шт.

5

H283663

AXLE PIN

CONNECTOR PIN

1шт.

Part of Refs. 1 - 4

1шт.

6

H586149

ASSEMBLY

CENTER LEFT TOOTH ASM GROUP, Includes: Ref. 7 - 9

1шт.

7

H251371

TOOTH

DIGGING TOOTH - left

1шт.

8

H213496

SPACER

TUBULAR SPACER

2шт.

9

H138990

SPACER

FLAT SPACER (5/16")

1шт.

10

H711457

BOLT

HHCS (5/8 x 3-1/2" - NC)11

2шт.

Part of Refs. 77 - 83

1шт.

11

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8 NC - lock)

2шт.

Part of Refs. 77 - 83

1шт.

12

H586156

TOOTH

CENTER RIGHT TOOTH ASM GROUP, Includes: Ref. 13 - 17

1шт.

13

H251389

TOOTH

DIGGING TOOTH - right

1шт.

14

H213496

SPACER

TUBULAR SPACER

2шт.

15

H138990

SPACER

FLAT SPACER (5/16)

1шт.

16

H711457

BOLT

HHCS (5/8 x 3-1/2 - NC)

2шт.

17

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8NC - lock)

2шт.

18

H585729

6" LEFT TOOTH ASM GROUP, Includes: Ref. 19 - 22

1шт.

19

H251371

TOOTH

DIGGING TOOTH - left

1шт.

20

H138982

SPACER

TUBULAR SPACER

2шт.

21

H711473

BOLT

HHCS (5/8 x 4 - NC)

2шт.

22

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8NC - lock)

2шт.

23

H585737

6" RIGHT TOOTH ASM GROUP, Includes: Ref. 24 - 27

1шт.

24

H251389

TOOTH

DIGGING TOOTH - right

1шт.

25

H138982

SPACER

TUBULAR SPACER

2шт.

26

H711473

BOLT

HHCS (5/8 x 4 - NC)

2шт.

27

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8 NC - lock)

2шт.

28

H585745

8" LEFT TOOTH ASM GROUP, Includes: Ref. 29 - 33

1шт.

29

H251371

TOOTH

DIGGING TOOTH - left

1шт.

30

H138982

SPACER

TUBULAR SPACER

2шт.

31

H251504

SPACER

FLAT SPACER

2шт.

32

H711515

BOLT

HHCS (5/8 x 5 - NC)

2шт.

33

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8 NC - lock)

2шт.

34

H585752

8" RIGHT TOOTH ASM GROUP, Includes: Ref. 35 - 39

1шт.

35

H251389

TOOTH

DIGGING TOOTH - right

1шт.

36

H138982

SPACER

TUBULAR SPACER

2шт.

37

H251504

SPACER

FLAT SPACER

2шт.

38

H711515

BOLT

HHCS (5/8 x 5 - NC)

2шт.

39

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8 NC - lock)

2шт.

40

H585760

10" TOOTH ASM GROUP, Includes: Ref. 41 - 46

1шт.

41

H251371

TOOTH

DIGGING TOOTH - left

1шт.

42

H251389

TOOTH

DIGGING TOOTH - right

1шт.

43

H135335

BRACKET

TOOTH BRACKET (10")

1шт.

44

H251504

SPACER

FLAT SPACER (1/2")

2шт.

45

H711630

BOLT

HHCS (5/8 x 8 - NC)

2шт.

46

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8 NC - lock)

2шт.

47

H585778

12" TOOTH ASM GROUP, Includes: Ref. 48 - 53

1шт.

48

H251371

TOOTH

DIGGING TOOTH - left

1шт.

49

H251389

TOOTH

DIGGING TOOTH - right

1шт.

50

H148551

BRACKET

TOOTH BRACKET (12")

1шт.

51

H251504

SPACER

FLAT SPACER (1/2")

2шт.

52

H711713

BOLT

HHCS (5/8 x 10 - NC)

2шт.

53

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8 NC - lock)

2шт.

54

H585786

14" TOOTH ASM GROUP, Includes: Ref. 55 - 60

1шт.

55

H251371

TOOTH

DIGGING TOOTH - left

1шт.

56

H251389

TOOTH

DIGGING TOOTH - right

1шт.

57

H135590

TOOTH

BRACKET (14")

1шт.

58

H251504

SPACER

FLAT SPACER (1/2")

2шт.

59

H756031

BOLT

HHCS (5/8 x 12 - NC)

2шт.

60

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8NC - lock)

2шт.

61

H585794

16" TOOTH ASM GROUP, Includes: Ref. 62 - 68

1шт.

62

H251371

TOOTH

DIGGING TOOTH - left

1шт.

63

H251389

TOOTH

DIGGING TOOTH - right

1шт.

64

H543892

TOOTH

BRACKET - 16"

1шт.

65

H251504

SPACER

FLAT SPACER (1/2")

2шт.

66

H711457

BOLT

HHCS (5/8 x 3-1/2 NC)

2шт.

67

H711739

BOLT

HHCS (5/8 x 1-3/4 NC)

4шт.

68

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8 NC - lock)

6шт.

69

H585802

18" TOOTH ASM GROUP, Includes: Ref. 70 - 76

1шт.

70

H251371

TOOTH

DIGGING TOOTH - left

1шт.

71

H251389

TOOTH

DIGGING TOOTH - right

1шт.

72

H543918

TOOTH

BRACKET

1шт.

73

H251504

SPACER

FLAT SPACER (1/2")

2шт.

74

H711457

BOLT

HHCS (5/8 x 3-1/2" NC)

2шт.

75

H711739

BOLT

HHCS (5/8 x 1-3/4 NC)

4шт.

76

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8 NC - lock)

6шт.

77

H544429

SPARE PART

5" DIRT DRAG

1шт.

Includes: two each of Refs. 10 and 11

1шт.

78

H544437

LINK

7" DIRT DRAG

1шт.

Includes: two each of Refs. 10 and 11

1шт.

79

H544445

X

9" DIRT DRAG

1шт.

Includes: two each of Refs. 10 and 11

1шт.

80

H544452

X

11" DIRT DRAG

1шт.

Includes: two each of Refs. 10 and 11

1шт.

81

H544460

SPARE PART

13" DIRT DRAG

1шт.

Includes: two each of Refs. 10 and 11

1шт.

82

H544478

X

15" DIRT DRAG

1шт.

Includes: two each of Refs. 10 and 11

1шт.

83

H544486

SPARE PART

17" DIRT DRAG

1шт.

Includes: two each of Refs. 10 and 11

1шт.

H234195

AXLE PIN

PIN keeper

1шт.
