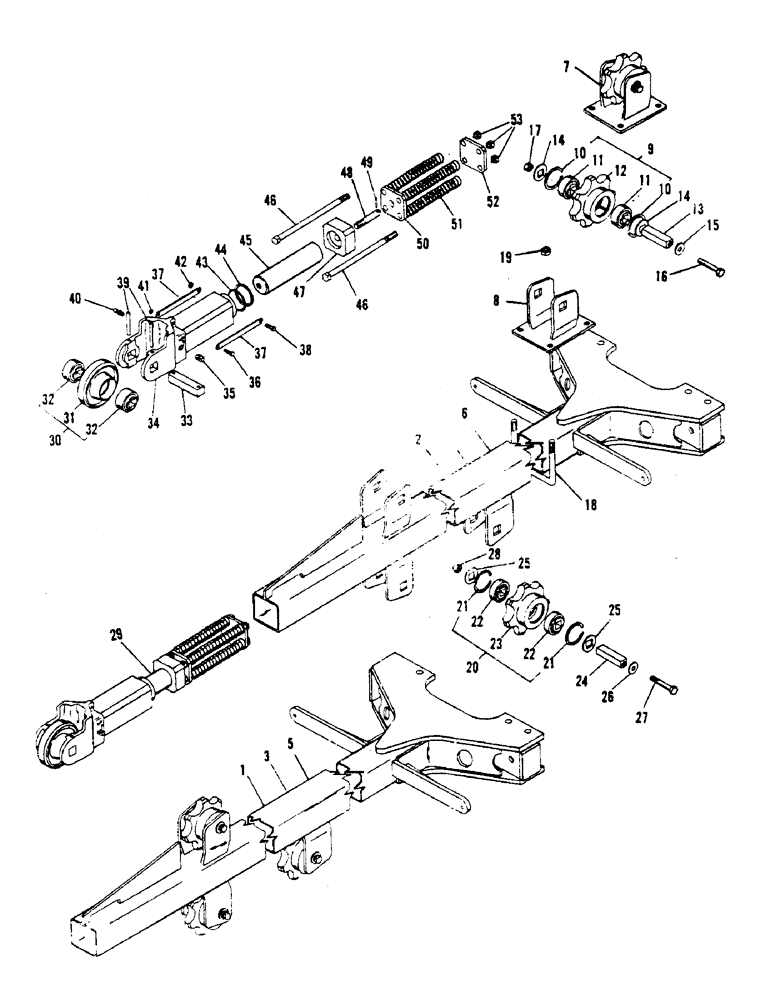

Запчасти Case 1000 (36) - SINGLE CHAIN BOOMS, BOOM END

1

H577213

BOOM

& SPROCKET ASM - 52" boom (Includes: Refs. 2 and 7 - 28)

1шт.

2

H577189

BOOM

- 52"

1шт.

3

H577221

BOOM & SPROCKET ASM - 65" boom (Includes: Refs. 4 and 7 - 28)

1шт.

4

H577197

BOOM

- 65"

1шт.

5

H577239

BOOM & SPROCKET ASM - 86" boom, Includes: Ref. 6 - 17

1шт.

6

H577205

BOOM

- 86"

1шт.

7

H544593

DRIVE SPROCKET

MOUNTING BRACKET & SPROCKET ASM, Includes: Ref. 8 - 12

1шт.

8

H544585

BRACKET

MOUNTING BRACKET

1шт.

9

H544171

SPROCKET ASSY.

IDLER SPROCKET ASM, Includes: Ref. 10 - 12

1шт.

10

H33837

RING

RETAINING RING

2шт.

11

H747139

BALL BEARING

BEARING

2шт.

12

H132761

DRIVE SPROCKET

SPROCKET

1шт.

13

H251025

BOOM

SQUARE SHAFT

1шт.

When replacing square shaft on units with internally threaded shaft, order idler shaft kit H584896.

1шт.

14

H136663

SPACER

2шт.

15

H738658

WASHER

FLAT WASHER (5/8")

2шт.

16

H711531

SCREW

HHCS (5/8" x 5-1/2" NC)

1шт.

17

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8" NC - lock)

1шт.

18

H81372

HARDWARE

U-BOLT

2шт.

19

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8" NC - lock)

4шт.

20

H544171

SPROCKET ASSY.

IDLER SPROCKET ASM, Includes: Ref. 21 - 23

3шт.

21

H33837

RING

RETAINING RING

2шт.

22

H747139

BALL BEARING

BEARING

2шт.

23

H132761

DRIVE SPROCKET

SPROCKET

1шт.

24

H251025

BOOM

SQUARE SHAFT

3шт.

When replacing square shaft on units with internally threaded shaft, order idler shaft kit H584896.

1шт.

25

H136663

SPACER

6шт.

26

H738658

WASHER

FLAT WASHER (5/8")

6шт.

27

H711531

SCREW

HHCS (5/8" x 5-1/2" NC)

3шт.

28

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8" NC - lock)

3шт.

29

H530808

BOOM END ASM, Includes: Ref. 30 - 53

1шт.

30

H508168

ROLLER BEARING

OUTER ROLLER ASM, Includes: Ref. 31 and 32

1шт.

Some early units had a sprocket (H544171) instead of a roller.

1шт.

31

H71779

ROLLER

OUTER ROLLER

1шт.

32

H747139

BALL BEARING

BEARING

2шт.

33

H80838

SHAFT

SQUARE SHAFT

1шт.

34

H114553

CASTING

BOOM END CASTING

1шт.

35

H114728

PLUG

BLEED PLUG

1шт.

36

H709477

BOLT

HHCS (5/16 x 1-1/2 NC)

1шт.

37

H114934

DRAG LINK

LINK - boom end retainer

2шт.

38

H709873

BOLT

HHCS (3/8 x 1-1/2)

1шт.

39

H742866

PIN

ROLL PIN (3/8 x 2-1/2)

2шт.

40

H745398

FITTING

GREASE FITTING

1шт.

41

230-4215

NUT,5/16"-18, GA

NUT (5/16 NC - lock)

1шт.

42

H738013

LOCK NUT

NUT (3/8 NC - lock)

1шт.

43

H745430

O-RING,59.69 mm ID

O RING

1шт.

44

H745711

WASHER

BACKUP WASHER

1шт.

45

H114512

PLUNGER

ROD

1шт.

46

H90787

BOLT

SPECIAL BOLT

4шт.

47

H114520

BLOCK

BEARING BLOCK

1шт.

48

H114538

STUD

1шт.

49

H742395

ROLL PIN

(1/4 x 1-1/2)

1шт.

50

H114546

GUIDE

PLATE

1шт.

51

H101998

VALVE SPRING

SPRING

4шт.

52

H114546

GUIDE

PLATE

1шт.

53

H737494

LOCK NUT

NUT (5/8" NC - lock)

4шт.
