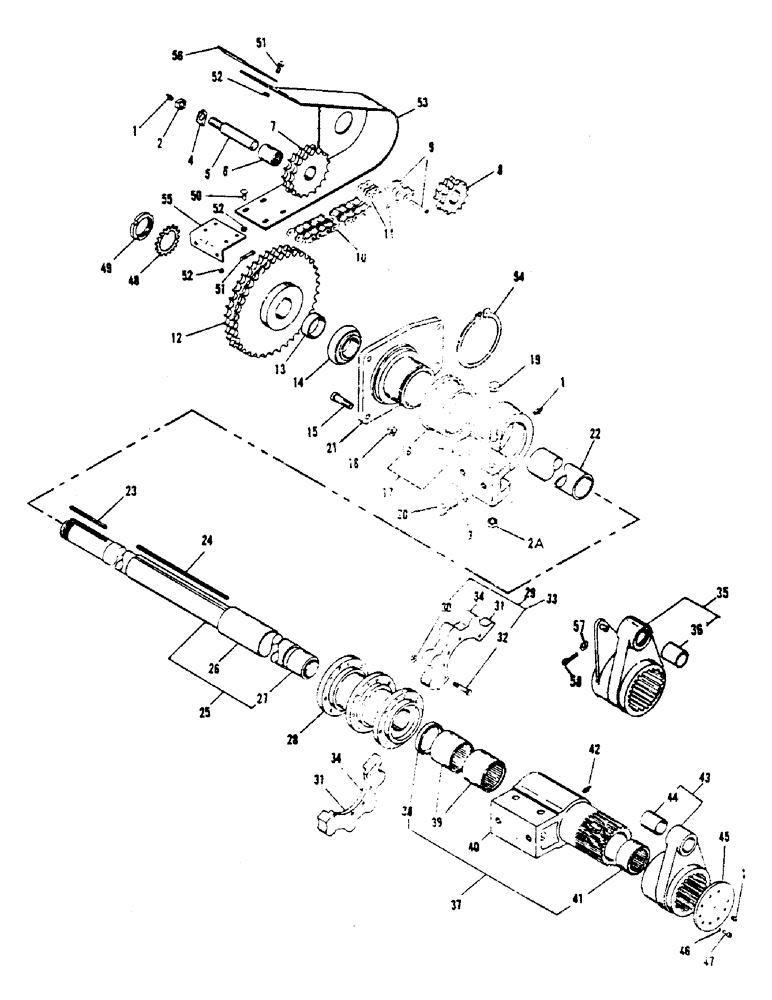

Запчасти Case 1000 (32) - DIGGING CHAIN DRIVE

1

H745257

FITTING

GREASE FITTING

2шт.

2

H755819

NUT

(3/4 NC - Elasco)

1шт.

2a

H738203

LOCK NUT

NUT (3/4 NF - lock)

2шт.

3

H739268

WASHER

LOCK WASHER (3/4)

2шт.

4

H37770

WASHER

- special

1шт.

5

H37747

SHAFT

IDLER SHAFT

1шт.

6

H748103

NEEDLE BEARING

BEARING - idler shaft

1шт.

7

H37754

DRIVE SPROCKET

SPROCKET - idler

1шт.

8

H45054

SPROCKET ASSY.

SPROCKET - drive

1шт.

9

H748350

DRAG LINK

HALF LINK

1шт.

10

H753236

CHAIN (AG)

DRIVE CHAIN - 112 pitches Ford engines, Includes: Ref. 11

1шт.

10

H753939

DRIVE CHAIN

- 105 pitches Wisconsin engines, Includes: Ref. 11

1шт.

11

H750992

CONNECTOR, ELEC

CONNECTOR LINK

1шт.

12

H58693

DRIVE SPROCKET

SPROCKET, driven - 45 tooth

1шт.

12

H37010

SPROCKET, driven - 36 tooth (Optional, high speed)

1шт.

13

H296319

SPACER

1шт.

14

H747170

BALL BEARING

BEARING

1шт.

15

H711382

BOLT

HHCS (5/8 x 1-3/4 NC)

4шт.

16

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8" NC - lock)

4шт.

17

H575621

BOOM

MOUNTING CASTING ASM - right, Includes: Ref. 18

1шт.

18

H36905

BUSHING

1шт.

19

H112557

BOLT

HHCS (3/4 x 6-1/2 NF)

2шт.

20

H720649

BOLT

HHCS (3/4 x 1-1/2 NC)

2шт.

21

H230367

BLOCK

BEARING BLOCK

1шт.

22

H178491

FUNNEL

SLEEVE - spacer

1шт.

23

H37002

KEY

(1/2 square x 3)

1шт.

24

H36962

KEY

(1/2 square x 7-7/8)

1шт.

25

H554352

SHAFT

DRIVE SHAFT ASM, Includes: Ref. 26 and 27

1шт.

26

H70268

BEARING

RACE & SEAT SEAL

1шт.

27

H748152

RING RACE

BEARING RACE

1шт.

28

H36970

HUB CAP

SPROCKET HUB

1шт.

29

H917674

SPROCKET SET (Heavy duty chain), Includes: Ref. 30 and 31

1шт.

Two sprocket sets required for double chain lines.

1шт.

30

H746750

LOCK NUT

NUT (3/8 NF - lock)

10шт.

31

H37168

DRIVE SPROCKET

SPLIT SPROCKET SET

1шт.

32

H723262

BOLT

HHCS (3/8 x 1-3/4 NF - special)

10шт.

33

H917682

SPROCKET ASSY.

SPROCKET SET (Extra - heavy duty chain) Includes: Refs. 30, 32 and 34

1шт.

Two sprocket sets required for double chain lines.

1шт.

H917682, not set up in GPN. In place of this p/n, order (1) H220509, (10) 114-254, and (10) 232-4616

1шт.

34

H220509

DRIVE SPROCKET

SPLIT SPROCKET SET

1шт.

35

H586438

CRANK

ARM ASM, Includes: Ref. 36

1шт.

Spec. no. P16WS07, P16FG08, P16FD09, and up.

1шт.

36

H217190

BUSHING

1шт.

37

H573311

BOOM

PIVOT CASTING ASM, Includes: Ref. 38 - 42

1шт.

38

H749093

OIL SEAL

GREASE SEAL

1шт.

39

H748137

NEEDLE BEARING

BEARING

2шт.

40

H77800

BOOM

PIVOT CASTING

1шт.

41

H748145

BEARING

1шт.

42

H745257

FITTING

GREASE FITTING

1шт.

43

H568683

CRANK ARM CASTING, Includes: Ref. 44 - 58

1шт.

Up to spec. no. P16WS07, P16FG08, P16FD09 and up.

1шт.

44

H217190

BUSHING

1шт.

45

H37028

PLATE ASSY.

CAP PLATE

1шт.

46

H739185

WASHER

LOCK WASHER (#10)

10шт.

47

H750281

HSHCS (#10-24 x 5/8)

10шт.

48

H748756

WASHER

BEARING RETAINER WASHER

1шт.

49

H748715

NUT

BEARING RETAINER NUT

1шт.

50

H727693

BOLT

SNCB (3/8 x 1 NC)

2шт.

51

H709857

BOLT

HHCS (3/8 x 1 NC) 6 req'd on Ford installations

4шт.

52

H738013

LOCK NUT

NUT (3/8 NC - lock)

6шт.

53

H525303

CHAIN GUARD

1шт.

54

H755405

SEGMENT

SNAP RING

1шт.

55

H129379

ANGLE - chain guard mtg

1шт.

56

H129361

ENTENSION - chain guard (Ford engines)

1шт.

57

H738468

WASHER

FLAT WASHER (3/8)

1шт.

Spec. no. P16WS07, P16FG08, P16FD09, and up.

1шт.

58

H740266

SPLIT PIN/SAFETY PIN

COTTER PIN (3/16 x 3/4)

1шт.

Spec. no. P16WS07, P16FG08, P16FD09, and up.

1шт.
