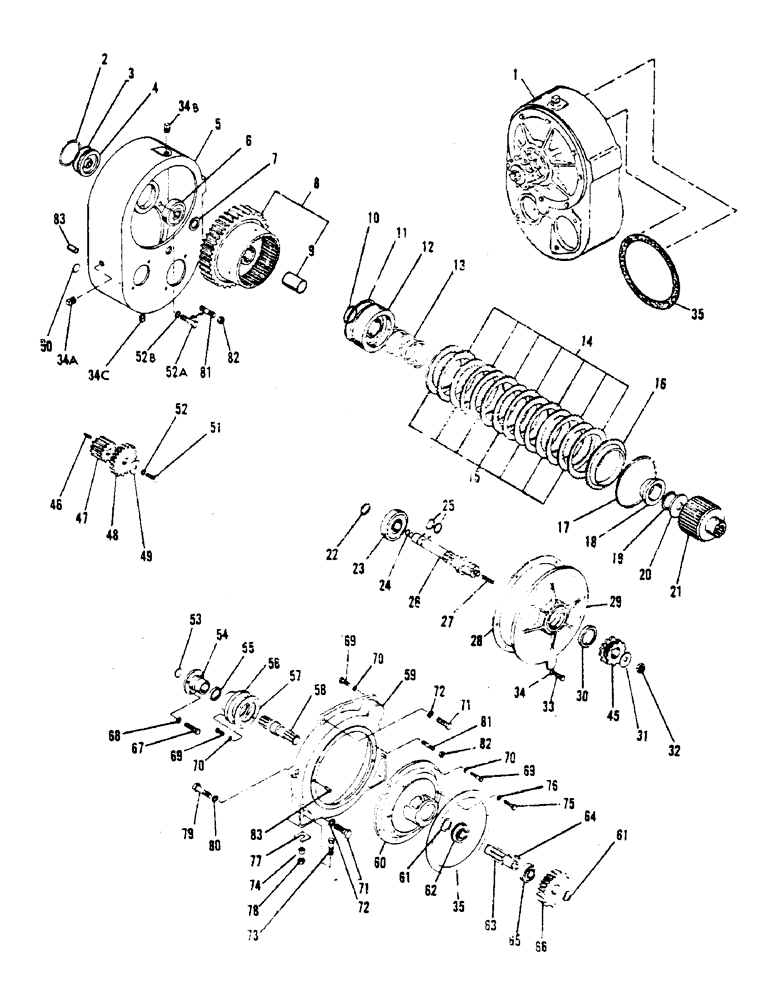

Запчасти Case 1000 (30) - P.T.O. CLUTCH ASSEMBLY

1

H591032

TRANSMISSION

P.T.O. CLUTCH ASM, Includes: Ref. 2 - 34C

1шт.

2

H76356

RING, SNAP

SNAP RING

1шт.

3

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

O RING Replaces H76349

1шт.

4

H76307

FITTING

PRESSURE FITTING

1шт.

5

H262949

HOUSING

GEAR HOUSING

1шт.

6

H750570

BEARING

- output

1шт.

7

H76315

SPACER

1шт.

8

H566869

GEAR WHEEL

TRENCHER GEAR & BUSHING ASM, Includes: Ref. 9

1шт.

9

H167072

BUSHING

1шт.

10

H66902

O-RING,0.21" Thk x 2.475" ID, -333, Cl 5, 75 Duro

O RING

1шт.

11

H66894

O-RING

PISTOL SEAL

1шт.

12

H66852

PISTON

1шт.

13

H66910

VALVE SPRING

SPRING - piston

1шт.

14

H66878

CLUTCH ASSEMBLY

CLUTCH PLATE - driver

7шт.

15

H66951

CLUTCH PLATE

- driven

7шт.

16

H167122

GEAR

CLUTCH BACKER PLATE

1шт.

17

H66886

RING, SNAP

SNAP RING

1шт.

18

H66928

RETAINER

SPRING RETAINER

1шт.

19

H66936

SNAP RING,#250, 2.366", Ext Spiral

- spring retainer

1шт.

20

H167106

WASHER

THRUST SPACER

1шт.

21

H95984

CLUTCH

HUB

1шт.

22

H751297

RING, SNAP

SNAP RING

1шт.

23

H747287

BEARING,50 mm ID x 130 mm OD x 31 mm

- output

1шт.

24

H744672

O-RING

O RING

1шт.

25

H66944

RING

SEAL RING

2шт.

26

H95992

SHAFT

OUTPUT SHAFT

1шт.

27

H76406

KEY

- output shaft

1шт.

28

H76265

GASKET

COVER GASKET

1шт.

29

H76224

COVER

1шт.

Up to spec. no. P16WS13, P16FG14, and P16FD15

1шт.

29

H262931

COVER ASSY

COVER

1шт.

Spec no. P16WS13, P16FG14, P16FD15, and up

1шт.

30

H76380

OIL SEAL

OIL SEAL - output

1шт.

31

H167130

WASHER

- output

1шт.

32

H66969

NUT

- output shaft

1шт.

33

H755579

BOLT

HHCS (3/8" x 1-1/8" NC)

8шт.

34

H739367

LOCK WASHER

(3/8" external star)

8шт.

34a

H749606

PIPE PLUG (1/4") oil level

1шт.

34b

H749648

PLUG

PIPE PLUG (3/4") oil fill

1шт.

34c

H196444

PLUG

DRAIN PLUG

1шт.

35

H42580

GASKET

(P.T.O. to engine or housing adapter)

1шт.

45

H45054

SPROCKET ASSY.

SPROCKET - digging chain drive

1шт.

46

H76398

KEY

- crankshaft (1/4" x 2-5/8") Common parts to Wisconsin engines.

1шт.

47

H76240

GEAR

- crankshaft, Common parts to Wisconsin engines.

1шт.

48

H76257

GEAR WHEEL

GEAR - pump drive, Common parts to Wisconsin engines.

1шт.

49

H76455

WASHER

Common parts to Wisconsin engines.

1шт.

50

H70771

PLUG

GASKET - soft plug, Common parts to Wisconsin engines.

1шт.

51

H739227

WASHER, LOCK

LOCK WASHER (7/16") Common parts to Wisconsin engines.

1шт.

52

H714717

X

HHCS (7/16" x 1-1/4" NC) Common parts to Wisconsin engines.

1шт.

52a

H711374

BOLT

HHCS (5/8" x 1-1/2" NC)

4шт.

Wisconsin engine installations up to spec. no. P16WS25.

1шт.

52b

H739250

WASHER

LOCK WASHER (5/8")

4шт.

Wisconsin engine installations up to spec. no. P16WS25.

1шт.

53

H42564

PLUG

SEAL PLUG Common parts to Ford engines.

1шт.

54

H124172

HUB CAP

DRIVE HUB Common parts to Ford engines.

1шт.

55

H749218

OIL SEAL,44.45mm ID x 63.65mm OD x 7.95mm Thk

OIL SEAL - Ford gas engines

1шт.

55

H749218

OIL SEAL,44.45mm ID x 63.65mm OD x 7.95mm Thk

OIL SEAL - Ford diesel engines

1шт.

56

H42515

RETAINER

BEARING RETAINER Common parts to Ford engines.

1шт.

57

H42572

GASKET

Common parts to Ford engines.

1шт.

58

H124263

SHAFT

- P.T.O. to engine, Common parts to Ford engines.

1шт.

59

H114181

FLYWHEEL HOUSING Common parts to Ford engines.

1шт.

60

H262956

HOUSING ADAPTER Common parts to Ford engines.

1шт.

61

H746735

RING, SNAP

SNAP RING Common parts to Ford engines.

2шт.

62

H750604

BEARING

Common parts to Ford engines.

1шт.

63

H42531

GEAR - pinion, Common parts to Ford engines.

1шт.

64

H42598

KEY

- (5/16" x 7/8") Common parts to Ford engines.

1шт.

65

H747196

BEARING

Common parts to Ford engines.

1шт.

66

H42549

GEAR

- pump drive, Common parts to Ford engines.

1шт.

67

H711036

BOLT

HHCS (9/16" x 2" NC) Common parts to Ford engines.

6шт.

68

H739243

WASHER, LOCK

LOCK WASHER (9/16") Common parts to Ford engines.

6шт.

69

H709865

BOLT

HHCS (3/8 x 1-1/4" NC) Common parts to Ford engines.

15шт.

70

H739219

LOCK WASHER

(3/8") Common parts to Ford engines.

15шт.

71

H711721

BOLT

HHCS (3/4" x 1-1/2" NC) Common parts to Ford engines.

4шт.

72

H739268

WASHER

LOCK WASHER (3/4") Common parts to Ford engines.

4шт.

73

H711390

BOLT

HHCS (5/8" x 2" NC) Common parts to Ford engines.

2шт.

74

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8" NC - lock) Common parts to Ford engines.

2шт.

75

H711382

BOLT

HHCS (5/8" x 1-3/4" NC)

4шт.

Ford engine installations up to spec. no. P16FG26, and P16FD27.

1шт.

76

H739250

WASHER

LOCKWASHER (5/8")

4шт.

Ford engine installations up to spec. no. P16FG26, and P16FD27.

1шт.

77

H231670

SHIM,.035" Thk

Engine mounting, Common parts to Ford engines .035" Thk

1шт.

78

H737775

NUT (5/8" NC - jam) Common parts to Ford engines.

2шт.

79

H711424

SCREW

HHCS (5/8" x 2-3/4" NC) Common parts to Ford engines.

4шт.

80

H739250

WASHER

LOCKWASHER (5/8") Common parts to Ford engines.

4шт.

81

H293423

STUD

4шт.

Spec. no. P16WS25, P16FG26, P16FD27 and up.

1шт.

82

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

Spec. no. P16WS25, P16FG26, P16FD27 and up.

1шт.

83

H755272

DOWEL

PIN - dowel (3/8" x 1")

1шт.

Spec. no. P16WS25, P16FG26, P16FD27 and up.

1шт.
