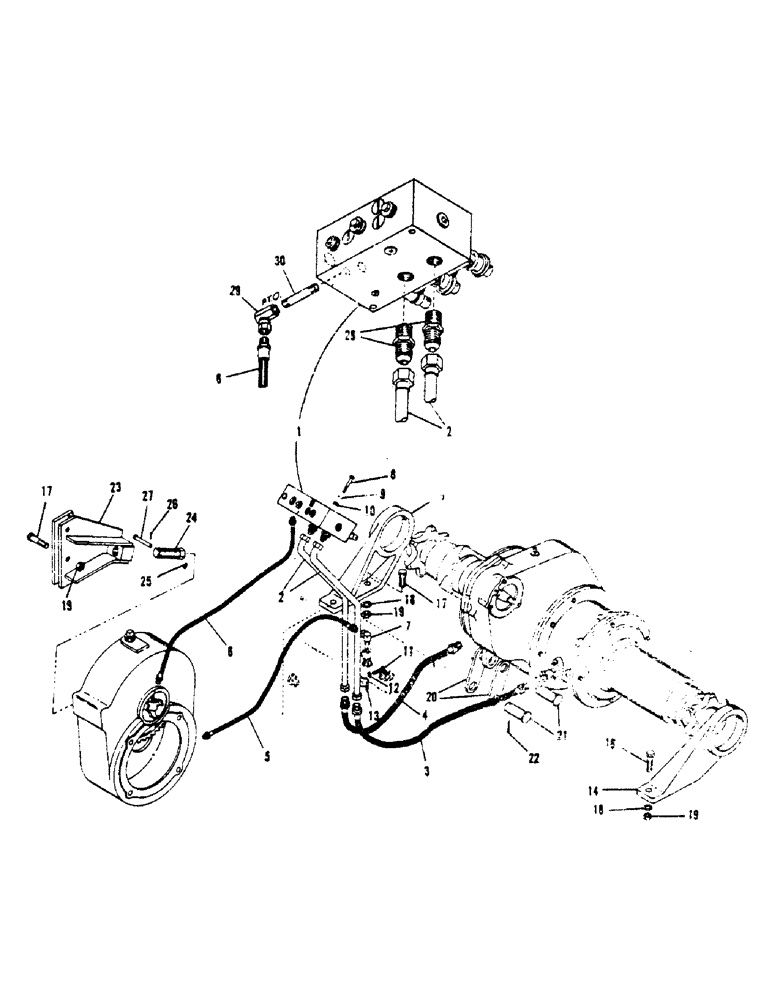

Запчасти Case 1000 (28) - HYDRAULIC LINES - P.T.O. & STEERING CIRCUIT

1

H520742

VALVE

STEERING & CLUTCH VALVE ASM (See Figure 62 for parts lists), Serial Range: -5068

1шт.

1

H576124

LOCK VALVE

STEERING & CLUTCH VALVE ASM (See Figure 62 for parts lists), Start Serial: 5068

1шт.

2

H573725

TUBE,0.625" OD x 27.937, 7.125" L

- valve to transmission

2шт.

3

H209411

HOSE ASSY.

HOSE (1/2" x 23" - 1/2 M.P. - 7/8" J.I.C. male)

1шт.

4

H229773

HOSE ASSY.

HOSE (1/2" x 21" - 1/2 M.P. - 7/8" J.I.C. male)

1шт.

5

H102350

HOSE ASSY.

HOSE (1/4" x 15" - 1/4 M.P. - both ends)

1шт.

6

H45765

HOSE,6.35 mm ID x 609.60 mm, SAE 100R3

1шт.

7

H82818

TUBE NUT

ADAPTER - 90 degrees

1шт.

8

H709550

BOLT

HHCS (5/16" x 3-1/2" NC)

2шт.

9

H738450

WASHER

FLAT WASHER (5/16")

2шт.

10

230-4215

NUT,5/16"-18, GA

NUT (5/16" NC - lock)

2шт.

11

H709469

X

HHCS (5/16" x 1-1/4" NC)

1шт.

12

H739201

WASHER

LOCK WASHER (5/16")

1шт.

13

H59345

CLAMP

TUBE CLAMP

1шт.

14

H236281

TRANSMISSION MOUNTING BRACKET - left

1шт.

15

H236299

TRANSMISSION MOUNTING BRACKET - right

1шт.

16

H711390

BOLT

HHCS (5/8" x 2" NC)

2шт.

17

H711408

BOLT

HHCS (5/8" x 2-1/4" NC)

2шт.

18

H738500

WASHER

FLAT WASHER (5/8")

4шт.

19

230-42110

LOCK NUT,5/8"-11, GA

NUT (5/8" NC - lock)

4шт.

20

H234682

TORQUE LINK

2шт.

21

H37978

AXLE PIN

CLEVIS PIN (1" x 2-1/2")

2шт.

22

H740175

PIN, SPLIT (COTTER)

COTTER PIN (5/32" x 1-3/4")

2шт.

23

H536136

P.T.O. COMPRESSION BRACKET(Ford engines)

1шт.

23

H516989

P.T.O. COMPRESSION POST BRACKET (Wisconsin engines)

1шт.

24

H100438

BOLT

COMPRESSION BOLT

1шт.

25

H738468

WASHER

FLAT WASHER (3/8" SAE)

1шт.

26

H739920

SPARE PART

COTTER PIN (1/8" x 3/4")

1шт.

27

H54395

AXLE PIN,9.47mm OD x 60.33mm L

CLEVIS PIN (3/8" x 2-1/4")

1шт.

28

H30742

ADAPTER

- straight

2шт.

29

H103168

FITTING

ADAPTER - 90 degrees

1шт.

30

H748913

NIPPLE (1/4" x 2-1/2" - pipe)

1шт.
