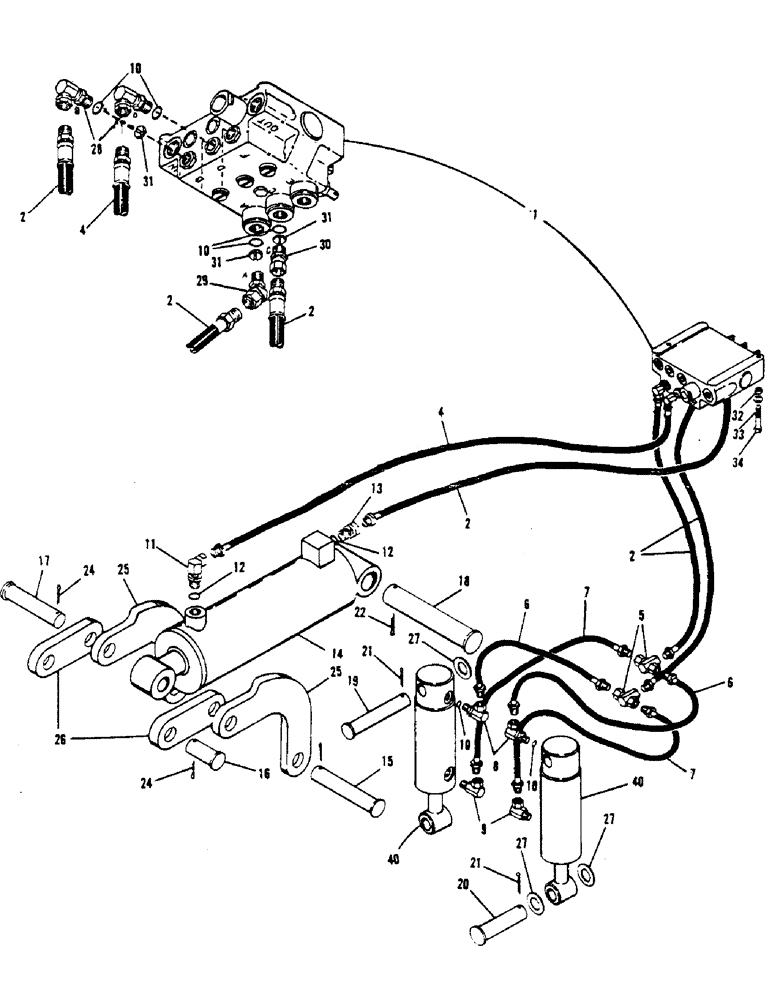

Запчасти Case 1000 (26) - HYDRAULIC LINES - BOOM & TILT CIRCUIT, (SPEC. #P16WS04, P16FG05, P16FD06 & UP)

1

H594507

LOCK VALVE

BOOM - tilt - slow speed valve asm (See Figure 64 for parts list)

1шт.

2

H133512

HOSE ASSY.

HOSE - (1/4" x 57" - 3/8" M.P. & 1/4" M.P. ends)

3шт.

4

H147223

HOSE

(1/4" x 73 - 3/8" M.P. - both ends)

1шт.

5

H133520

TEE

2шт.

6

H71068

HOSE

(1/4" x 12" - 3/8" M.P. - both ends)

2шт.

7

H46318

HOSE

(1/4' x 17 - 3/8" M.P. - both ends)

2шт.

8

H42044

ADAPTER

- 90 degrees

2шт.

9

H32714

ADAPTER

- 90 degrees

2шт.

10

H745158

O-RING

O RING

6шт.

11

218-5387

90 ELBOW,90 Degree, 3/4"-16 O-Ring x 3/8" NPSM Fem

ADAPTER - 90 degrees

1шт.

12

H745166

O-RING

O RING

2шт.

13

H52472

ADAPTER

- straight

1шт.

14

H567701

CYLINDER BLOCK

BOOM CYLINDER ASM (See Figure 66 for parts list)

1шт.

15

H218263

AXLE PIN

PIN (1-1/8" x 6-1/4")

1шт.

16

H218271

PIN

(1-1/8" x 4")

1шт.

17

H257048

PIN,28.5mm OD x 146.05mm L

(1-1/8" x 5-1/4")

1шт.

18

H218255

PIN

(1-1/2" x 8-1/2")

1шт.

19

H80440

AXLE PIN

PIN (1" x 5-7/8")

2шт.

20

H91819

CLEVIS COUPLING

PIN (1" x 4-3/8")

2шт.

21

H740522

HARDWARE

COTTER PIN (1/4" x 1-1/2")

2шт.

22

H740555

PIN, SPLIT (COTTER)

COTTER PIN (1/4" x 2")

1шт.

24

H740548

PIN

COTTER PIN (1/4" x 1-3/4")

3шт.

25

H213652

DRAG LINK

CURVED LINK

2шт.

26

H213520

DRAG LINK

STRAIGHT LINK

2шт.

27

H738534

X

FLAT WASHER (1")

3шт.

28

H91397

ADAPTER

- 90 degrees

2шт.

29

H45542

ELBOW

ADAPTER - 90 degrees

1шт.

30

H32656

TUBE NUT

ADAPTER - straight

1шт.

31

H108035

PLATE

ORIFICE PLATE (.035 dia. orifice)

3шт.

32

230-4215

NUT,5/16"-18, GA

NUT (5/16" NC - lock)

2шт.

33

H738450

WASHER

FLAT WASHER (5/16")

2шт.

34

H709501

BOLT

HHCS (5/16" x 2-1/4" NC)

2шт.

40

H505628

CYLINDER BLOCK

TILT CYLINDER ASM (See Figure 66 for parts list)

2шт.
